Saab 900 1986-1989 Control system Part 1

Group 4 Transmission, section 670

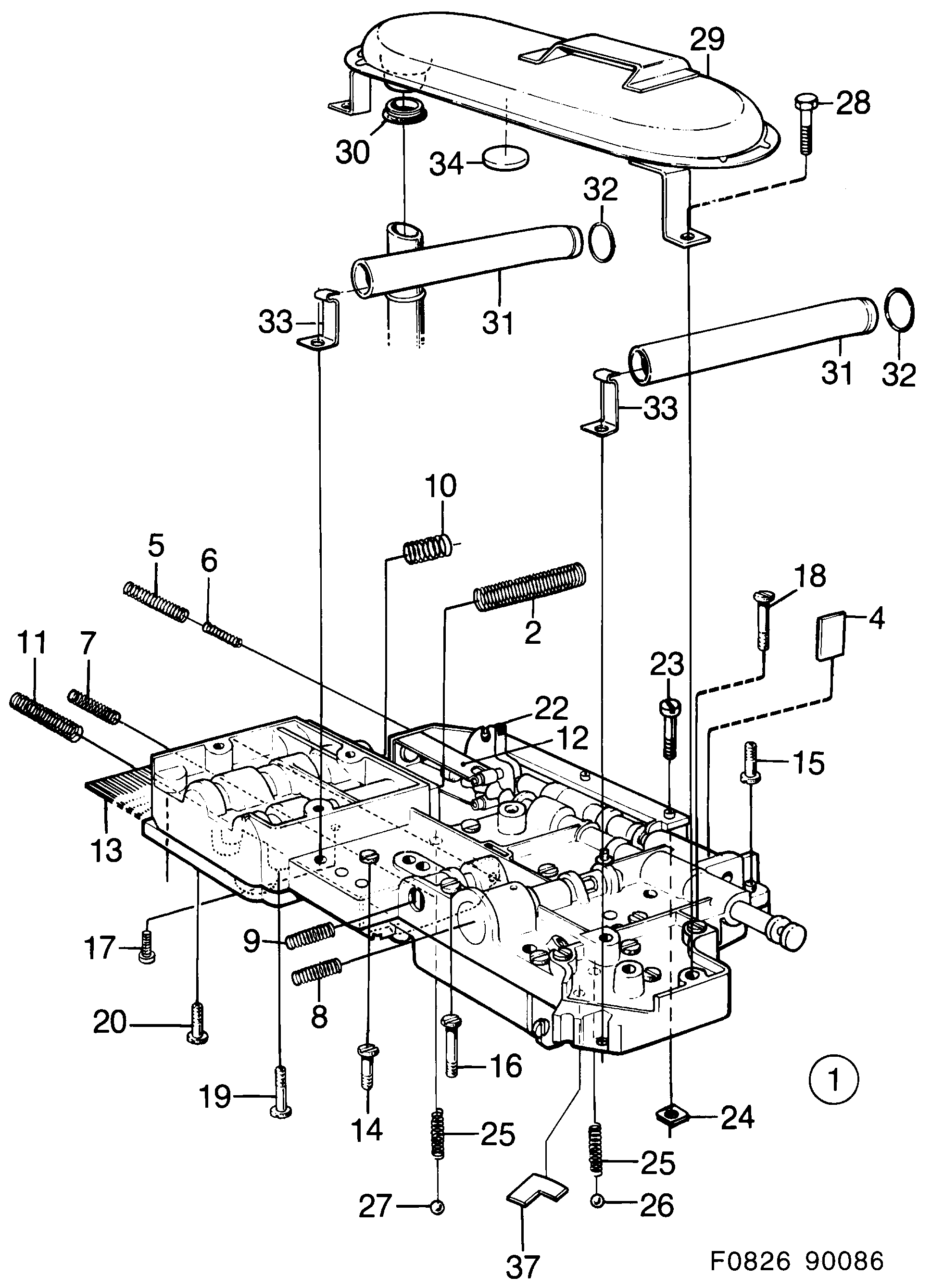

Saab 900 Control system Part 1 diagram

Pos	Article	Part No.
1	Valve housing	7542517
1	Valve housing	7542525
2	Spring	7542533
4	Stop	8707747
5	Spring	8707721
6	Spring	8707754
7	Spring	8707929
8	Spring	7542541
8	Spring	7542574
8	Spring	7542558
8	Spring	7542566
9	Spring	7542830
9	Spring	8707788
10	Spring	7542822
11	Spring	8707952
12	Bracket	7511371
13	Plate	7546252
14	Screw	8708026
15	Screw	8707887
16	Screw	7542616
17	Screw	7542624
18	Screw	8709479
22	Cam	9300286
23	Screw	9364431
24	Nut	9317439
25	Spring	7542590
26	Ball	8705691
27	Ball	7542608
28	Screw	8708695
29	Oil filter	4277455 (replaces 7544125)
30	Seal	9317348
31	Tube	9361064
32	O-ring	8705733
33	Clip	9361072
34	Magnet	8708414
37	Clip	7546690
37	Clip	7547946
	Spring kit	7542681
	Spring kit	7542699
