Saab 900 1990-1993 Transmission

Group 4 Transmission, section 650

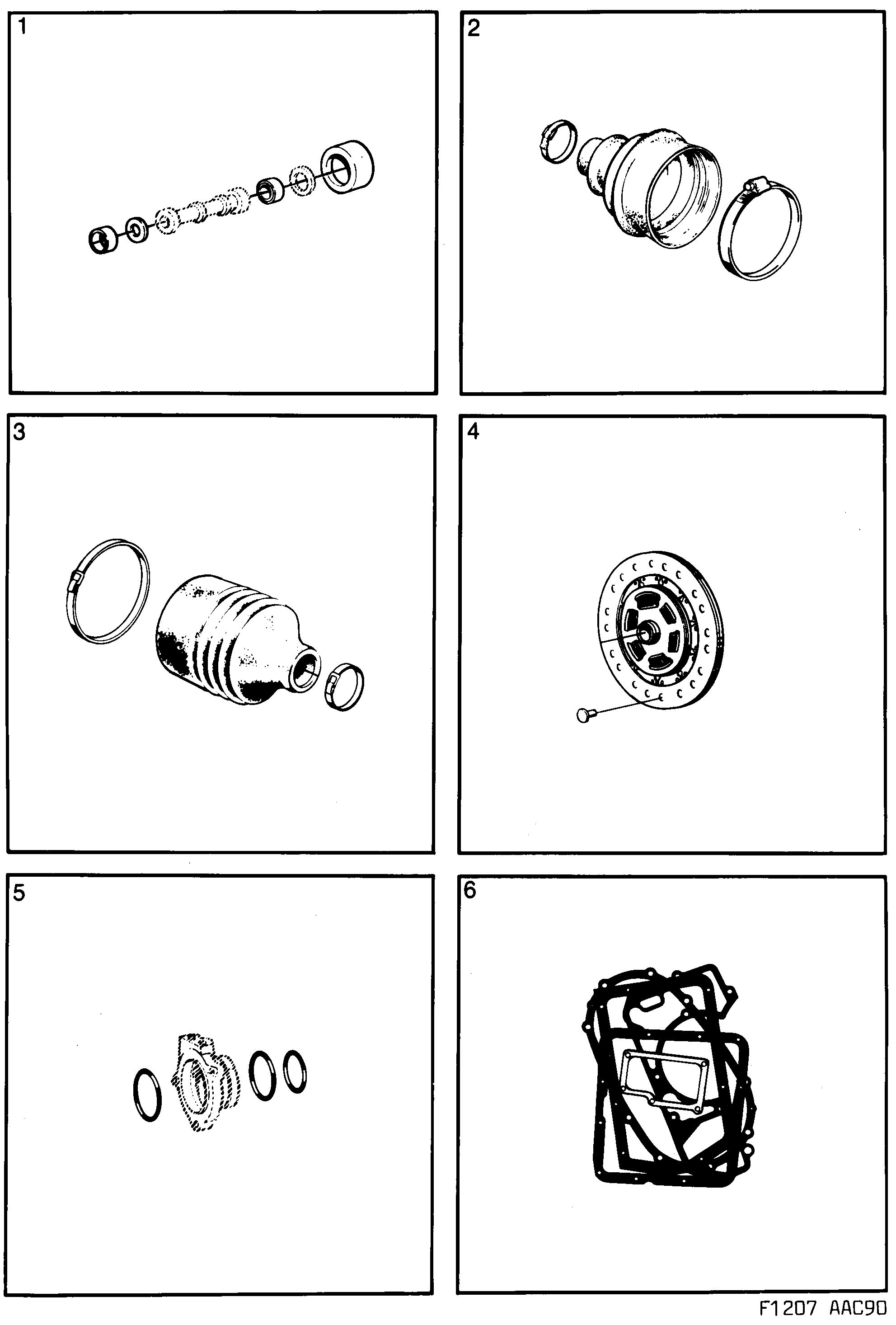

Saab 900 Transmission diagram

Pos	Article	Part No.
1	Repair kit	8993156
	Gasket	8903304
	Gasket	8945248
	Washer	7313182
	Washer	8945255
	Gasket	8940769
	Seal	7313240
2	Bellows kit	8993073
	Bellows	8941270
	Hose clamp	92150224 (replaces 7970163)
	Banding iron	7048465
	Clamp	7048473
2	Bellows kit	8993636 (replaces 8961872)
	Bellows	8955007
	Banding iron	30503497 (replaces 7167117)
3	Bellows kit	8993628
	Bellows	4002747
4	Clutch facing	8380214
	Clutch facing	8307688
	Rivet	8300469
5	Sealing kit	8781072
	O-ring	8711806
	Seal	8722118
	Seal	8722126
6	Gasket kit	9335563
	Gasket	9334780
	Seal	9335407
	Seal	9335423
	Gasket	9335456
	Washer	4118527 (replaces 8708398)
