Saab 900 1986-1989 Servos, covers, plugs

Group 4 Transmission, section 610

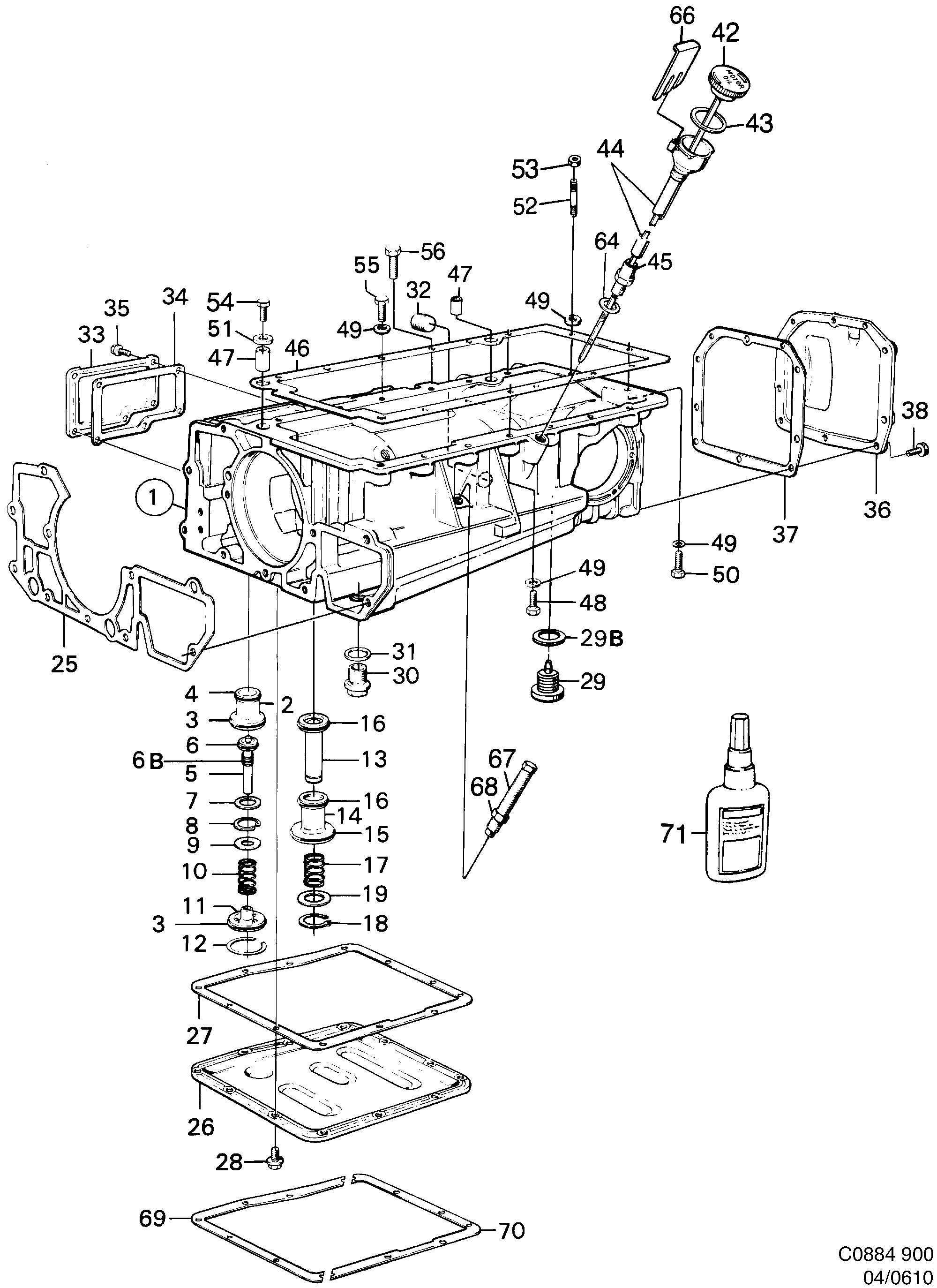

Saab 900 Servos, covers, plugs diagram

Pos	Article	Part No.
1	Transmission housing	7542277
1	Transmission housing	7542269
1	Transmission housing	7554264
2	Piston	7542293
2	Piston	7542285
2	Piston	9335738
3	O-ring	8706111
4	O-ring	8325151
5	Pivot pin	7542301
6	Seal	7542954
6B	Spring	9335753
7	Pressure plate	9335787
8	Lock ring	9335795
9	Pressure plate	9335803
10	Spring	9335811
11	Piston	9335829
12	Lock ring	9334806
13	Piston	7542319
14	Piston	7542327
15	O-ring	8709610
16	O-ring	8706129
17	Spring	7542335
18	Lock ring	9348988
19	Washer	9341330
25	Gasket	9334780
26	Oil pan	9335449
26	Oil pan	4029476
27	Gasket	9335456
27	Gasket	4029450
28	Screw	7985930 (replaces 8019903)
29	Drain plug	8717407
29B	Gasket	8717415
30	Drain plug	8731762 (replaces 8711871)
31	Gasket	8718439
32	Plug	8710857
33	Cover	9335431
34	Gasket	7542665
36	Cover	8722035
37	Gasket	8714842
37	Gasket	8725046
38	Screw	8125197
42	Dipstick	9361650
42	Dipstick	7514201
43	Ring-gland	55557303 (replaces 9361544)
44	Oil filler	9368200
45	Nipple	9361452
46	Gasket	7510241
	Flange sealant	93165267 (replaces 8781841)
47	Guide sleeve	8300725
48	Screw	8125213 (replaces 8083958)
49	Washer	92153033 (replaces 8029985)
50	Screw	55562873 (replaces 8082968)
51	Washer	7061328
52	Screw	9346388
52	Stud	8005928
53	Nut	8074106
53	Nut	8151235
54	Screw	9346354
55	Screw	9346362
56	Screw	9346370
64	Washer	9361627
66	Plate	9362542
67	Adjustment screw	8706152
68	Nut	8706160
69	Frame	4029500
70	Frame	4029518
71	Hydraulic sealant	7496284
	Gasket kit	9335563
