Saab 900 1986-1989 Converter shell Torque converter

Group 4 Transmission, section 580

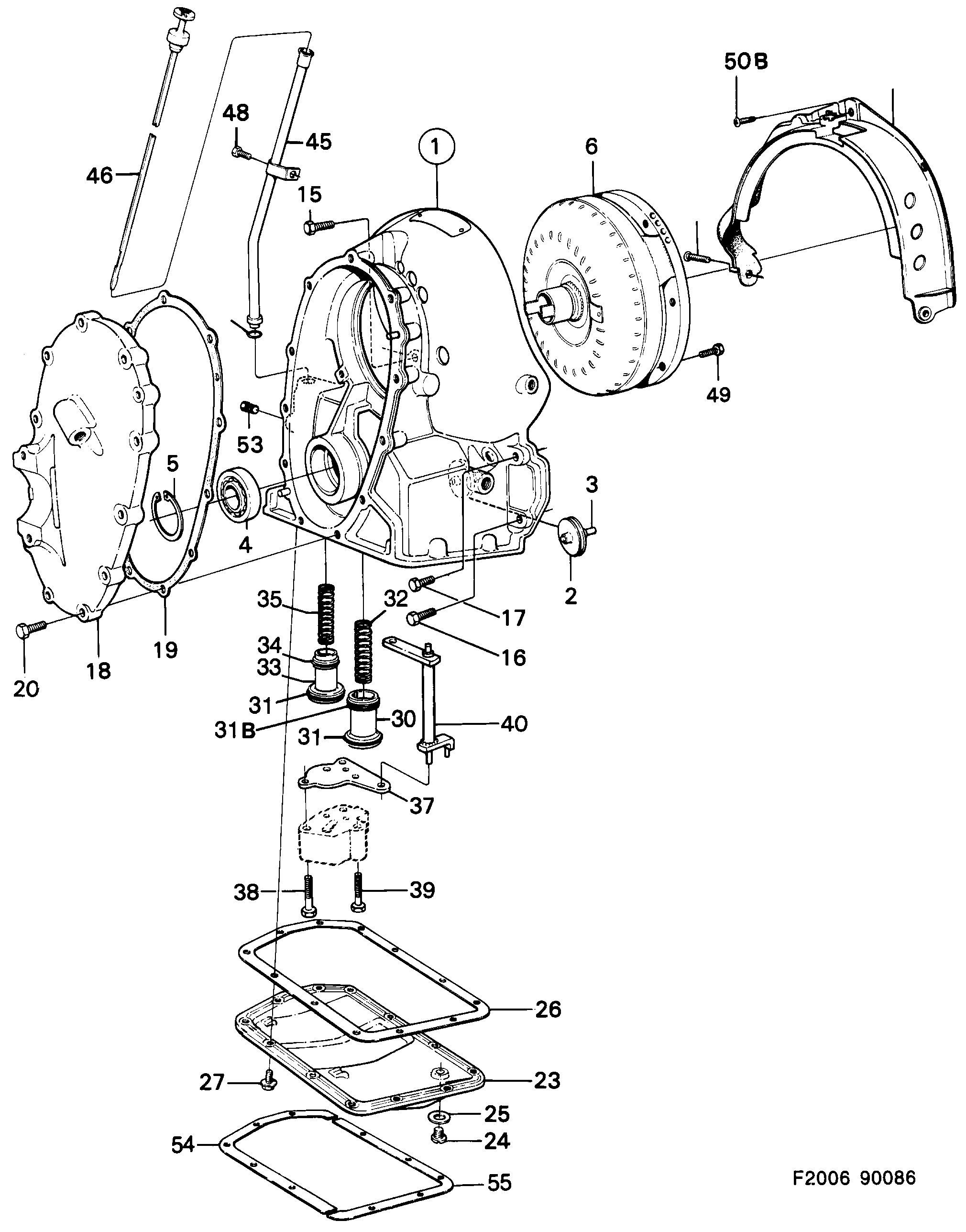

Saab 900 Converter shell Torque converter diagram

Pos	Article	Part No.
1	Converter shell	9369976
2	Pulley wheel	8708778
3	Shaft	8705428
4	Ball bearing	9335670
5	Lock ring	9335688
6	Torque converter	9362898
7	Cover	9362666
15	Screw	55562873 (replaces 8082968)
16	Screw	8082992
17	Screw	8082984
18	Cover	7546278
19	Seal	9335407
20	Screw	8083933
23	Cover	7547193
23	Oil pan	4029468
24	Plug	8708380
25	Washer	4118527 (replaces 8708398)
25	Washer	4118527
26	Seal	9335423
26	Seal	4029443
27	Screw	7985930 (replaces 8019903)
27	Screw	4029526
30	Piston	9369992
31	Seal	9334665
31B	Ring	7510001
32	Spring	7542244
33	Piston	9334681
34	Seal	9334699
35	Spring	9334707
37	Plate	9346057
38	Screw	9339979
39	Screw	9339987
40	Lever	9334772
45	Oil filler	7545494
45	Oil filler	7549819
46	Dipstick	7545502
46	Dipstick	7547748
46	Dipstick	4028387
47	O-ring	8308371
48	Screw	8082935
49	Screw	8083115
49	Screw	7979123
50	Screw	8082943
50B	Screw	7972466
53	Plug	9317165
54	Frame	4029484
55	Frame	4029492
