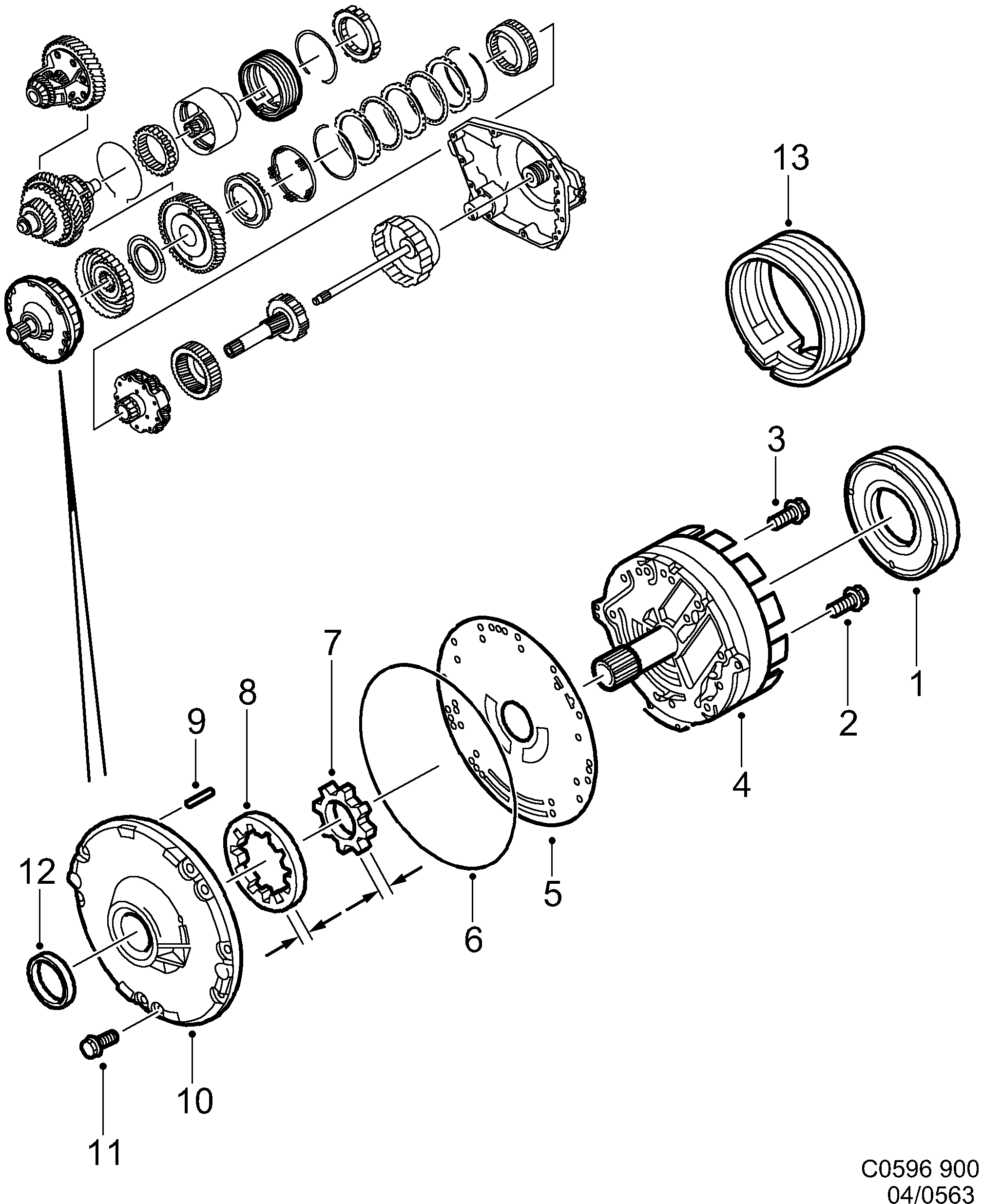

Group 4 Transmission, section 563
| Pos | Article | Part No. |
|---|---|---|
| 2 | Screw | 93178305 (replaces 5250469) |
| 3 | Screw | 90399357 (replaces 5255351) |
| 4 | Connector | 5250444 |
| 5 | Connector | 5250436 |
| 6 | O-ring | 90348756 (replaces 5250477) |
| 7 | Ring gear | 5250287 |
| 7 | Ring gear | 5250295 |
| 7 | Ring gear | 5250303 |
| 7 | Ring gear | 5250311 |
| 7 | Ring gear | 5250329 |
| 8 | Ring gear | 5250337 |
| 8 | Ring gear | 5250345 |
| 8 | Ring gear | 5250352 |
| 8 | Ring gear | 5250360 |
| 8 | Ring gear | 5250378 |
| 8 | Ring gear | 5250386 |
| 8 | Ring gear | 5250394 |
| 8 | Ring gear | 5250402 |
| 8 | Ring gear | 5250410 |
| 8 | Ring gear | 5250428 |
| 9 | Guide pin | 5250451 |
| 10 | Oil pump | 5250279 |
| 11 | Screw | 90399359 (replaces 4491130) |
| 12 | Seal | 93178232 (replaces 4491171) |
