Saab 900 1990-1993 Control system Part 2

Group 4 Transmission, section 560

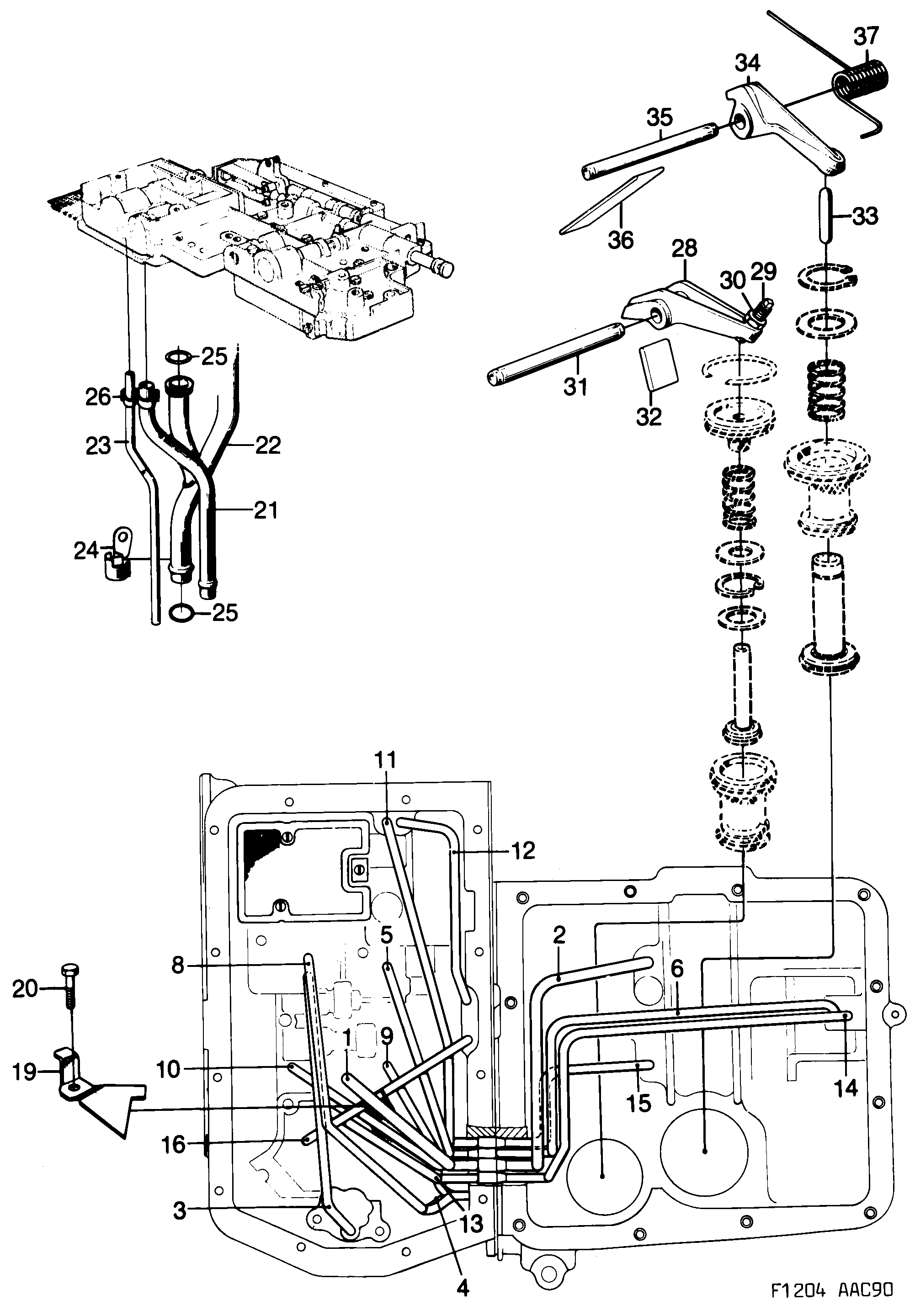

Saab 900 Control system Part 2 diagram

Pos	Article	Part No.
1	Tube	7542632
2	Tube	9335241
3	Tube	7542640
4	Tube	9335266
5	Tube	9335324
6	Tube	9335340
8	Tube	7542657
9	Tube	9335290
10	Tube	9335308
11	Tube	9335357
12	Tube	9335365
13	Tube	7510423
14	Tube	7510431
15	Tube	9335373
16	Tube	9335381
19	Brace	9348178
20	Screw	9362328
21	Tube	8709164
22	Tube	7542251
23	Tube	9334749
24	Clamp	8332595
25	O-ring	8705733
26	Clamp	8708760
28	Arm	8706038
29	Adjustment screw	8706046
30	Nut	9334814
31	Shaft	8706061
32	Pressure plate	9347949
33	Push rod	8706103
34	Lever	9334822
34	Lever	4121208
36	Link	8705220
37	Spring	7544844
	Pipe set	7511470
