Saab 900 1994-1998 Sun gear Planetary gear

Group 4 Transmission, section 557

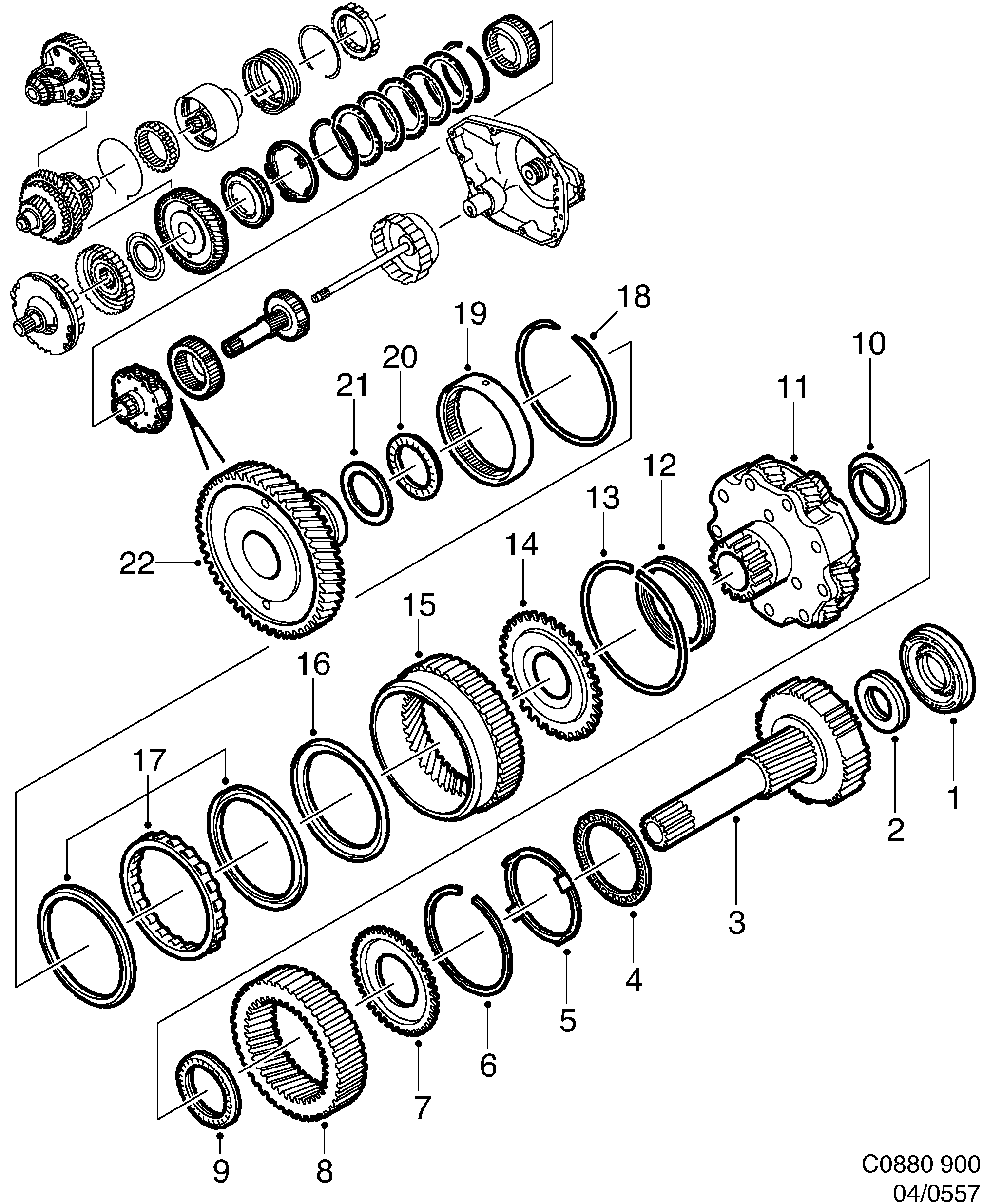

Saab 900 Sun gear Planetary gear diagram

Pos	Article	Part No.
2	Needle bearing	5253562
3	Sun gear	5259528 (replaces 5253554)
3	Sun gear	5335286 (replaces 5255021)
4	Needle bearing	5250857
5	Thrust washer	90442170 (replaces 5250840)
6	Lock ring	5250824
7	Thrust washer	5253547
7	Thrust washer	5250816
8	Ring gear	5250832
9	Needle bearing	5250808
10	Thrust washer	5250790
11	Planetary gear	5253539
11	Planetary gear	5255013
12	Needle bearing	90348824 (replaces 5250774)
13	Lock ring	90348821 (replaces 5250733)
14	Thrust washer	5250725
14	Thrust washer	5254784
15	Ring gear	5250758
16	Thrust washer	5250741
17	Freewheel	5250717
17	Freewheel	5254776
18	Lock ring	90348823 (replaces 5250766)
19	Thrust washer	5250709
20	Needle bearing	90444679 (replaces 5250691)
21	Thrust washer	90348814 (replaces 5250683)
