Saab 900 1994-1998 Clutch C1 Clutch C2

Group 4 Transmission, section 555

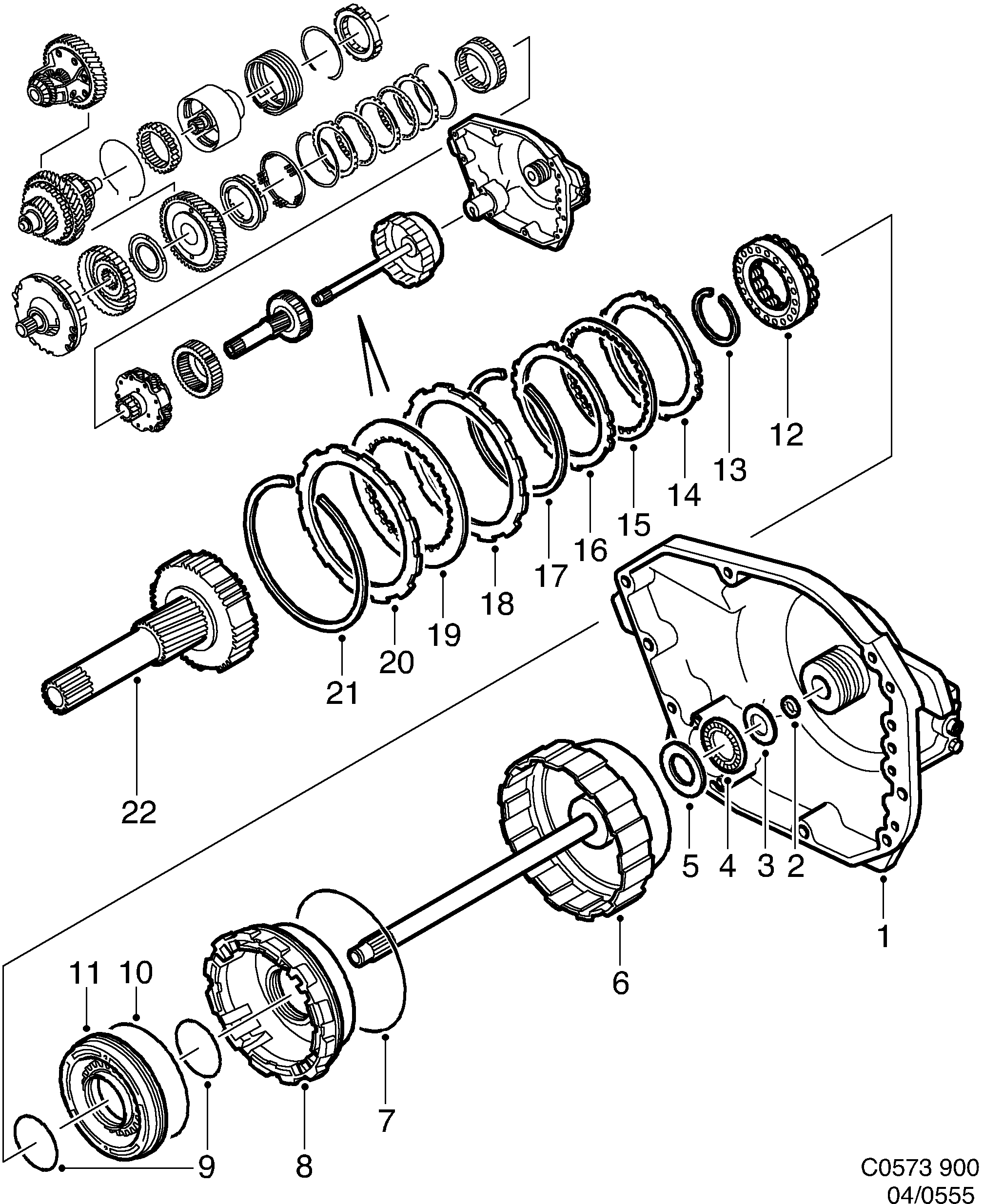

Saab 900 Clutch C1 Clutch C2 diagram

Pos	Article	Part No.
2	O-ring	90348782 (replaces 5250246)
3	Thrust washer	5253570
4	Needle bearing	5250899
5	Thrust washer	90348839 (replaces 5250907)
5	Thrust washer	90442172 (replaces 5250915)
6	Shaft	9119582 (replaces 5253307)
6	Input shaft	9119582
7	O-ring	90348767 (replaces 5250063)
8	Piston	90444637 (replaces 5250089)
9	O-ring	90348768 (replaces 5250071)
10	O-ring	93188441 (replaces 5164926)
10	O-ring	93178242 (replaces 5251442)
11	Piston	90487807 (replaces 5250113)
12	Return spring	5250097
13	Lock ring	90348773 (replaces 5250105)
14	Plate	90348774 (replaces 5250121)
15	Clutch disc	5253315
15	Clutch disc	5250139
15	Clutch disc	5253398
15	Clutch disc	90541961 (replaces 5251483)
16	Clutch disc	5250147
16	Clutch disc	5250154
16	Clutch disc	5250162
17	Lock ring	90348777 (replaces 5253687)
18	Plate	5250188
19	Clutch disc	5255161 (replaces 5253323)
19	Clutch disc	5250196
20	Clutch disc	5250204 (replaces 5253331)
20	Clutch disc	5250204
20	Friction disc	90542939
20	Clutch disc	5250220 (replaces 5253356)
20	Clutch disc	5250220
21	Lock ring	5253364
21	Lock ring	9199893 (replaces 5255179)
