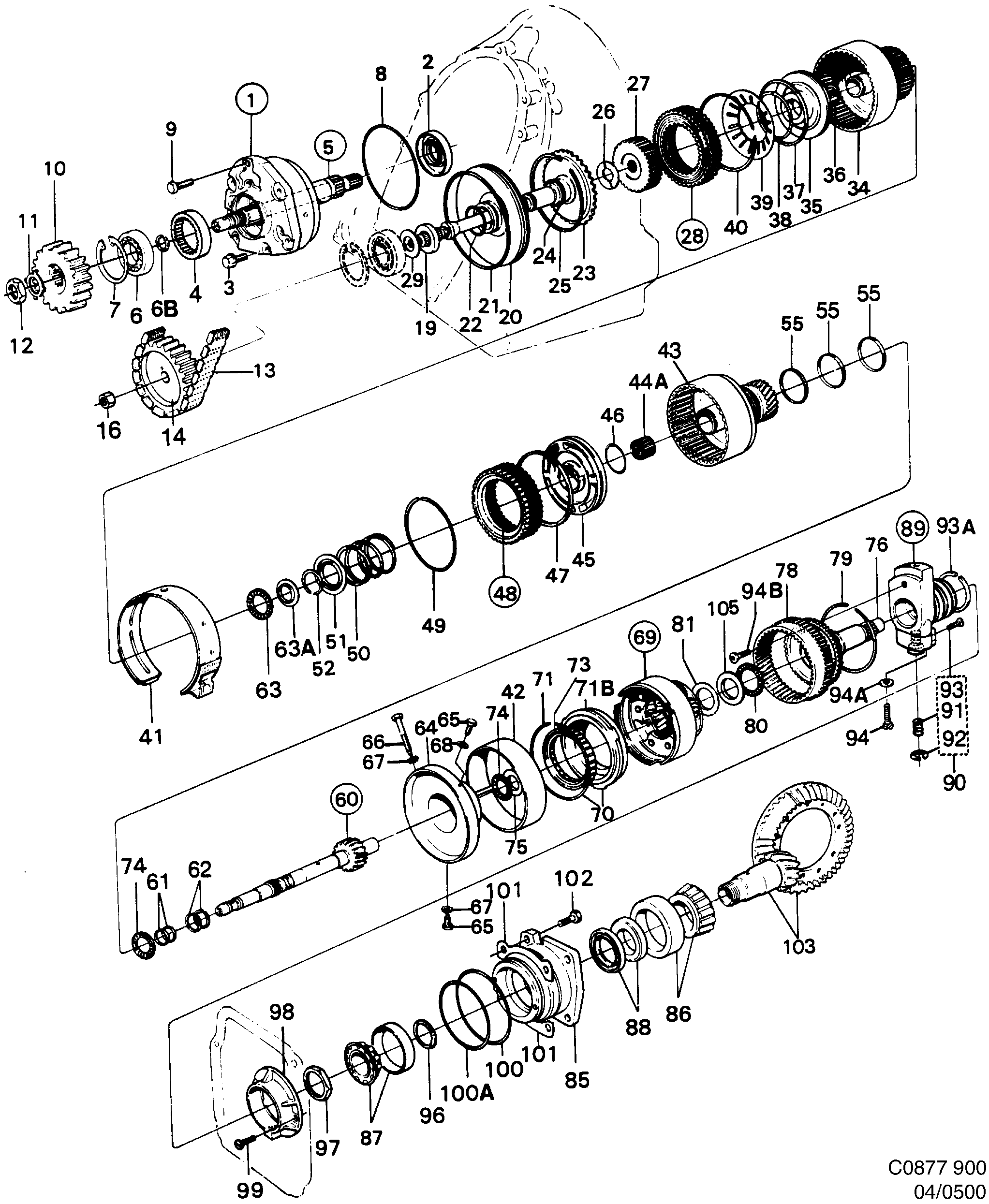

Group 4 Transmission, section 500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Oil pump | 9364498 |
| 2 | Seal | 9335696 |
| 3 | Screw | 8705659 |
| 4 | Ring gear | 8781783 |
| 5 | Shaft | 9362286 |
| 6 | Ball bearing | 8705436 |
| 6B | Seal | 9362294 |
| 7 | Clip | 8705444 |
| 8 | O-ring | 8705725 |
| 9 | Screw | 8082943 |
| 10 | Chain gear | 9362906 |
| 10 | Chain gear | 9335027 |
| 11 | Washer | 9338005 |
| 12 | Nut | 9338013 |
| 13 | Chain | 9335050 |
| 14 | Chain gear | 9362914 |
| 14 | Chain gear | 9364522 |
| 16 | Nut | 9364514 |
| 19 | Washer | 9334996 |
| 20 | Cover | 9334756 |
| 21 | Seal | 9344219 |
| 22 | O-ring | 9334764 |
| 23 | Shaft | 9364589 |
| 24 | Seal | 9344227 |
| 25 | Lock ring | 8706491 |
| 26 | Washer | 7540909 |
| 27 | Clutch hub | 8709446 |
| 28 | Disc kit | 7543051 |
| 29 | Shim | 9335019 |
| 29 | Shim | 9335001 |
| 34 | Cylinder | 7542434 |
| 35 | Piston | 8708786 |
| 36 | O-ring | 8706327 |
| 37 | Ring | 8706335 |
| 38 | Ring | 8706343 |
| 39 | Spring | 9303751 |
| 41 | Brake lining | 7543028 |
| 42 | Brake lining | 7549595 |
| 43 | Drum | 7542897 |
| 44A | Needle bearing | 8706582 |
| 45 | Piston | 9336041 |
| 46 | O-ring | 8706129 |
| 47 | Seal | 8706616 |
| 48 | Disc kit | 9335472 |
| 48 | Disc kit | 9344110 |
| 49 | Lock ring | 8706368 |
| 49 | Locking | 9349002 |
| 50 | Spring | 8706665 |
| 50 | Spring | 7542475 |
| 51 | Seat | 8706673 |
| 52 | Lock ring | 8706681 |
| 55 | Seal | 8706707 |
| 60 | Sun gear | 9364605 |
| 60 | Sun gear | 4121323 |
| 61 | Seal | 9364373 |
| 62 | Seal | 9361551 |
| 63 | Needle bearing | 9369216 |
| 63A | Washer | 9369208 |
| 64 | Bearing sleeve | 7542483 |
| 64 | Bearing sleeve | 4121232 |
| 65 | Screw | 7546260 |
| 66 | Screw | 8706848 |
| 67 | Lock washer | 8706855 |
| 69 | Planetary gear | 9364647 |
| 70 | Freewheel | 9345984 |
| 71 | Locking wire | 8705170 |
| 71B | Bearing carrier | 9344250 |
| 73 | Clutch | 8707051 |
| 74 | Needle bearing | 8709347 |
| 75 | Bearing race | 9334889 |
| 76 | Shaft | 9334939 |
| 78 | Ring gear | 7542491 |
| 79 | Lock ring | 8707457 |
| 80 | Needle bearing | 8325334 |
| 81 | Shim | 8708703 |
| 85 | Pinion bearing housing | 9336074 |
| 86 | Pinion bearing kit | 9335522 |
| 87 | Pinion bearing kit | 9335514 |
| 88 | Seal | 9336116 |
| 89 | Regulator | 9362864 |
| 89 | Regulator | 4121273 |
| 90 | Regulator kit | 9362880 |
| 90 | Regulator kit | 4121240 |
| 91 | Spring | 8707234 |
| 91 | Spring | 4121349 |
| 92 | Clamping ring | 8708851 |
| 93 | Screw | 8707275 |
| 93A | Seal | 9334947 |
| 94 | Screw | 8325722 |
| 94A | Washer | 7933823 |
| 94B | Screw | 9344102 |
| 96 | Shim | 9341009 |
| 96 | Shim | 9341017 |
| 96 | Shim | 9341025 |
| 96 | Shim | 9341033 |
| 96 | Shim | 9341041 |
| 96 | Shim | 9341058 |
| 96 | Shim | 9341066 |
| 96 | Shim | 9341074 |
| 96 | Shim | 9341082 |
| 96 | Shim | 9341090 |
| 96 | Shim | 9341108 |
| 96 | Shim | 9341116 |
| 96 | Shim | 9341124 |
| 97 | Nut | 9336140 |
| 98 | Gauges | 9336157 |
| 99 | Screw | 9336132 |
| 100 | Seal | 9334913 |
| 100A | O-ring | 9362310 |
| 101 | Shim | 9334962 |
| 101 | Shim | 9334970 |
| 101 | Shim | 9334988 |
| 102 | Screw | 7511884 |
| 103 | Final drive | 8727018 |
| 105 | Washer | 8325342 |
| Planetary gear kit | 9364613 | |
| Thrust washer kit | 7540891 | |
| Sealing kit | 7542673 | |
| Oil ring set | 9365172 | |
| Spring kit | 9369729 |
