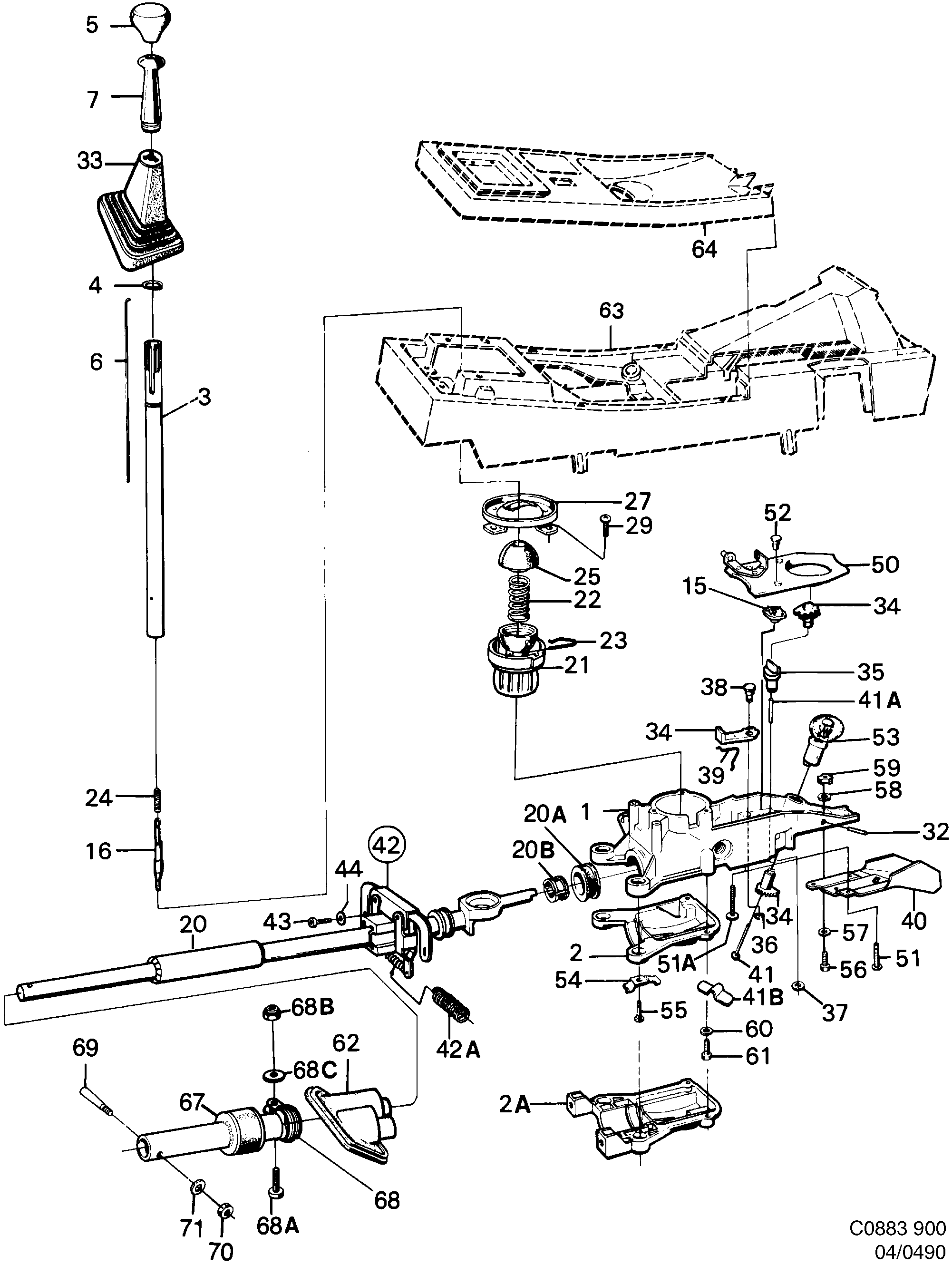

Group 4 Transmission, section 490
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gear shift housing | 9347816 |
| 2 | Gear shift housing | 9348616 |
| 2A | Gear shift housing | 7540727 |
| 3 | Shift lever | 9348541 |
| 4 | Snap ring | 7951379 |
| 5 | Knob | 9367046 |
| 5 | Knob | 7544828 |
| 6 | Release rod | 8333197 |
| 7 | Companion flange | 9331539 |
| 16 | Catch pin | 9348558 |
| 20 | Gear rod | 7543176 |
| 20 | Gear rod | 7543184 |
| 20 | Gear rod | 7547334 |
| 20A | Bushing | 8375156 |
| 20B | Plastic bushing | 8373078 |
| 21 | Companion flange | 9348665 |
| 22 | Spring | 9326380 |
| 23 | Pin | 8375024 |
| 24 | Spring | 8701385 |
| 25 | Bearing shell | 8375990 |
| 27 | Bearing shell | 9349408 |
| 29 | Screw | 9835737 (replaces 9461096) |
| 29 | Screw | 9835737 |
| 32 | Plug | 8374555 |
| 33 | Boot | 9344300 |
| 33 | Leather cover | 9398215 |
| 34 | Gear | 9337445 |
| 35 | Pin | 9342734 |
| 36 | Lock ring | 7951353 |
| 37 | Washer | 92153033 (replaces 8029985) |
| 38 | Pin | 8378275 |
| 39 | Spring | 7542913 |
| 40 | Brace | 9342338 |
| 41 | Pin | 9342353 |
| 41A | Pin | 9342361 |
| 41B | Brace | 7549256 (replaces 9342346) |
| 41B | Brace | 7549256 |
| 42 | Control unit | 9324260 |
| 42A | Spring | 4029955 |
| 43 | Screw | 7971823 |
| 44 | Washer | 7972284 |
| 50 | Cover | 8375339 |
| 51 | Screw | 8059487 |
| 51A | Screw | 8057697 |
| 52 | Nut | 9361163 |
| 53 | Lock cylinder | 8283798 |
| 54 | Adjusting washer | 8374753 |
| 55 | Screw | 9322785 |
| 56 | Screw | 9324708 |
| 57 | Washer | 7061328 |
| 58 | Washer | 7933823 |
| 59 | Nut | 8373714 |
| 61 | Screw | 7934797 |
| 62 | Boot | 9316910 |
| 62 | Boot | 7549173 |
| 67 | Joint | 7542095 |
| 67 | Joint | 7542038 |
| 68 | Clamp | 55562614 (replaces 9348533) |
| 68A | Screw | 55562616 (replaces 7541907) |
| 68B | Nut | 11066386 (replaces 7975501) |
| 69 | Pin | 8375172 |
| 70 | Nut | 4776274 (replaces 8335002) |
| 71 | Washer | 8029944 |
