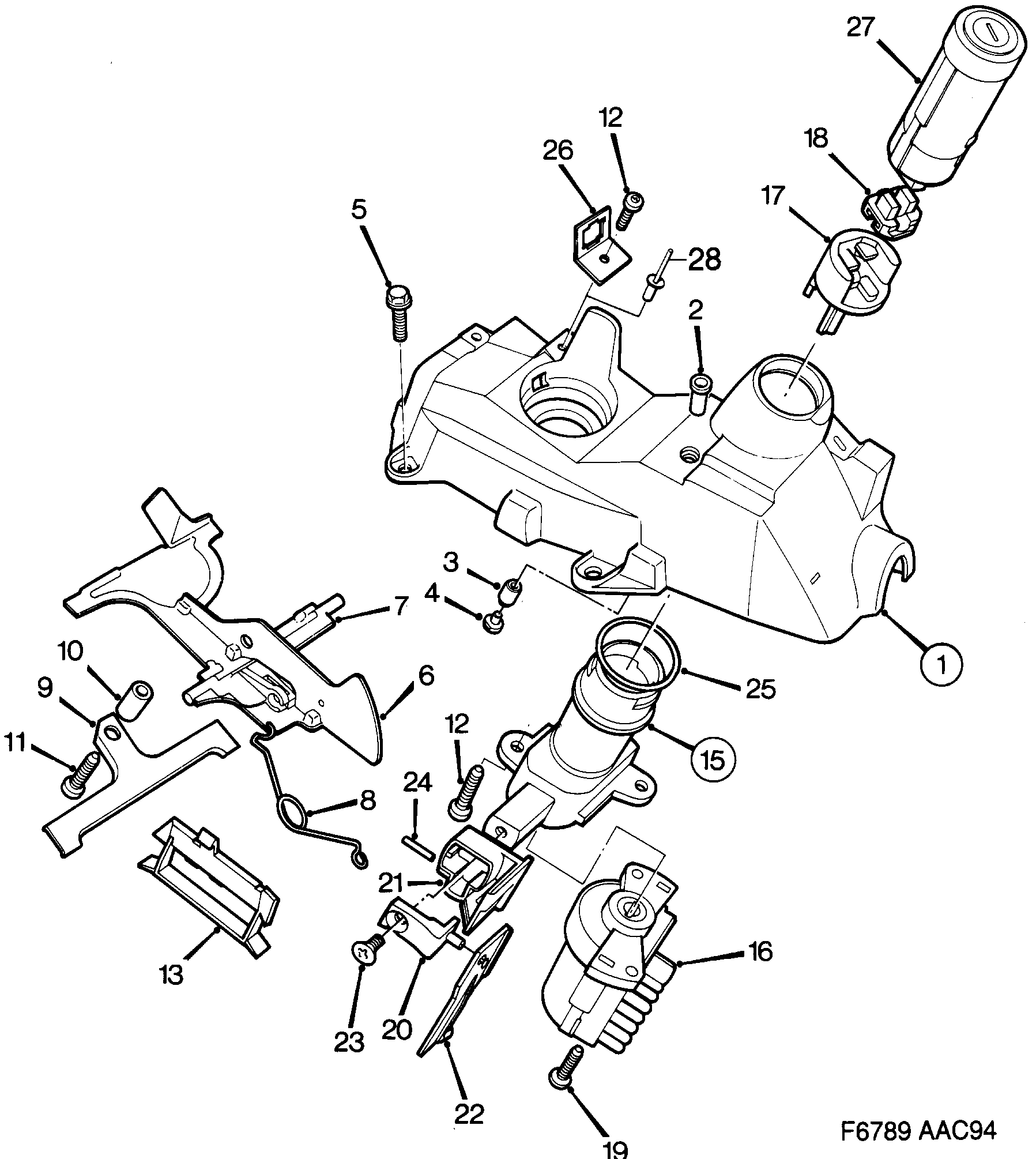

Group 4 Transmission, section 480
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gear shift housing | 4490710 |
| 2 | Rivet nut | 55562619 (replaces 4087250) |
| 3 | Rubber bushing | 4387346 |
| 4 | Cap | 4387452 |
| 5 | Screw | 11900354 (replaces 7978109) |
| 6 | Lock plate | 4387320 |
| 7 | Bracket | 4387692 |
| 8 | Spring | 4387338 |
| 9 | Bracket | 4387353 |
| 10 | Spacer | 4387908 |
| 11 | Lock screw | 4087367 |
| 12 | Screw | 92153218 (replaces 7982176) |
| 13 | Deflection limiter | 4387684 |
| 15 | Ignition switch | 5160999 (replaces 4387742) |
| 16 | Switch | 4946307 (replaces 4409553) |
| 16 | Switch | 4946307 |
| 17 | Companion flange | 4490728 |
| 18 | Clutch | 4490736 |
| 19 | Screw | 92151805 (replaces 8059230) |
| 20 | Companion flange | 4387775 |
| 21 | Carrier | 4387759 |
| 22 | Top label | 4387767 |
| 23 | Lock screw | 4087268 |
| 24 | Roll pin | 7956154 |
| 25 | O-ring | 7972797 |
| 26 | Bracket | 4387270 |
| 28 | Rivet | 92153058 (replaces 7972490) |
