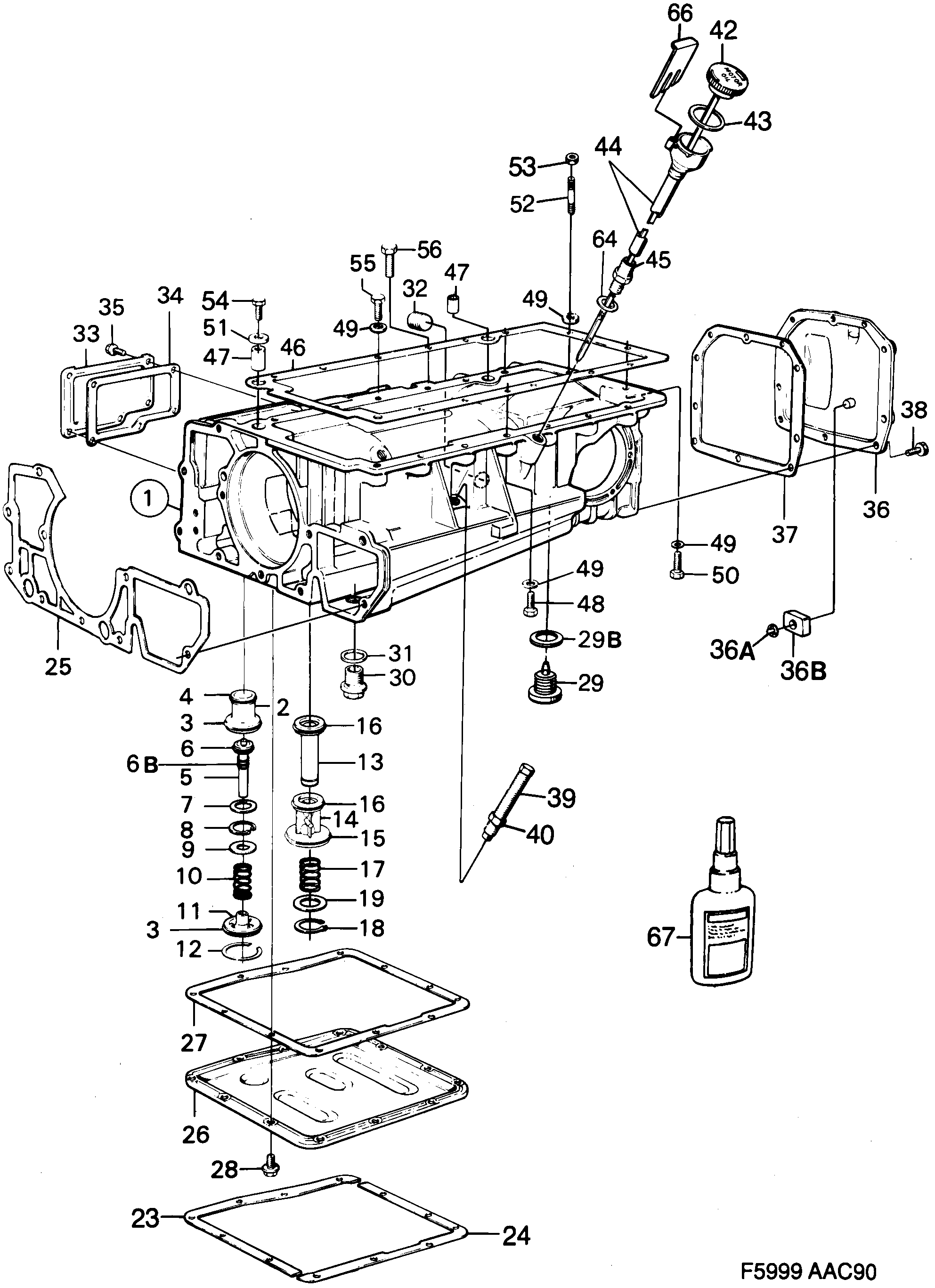

Group 4 Transmission, section 470
| Pos | Article | Part No. |
|---|---|---|
| 1 | Transmission housing | 7542277 |
| 1 | Transmission housing | 7554264 |
| 1 | Transmission housing | 4121281 |
| 2 | Piston | 7542293 |
| 2 | Piston | 9335738 |
| 2 | Piston | 7542285 |
| 3 | O-ring | 8706111 |
| 4 | O-ring | 8325151 |
| 5 | Pivot pin | 7542301 |
| 6 | Seal | 7542954 |
| 6B | Spring | 9335753 |
| 7 | Pressure plate | 9335787 |
| 8 | Lock ring | 9335795 |
| 9 | Pressure plate | 9335803 |
| 10 | Spring | 9335811 |
| 11 | Piston | 9335829 |
| 12 | Lock ring | 9334806 |
| 13 | Piston | 7542319 |
| 14 | Piston | 7542327 |
| 14 | Piston | 4121182 |
| 15 | O-ring | 8709610 |
| 16 | O-ring | 8706129 |
| 17 | Spring | 7542335 |
| 18 | Lock ring | 9348988 |
| 19 | Washer | 9341330 |
| 23 | Frame | 4029500 |
| 24 | Frame | 4029518 |
| 25 | Gasket | 9334780 |
| 25 | Gasket | 4121380 |
| 26 | Oil pan | 4029476 |
| 27 | Gasket | 4029450 |
| 28 | Screw | 4029526 |
| 29 | Drain plug | 8717407 |
| 29B | Gasket | 8717415 |
| 30 | Drain plug | 8731762 (replaces 8711871) |
| 30 | Drain plug | 8731762 |
| 31 | Gasket | 8718439 |
| 31 | Gasket | 8728057 |
| 32 | Plug | 8710857 |
| 33 | Cover | 4028940 |
| 34 | Gasket | 7542665 |
| 35 | Screw | 7985930 (replaces 8019903) |
| 35 | Screw | 7985930 (replaces 9166281) |
| 36 | Cover | 8722035 |
| 36 | Cover | 8729683 |
| 36A | Washer | 7977507 |
| 36B | Magnet | 8727745 |
| 37 | Gasket | 8728669 |
| 38 | Screw | 8125197 |
| 39 | Adjustment screw | 8706152 |
| 40 | Nut | 8706160 |
| 42 | Dipstick | 7514201 |
| 43 | Ring-gland | 55557303 (replaces 9361544) |
| 44 | Oil filler | 9368200 |
| 45 | Nipple | 9361452 |
| 46 | Gasket | 7510241 |
| Flange sealant | 93165267 (replaces 8781841) | |
| 47 | Guide sleeve | 8300725 |
| 48 | Screw | 8125213 (replaces 8083958) |
| 49 | Washer | 92153033 (replaces 8029985) |
| 49 | Washer | 32000432 (replaces 9166372) |
| 50 | Screw | 55562873 (replaces 8082968) |
| 51 | Washer | 7061328 |
| 52 | Stud | 8005928 |
| 53 | Nut | 8151235 |
| 54 | Screw | 9346354 |
| 55 | Screw | 9346362 |
| 56 | Screw | 9346370 |
| 64 | Washer | 9361627 |
| 66 | Plate | 9362542 |
| 67 | Hydraulic sealant | 7496284 |
| Gasket kit | 9335563 |
