Saab 900 1986-1989 Differential

Group 4 Transmission, section 460

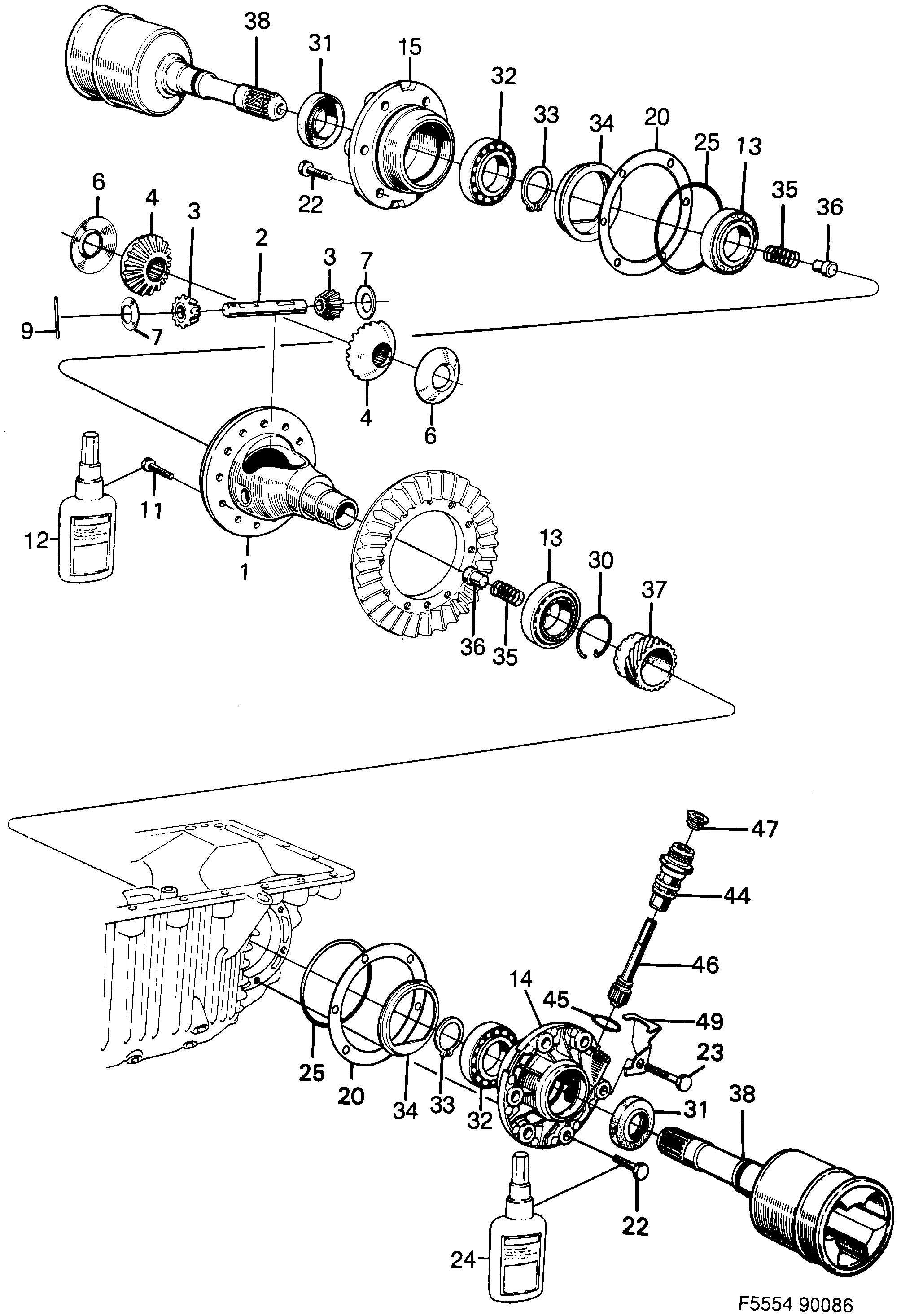

Saab 900 Differential diagram

Pos	Article	Part No.
1	Differential housing	8719890
2	Differential shaft	8719940
3	Differential pinion	8723173
3	Differential pinion	8719858
4	Differential side gear	8723165
4	Differential side gear	8719866
6	Washer	8719882
7	Washer	90490816 (replaces 8719874)
9	Cotter pin	8049702
11	Screw	8718140
12	Nut lock	7496268
13	Pinion bearing	8704389 (replaces 8708836)
14	Bearing seat	8711160
15	Bearing seat	8704280
20	Shim	8341604
20	Shim	8341612
20	Shim	8341620
20	Shim	8341638
22	Screw	8083941
23	Screw	8083974
24	Hydraulic sealant	7496284
25	O-ring	8342701
25	O-ring	8728156
30	Stop ring	8704421
31	Sealing collar	8731804 (replaces 8704298)
32	Ball bearing	8704306
33	Lock ring	8728198 (replaces 7915200)
34	Washer	8710360
35	Spring	8704314
36	Plunger	8704322
37	Drive gear	8704413
38	Companion flange	8722472
44	Sleeve	8724866 (replaces 8713034)
44	Sleeve	8724866
45	O-ring	8711707
46	Gear	8723900
47	Seal	8713463
47	Seal	8724874
49	Lock plate	8711723
