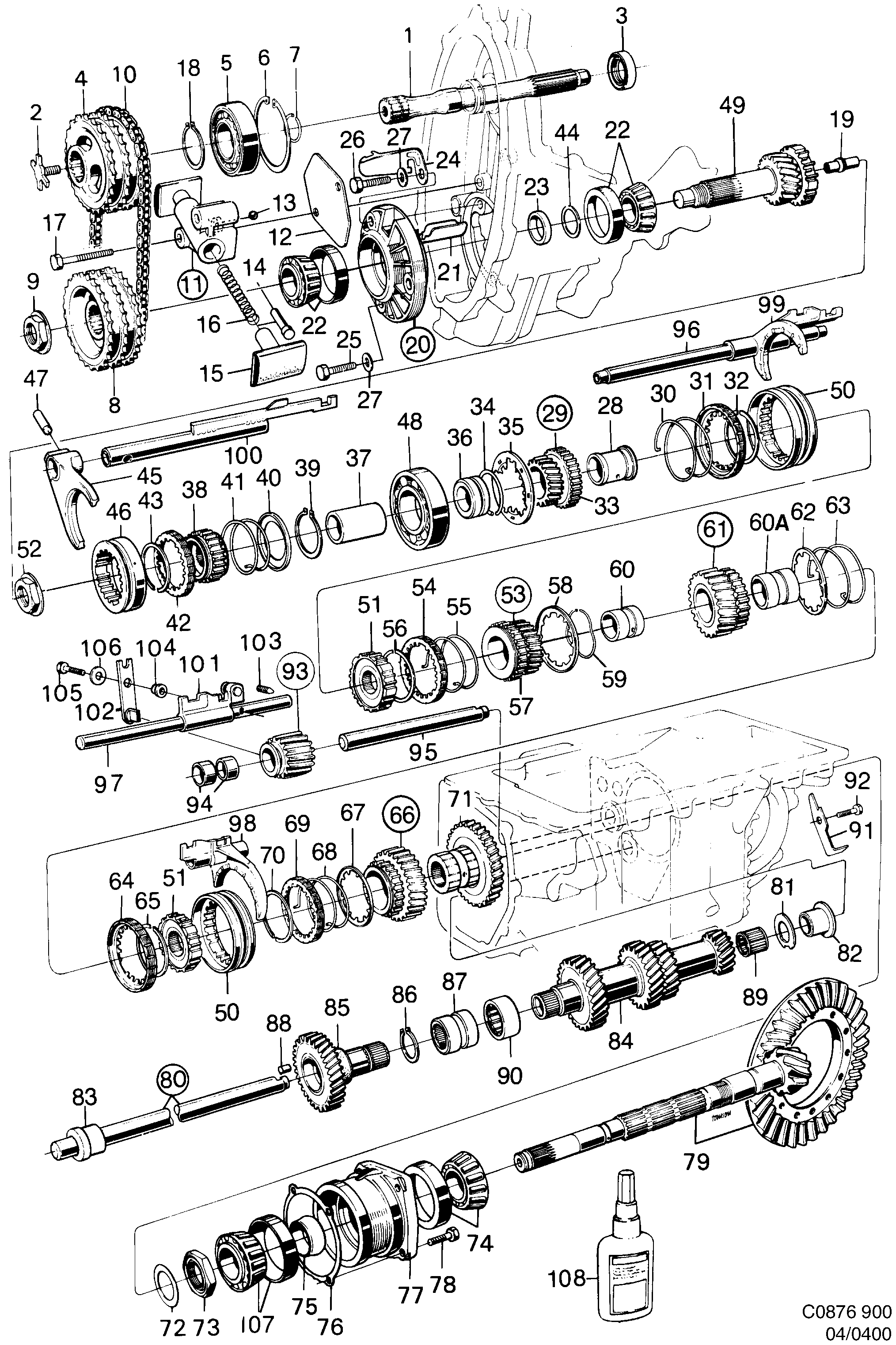

Group 4 Transmission, section 400
| Pos | Article | Part No. |
|---|---|---|
| 1 | Clutch shaft | 8711350 |
| 2 | Screw | 8711038 |
| 3 | Seal | 8710881 |
| 4 | Chain link | 8711343 |
| 4 | Chain gear | 8713190 |
| 4 | Chain gear | 8728594 |
| 4 | Chain link | 8726010 |
| 5 | Roller bearing | 8710865 |
| 6 | Snap ring | 8711376 |
| 7 | Lock ring | 8704777 |
| 8 | Chain gear | 8715831 |
| 8 | Chain gear | 8713208 |
| 8 | Chain gear | 8728602 |
| 8 | Chain gear | 8726028 |
| 8 | Chain gear | 8728586 |
| 9 | Nut | 8712770 |
| 10 | Chain | 8711590 |
| 11 | Chain tensioner | 8713570 |
| 12 | Plate | 8713513 |
| 13 | Ball | 8713554 |
| 14 | Plug | 8713539 |
| 15 | Tightener shoe | 8713497 |
| 16 | Spring | 8713521 |
| 17 | Screw | 8722555 |
| 18 | Snap ring | 8047839 |
| 19 | Tube | 8713158 |
| 20 | Bearing housing | 8726523 |
| 21 | Oil collector | 8713596 |
| 22 | Roller bearing | 8712838 |
| 23 | Spacer ring | 8726184 |
| 23 | Spacer ring | 8726192 |
| 23 | Spacer ring | 8726200 |
| 23 | Spacer ring | 8726218 |
| 24 | Oil collector | 8713588 |
| 25 | Screw | 8083933 |
| 26 | Screw | 8719320 |
| 27 | Washer | 92153033 (replaces 8029985) |
| 28 | Bushing | 8713026 |
| 29 | Gear | 8726580 |
| 30 | Locking spring | 8700429 |
| 31 | Ring | 8719924 |
| 32 | Snap ring | 8704942 |
| 33 | Gear | 8726598 |
| 34 | Lock ring | 8726325 |
| 35 | Guide ring | 8726150 |
| 36 | Spacer bushing | 8712762 |
| 37 | Spacer sleeve | 8713406 |
| 38 | Clutch hub | 8718389 |
| 39 | Snap ring | 8047854 |
| 40 | Guide ring | 8712598 |
| 41 | Locking spring | 8715005 |
| 42 | Synchromesh | 8344772 |
| 43 | Lock ring | 8712606 |
| 44 | Adjusting washer | 8712994 |
| 44 | Adjusting washer | 8713448 |
| 44 | Adjusting washer | 8713455 |
| 45 | Gear selector fork | 8721839 |
| 46 | Sleeve | 8712580 |
| 47 | Pin | 8034985 |
| 48 | Ball bearing | 8700767 |
| 49 | Shaft | 8726341 |
| 50 | Sleeve | 8720419 |
| 51 | Synchromesh | 8712150 |
| 52 | Nut | 8718371 |
| 53 | Gear | 8726564 |
| 54 | Ring | 8719916 |
| 57 | Gear | 8726572 |
| 58 | Guide ring | 8726143 |
| 59 | Lock ring | 8726317 |
| 60 | Bushing | 8726739 |
| 60A | Bearing bushing | 8700205 |
| 61 | Gear | 8726556 |
| 62 | Guide ring | 8700361 |
| 63 | Locking spring | 8715120 |
| 66 | Gear | 8726549 |
| 68 | Locking spring | 8711103 |
| 71 | Gear | 8726093 |
| 72 | Shim | 8703340 |
| 72 | Shim | 8703357 |
| 72 | Shim | 8703365 |
| 73 | Nut | 8702359 |
| 74 | Roller bearing | 8727422 |
| 75 | Sleeve | 8726168 |
| 76 | Adjusting washer | 8726259 |
| 76 | Adjusting washer | 8726267 |
| 76 | Adjusting washer | 8726275 |
| 76 | Adjusting washer | 8726283 |
| 77 | Bearing housing | 8726721 |
| 78 | Screw | 8727505 |
| 79 | Final drive | 8726531 |
| 80 | Shaft | 8726333 |
| 81 | Thrust washer | 8726077 |
| 82 | Inner race | 8726085 |
| 83 | Inner race | 8726051 |
| 84 | Gear | 8726069 |
| 85 | Gear | 8725137 |
| 86 | Snap ring | 8728198 (replaces 8047813) |
| 86 | Snap ring | 8728198 |
| 87 | Sleeve | 8712655 |
| 88 | Roller | 8714693 |
| 89 | Needle bearing | 8726887 |
| 90 | Needle bearing | 8712853 |
| 91 | Lock plate | 8700114 |
| 92 | Screw | 8718843 |
| 93 | Gear | 8704348 |
| 94 | Bushing | 8715229 |
| 95 | Shaft | 8700130 |
| 96 | Shift rail | 8700585 |
| 97 | Shift rail | 8721318 |
| 98 | Gear selector fork | 8713091 |
| 99 | Gear selector fork | 8700619 |
| 100 | Gear selector fork | 8713638 |
| 101 | Gear selector fork | 8712929 |
| 102 | Lever | 8702045 |
| 103 | Roll pin | 8117715 |
| 104 | Bearing sleeve | 8713000 |
| 105 | Screw | 8715062 |
| 106 | Washer | 8029969 |
| 107 | Roller bearing | 8729105 (replaces 8725194) |
| 108 | Nut lock | 7496268 |
| 108 | Nut lock | 7496276 |
