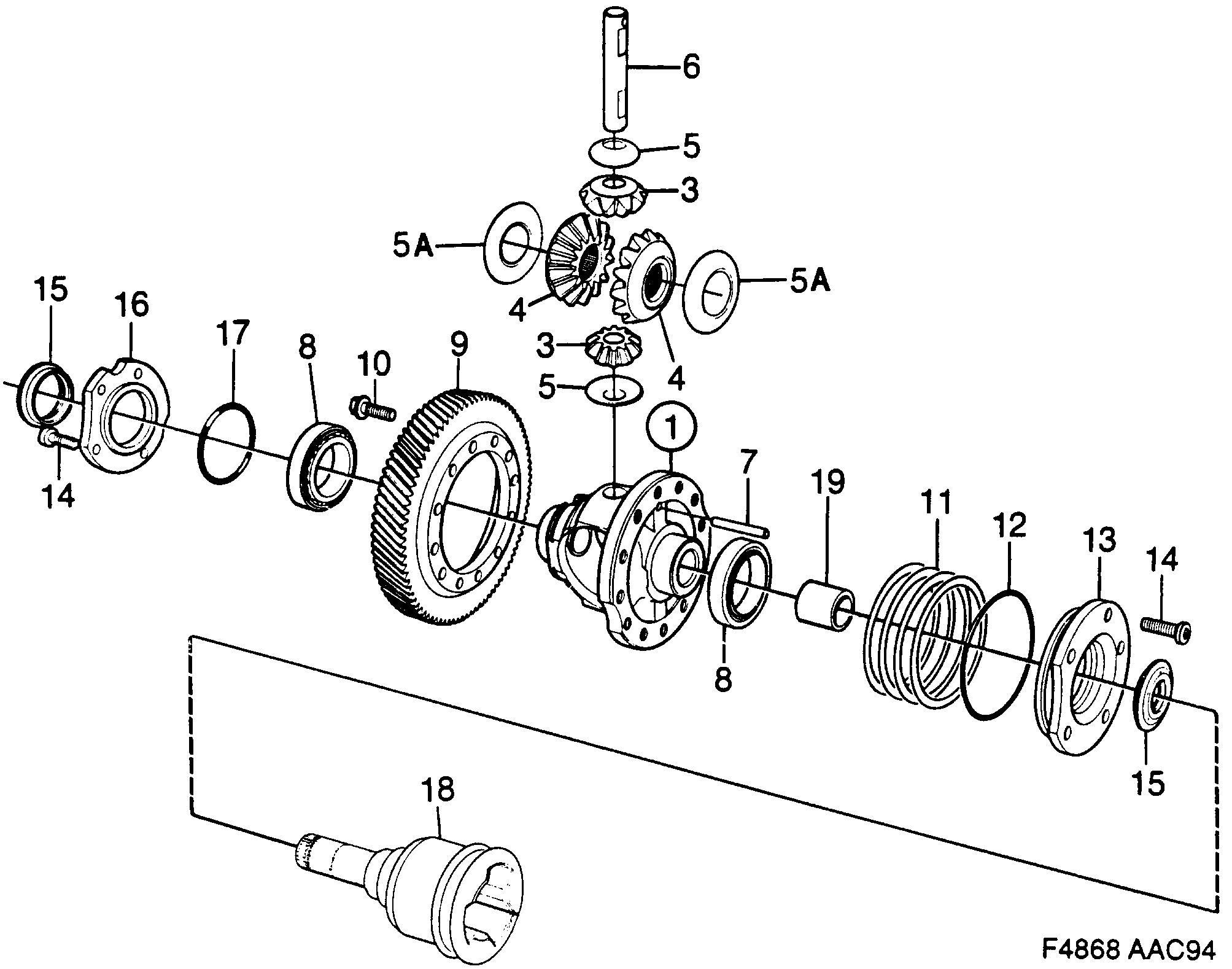

Group 4 Transmission, section 390
| Pos | Article | Part No. |
|---|---|---|
| 1 | Differential | 8741829 |
| 1 | Differential | 90541202 (replaces 8744765) |
| 3 | Differential pinion | 8733909 |
| 4 | Differential side gear | 8733446 |
| 5 | Washer | 90490816 (replaces 8731788) |
| 5 | Washer | 90490816 (replaces 8741464) |
| 5A | Washer | 8741332 |
| 6 | Differential shaft | 8719940 |
| 6 | Differential shaft | 8747255 |
| 7 | Roll pin | 8117863 |
| 7 | Roll pin | 30563333 (replaces 7918584) |
| 8 | Roller bearing | 12788353 (replaces 8734568) |
| 9 | Gear | 90540924 (replaces 8730715) |
| 9 | Gear | 8730285 |
| 9 | Gear | 12755084 (replaces 8744518) |
| 9 | Gear | 90541203 (replaces 8744492) |
| 9 | Gear | 55354670 (replaces 8746893) |
| 9 | Gear | 90511230 (replaces 8734386) |
| 9 | Gear | 90540370 (replaces 8742173) |
| 9 | Gear | 90490907 (replaces 8744625) |
| 10 | Screw | 90512199 (replaces 8735193) |
| 10 | Screw | 90512199 (replaces 8741712) |
| 10 | Flange screw | 90512199 |
| 10 | Screw | 55562646 (replaces 4685350) |
| 11 | Adjusting washer | 90511232 (replaces 8734618) |
| 11 | Adjusting washer | 90511233 (replaces 8734626) |
| 11 | Adjusting washer | 90511234 (replaces 8734634) |
| 11 | Adjusting washer | 90511235 (replaces 8734642) |
| 12 | O-ring | 90486232 (replaces 8047144) |
| 13 | Sealing retainer | 90511236 (replaces 8734022) |
| 14 | Screw | 92151830 (replaces 8059792) |
| 15 | Seal | 55353153 (replaces 8732117) |
| 15 | Seal | 90542019 (replaces 4491189) |
| 16 | Sealing retainer | 90511238 (replaces 8734014) |
| 17 | O-ring | 8731390 |
| 19 | Bushing | 8733230 |
| Gasket kit | 8781494 |
