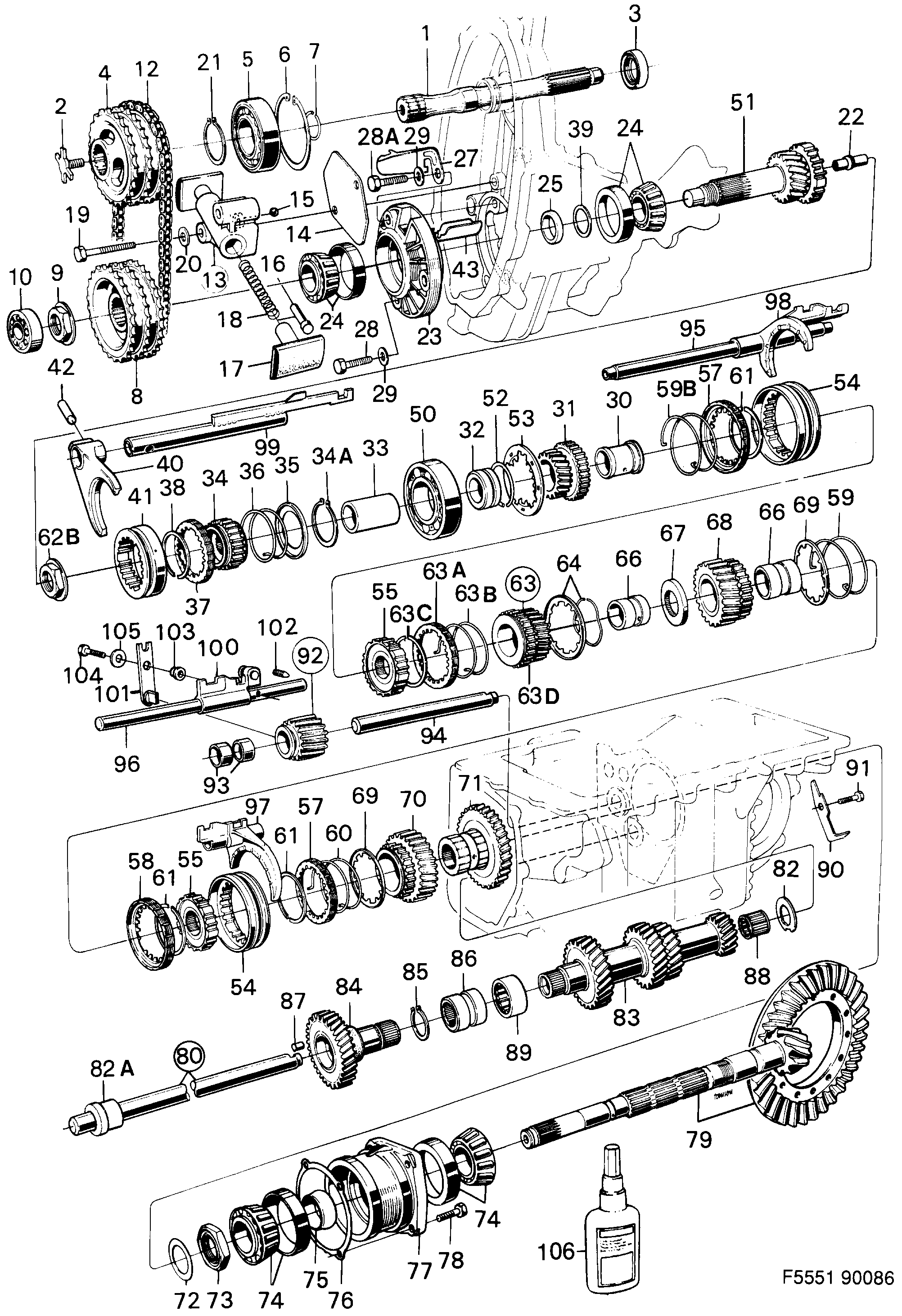

Group 4 Transmission, section 370
| Pos | Article | Part No. |
|---|---|---|
| 1 | Clutch shaft | 8711350 |
| 2 | Screw | 8711038 |
| 3 | Seal | 8710881 |
| 4 | Chain gear | 8713190 |
| 4 | Chain link | 8711343 |
| 4 | Chain gear | 8711582 |
| 5 | Roller bearing | 8710865 |
| 6 | Snap ring | 8711376 |
| 7 | Lock ring | 8704777 |
| 8 | Chain gear | 8713208 |
| 8 | Chain gear | 8715831 |
| 8 | Chain gear | 8725616 |
| 9 | Nut | 8712770 |
| 10 | Ball bearing | 8721219 |
| 12 | Chain | 8711590 |
| 13 | Chain tensioner | 8713570 |
| 14 | Plate | 8713513 |
| 15 | Ball | 8713554 |
| 16 | Plug | 8713539 |
| 17 | Tightener shoe | 8713497 |
| 18 | Spring | 8713521 |
| 19 | Screw | 8083982 |
| 19 | Screw | 8722555 |
| 20 | Washer | 92153033 (replaces 8029985) |
| 21 | Snap ring | 8047839 |
| 22 | Tube | 8713158 |
| 23 | Bearing housing | 8723256 |
| 24 | Roller bearing | 8712838 |
| 25 | Spacer ring | 8723272 |
| 25 | Spacer ring | 8723280 |
| 25 | Spacer ring | 8723298 |
| 25 | Spacer ring | 8723306 |
| 27 | Oil collector | 8713588 |
| 28 | Screw | 8083933 |
| 28A | Screw | 8719320 |
| 30 | Bushing | 8713026 |
| 31 | Gear | 8714503 |
| 32 | Spacer bushing | 8712762 |
| 33 | Spacer sleeve | 8713406 |
| 34 | Clutch hub | 8718389 |
| 34A | Snap ring | 8047854 |
| 35 | Guide ring | 8712598 |
| 36 | Locking spring | 8715005 |
| 37 | Synchromesh | 8344772 |
| 38 | Lock ring | 8712606 |
| 39 | Adjusting washer | 8712994 |
| 39 | Adjusting washer | 8713448 |
| 39 | Adjusting washer | 8713455 |
| 40 | Gear selector fork | 8721839 |
| 41 | Sleeve | 8712580 |
| 42 | Pin | 8034985 |
| 43 | Oil collector | 8713596 |
| 50 | Ball bearing | 8700767 |
| 51 | Shaft | 8723249 |
| 51 | Shaft | 8723231 |
| 52 | Lock ring | 8710410 |
| 53 | Guide ring | 8704041 |
| 54 | Sleeve | 8720419 |
| 55 | Synchromesh | 8712150 |
| 57 | Ring | 8719924 |
| 58 | Ring | 8719916 |
| 59 | Locking spring | 8715120 |
| 59B | Locking spring | 8700429 |
| 60 | Locking spring | 8711103 |
| 61 | Snap ring | 8704942 |
| 62B | Nut | 8718371 |
| 63 | Gear | 8720476 |
| 63D | Gear | 8720484 |
| 64 | Guide ring | 8781155 |
| 66 | Bearing bushing | 8700205 |
| 67 | Thrust washer | 8700239 |
| 68 | Gear | 8720468 |
| 69 | Guide ring | 8700361 |
| 70 | Gear | 8714933 |
| 70 | Gear | 8722266 |
| 71 | Gear | 8714925 |
| 72 | Shim | 8703340 |
| 72 | Shim | 8703357 |
| 72 | Shim | 8703365 |
| 73 | Nut | 8702359 |
| 74 | Roller bearing | 8729105 (replaces 8341034) |
| 74 | Roller bearing | 8729105 (replaces 8725194) |
| 75 | Sleeve | 8703530 |
| 76 | Adjusting washer | 8341752 |
| 76 | Adjusting washer | 8724569 |
| 76 | Adjusting washer | 8341760 |
| 76 | Adjusting washer | 8724577 |
| 76 | Adjusting washer | 8341778 |
| 76 | Adjusting washer | 8724585 |
| 76 | Adjusting washer | 8344723 |
| 76 | Adjusting washer | 8724593 |
| 77 | Bearing housing | 8720732 |
| 78 | Screw | 8718942 |
| 79 | Final drive | 8715765 |
| 80 | Intermediate shaft | 9321266 |
| 80 | Intermediate shaft | 9337437 |
| 82 | Thrust washer | 8712887 |
| 82A | Thrust washer | 8718645 |
| 83 | Gear | 8718637 |
| 84 | Gear | 8718629 |
| 85 | Snap ring | 8728198 (replaces 8047813) |
| 86 | Sleeve | 8712655 |
| 87 | Roller | 8714693 |
| 88 | Needle bearing | 8718660 |
| 89 | Needle bearing | 8712853 |
| 90 | Lock plate | 8700114 |
| 91 | Screw | 8718843 |
| 92 | Gear | 8714974 |
| 93 | Bushing | 8715229 |
| 94 | Shaft | 8700130 |
| 95 | Shift rail | 8700585 |
| 96 | Shift rail | 8721318 |
| 97 | Gear selector fork | 8713091 |
| 98 | Gear selector fork | 8700619 |
| 99 | Gear selector fork | 8713638 |
| 100 | Gear selector fork | 8712929 |
| 101 | Lever | 8702045 |
| 102 | Roll pin | 8117715 |
| 103 | Bearing sleeve | 8713000 |
| 104 | Screw | 8715062 |
| 105 | Washer | 8029969 |
| 106 | Nut lock | 7496268 |
| 106 | Nut lock | 7496276 |
| Pinion bearing kit | 8780454 |
