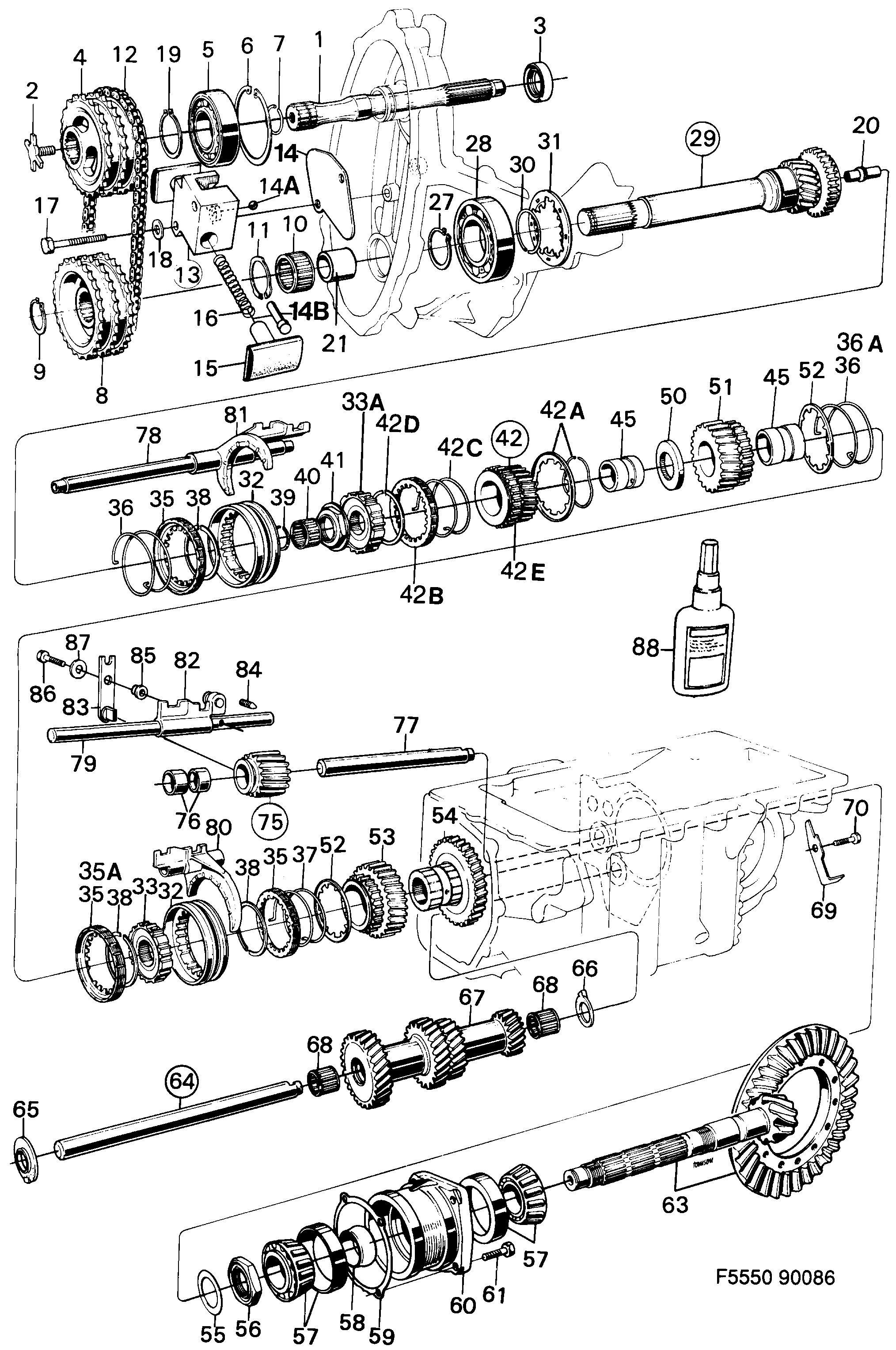

Group 4 Transmission, section 340
| Pos | Article | Part No. |
|---|---|---|
| Transmission | 8720963 | |
| Transmission | 8723793 | |
| 1 | Clutch shaft | 8711350 |
| 2 | Screw | 8711038 |
| 3 | Seal | 8710881 |
| 4 | Chain gear | 8711582 |
| 5 | Roller bearing | 8710865 |
| 6 | Snap ring | 8711376 |
| 7 | Lock ring | 8704777 |
| 8 | Chain gear | 8711400 |
| 9 | Snap ring | 8714677 |
| 10 | Needle bearing | 8711384 |
| 11 | Snap ring | 8711947 |
| 12 | Chain | 8711590 |
| 13 | Chain tensioner | 8713570 |
| 14 | Plate | 8713513 |
| 14A | Ball | 8713554 |
| 14B | Plug | 8713539 |
| 15 | Tightener shoe | 8713497 |
| 16 | Spring | 8713521 |
| 17 | Screw | 8083982 |
| 17 | Screw | 8722555 |
| 18 | Washer | 92153033 (replaces 8029985) |
| 19 | Snap ring | 8047839 |
| 20 | Tube | 8713158 |
| 21 | Sleeve | 8704611 |
| 27 | Snap ring | 8047854 |
| 28 | Ball bearing | 8700767 |
| 29 | Shaft | 8715872 |
| 30 | Lock ring | 8713224 |
| 31 | Guide ring | 8711954 |
| 32 | Sleeve | 8720419 |
| 33 | Synchromesh | 8712150 |
| 33A | Synchromesh | 8712283 |
| 35 | Ring | 8719924 |
| 35A | Ring | 8719916 |
| 36 | Locking spring | 8700429 |
| 36A | Locking spring | 8715120 |
| 37 | Locking spring | 8711103 |
| 38 | Snap ring | 8704942 |
| 39 | Spring clip | 7951437 |
| 40 | Needle bearing | 8700478 |
| 41 | Nut | 8704108 |
| 42 | Gear | 8720476 |
| 42E | Gear | 8720484 |
| 42A | Guide ring | 8781155 |
| 45 | Bearing bushing | 8700205 |
| 50 | Thrust washer | 8700239 |
| 51 | Gear | 8720468 |
| 52 | Guide ring | 8700361 |
| 53 | Gear | 8714933 |
| 53 | Gear | 8722266 |
| 54 | Gear | 8714925 |
| 55 | Shim | 8703340 |
| 55 | Shim | 8703357 |
| 55 | Shim | 8703365 |
| 56 | Nut | 8702359 |
| 57 | Roller bearing | 8729105 (replaces 8341034) |
| 57 | Roller bearing | 8729105 (replaces 8725194) |
| 58 | Sleeve | 8703530 |
| 59 | Adjusting washer | 8341752 |
| 59 | Adjusting washer | 8724569 |
| 59 | Adjusting washer | 8341760 |
| 59 | Adjusting washer | 8724577 |
| 59 | Adjusting washer | 8341778 |
| 59 | Adjusting washer | 8724585 |
| 59 | Adjusting washer | 8344723 |
| 59 | Adjusting washer | 8724593 |
| 60 | Bearing housing | 8720732 |
| 61 | Screw | 8718942 |
| 63 | Final drive | 8715799 |
| 64 | Intermediate shaft | 9321241 |
| 65 | Thrust washer | 8711327 |
| 66 | Thrust washer | 8712325 |
| 67 | Gear | 8718678 |
| 68 | Needle bearing | 8718660 |
| 69 | Lock plate | 8700114 |
| 70 | Screw | 8718843 |
| 75 | Gear | 8714974 |
| 76 | Bushing | 8715229 |
| 77 | Shaft | 8700130 |
| 78 | Shift rail | 8700585 |
| 79 | Shift rail | 8721326 |
| 80 | Gear selector fork | 8713091 |
| 81 | Gear selector fork | 8700619 |
| 82 | Companion flange | 8714792 |
| 83 | Lever | 8702045 |
| 84 | Roll pin | 8117715 |
| 85 | Bearing sleeve | 8702086 |
| 86 | Screw | 8715054 |
| 87 | Washer | 8029969 |
| 88 | Nut lock | 7496268 |
| 88 | Nut lock | 7496276 |
| Pinion bearing kit | 8780454 |
