Saab 900 1990-1993 Differential

Group 4 Transmission, section 320

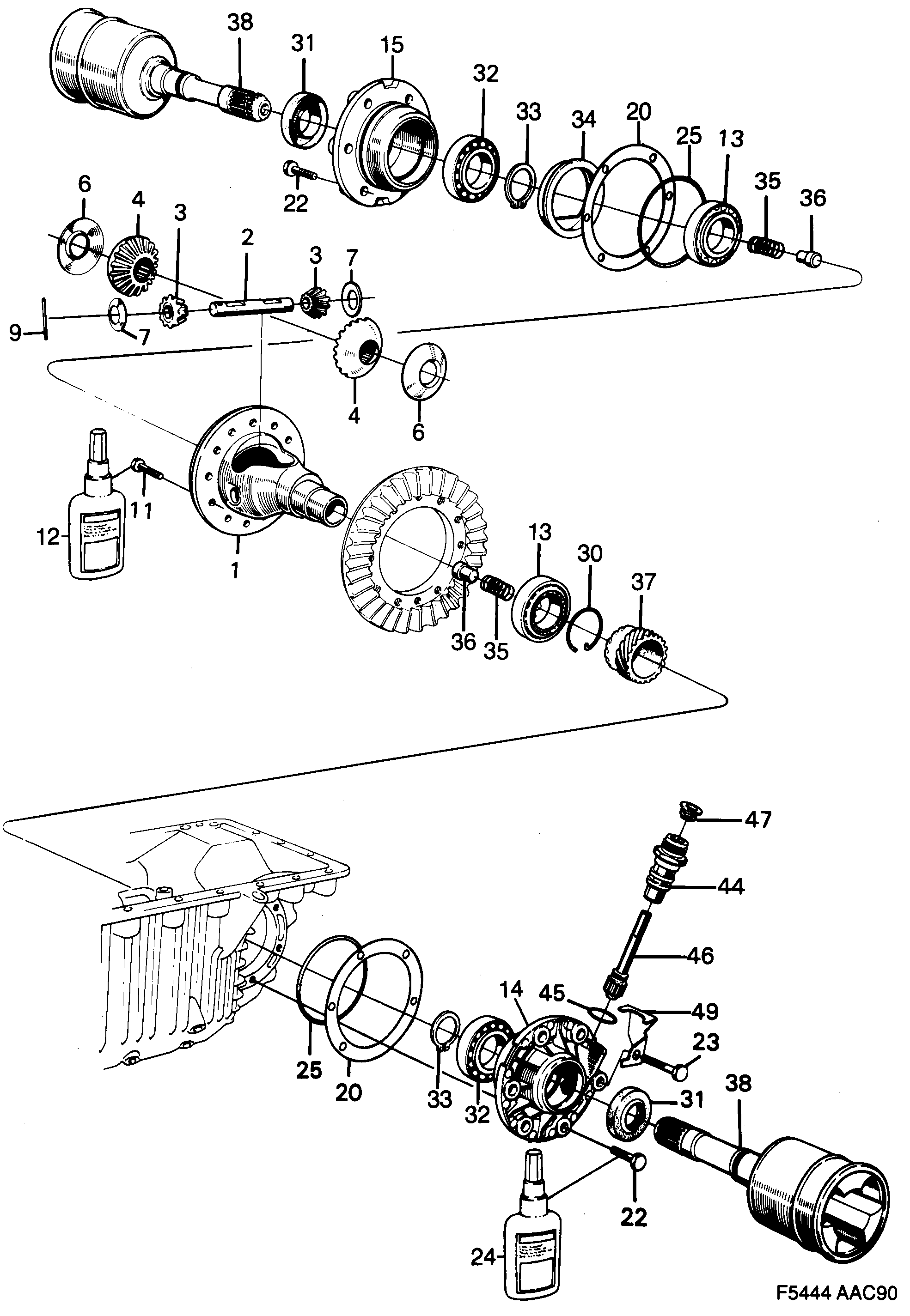

Saab 900 Differential diagram

Pos	Article	Part No.
1	Differential housing	8719890
2	Differential shaft	8719940
3	Differential pinion	8781858 (replaces 8729394)
4	Differential side gear	8781858 (replaces 8729386)
6	Washer	8719882
6	Washer	8731796
7	Washer	90490816 (replaces 8719874)
7	Washer	90490816 (replaces 8731788)
9	Cotter pin	8049702
11	Screw	8718140
12	Nut lock	7496268
13	Pinion bearing	8704389 (replaces 8708836)
13	Roller bearing	8704389
14	Bearing seat	8711160
15	Bearing seat	8704280
20	Shim	8341604
20	Shim	8341612
20	Shim	8341620
20	Shim	8341638
22	Screw	8083941
22	Screw	8125205
23	Screw	8083974
23	Screw	8722555
24	Hydraulic sealant	7496284
25	O-ring	8728156
30	Stop ring	8704421
31	Sealing collar	8731804 (replaces 8704298)
31	Sealing collar	8731804
32	Ball bearing	8704306
33	Snap ring	8728198
33	Lock ring	8728198 (replaces 7915200)
34	Washer	8710360
35	Spring	8704314
36	Plunger	8704322
37	Drive gear	8704413
38	Companion flange	8722472
44	Sleeve	8724866
45	O-ring	8711707
46	Gear	8723900
47	Seal	8724874
49	Lock plate	8711723
	Gasket kit	7496003
