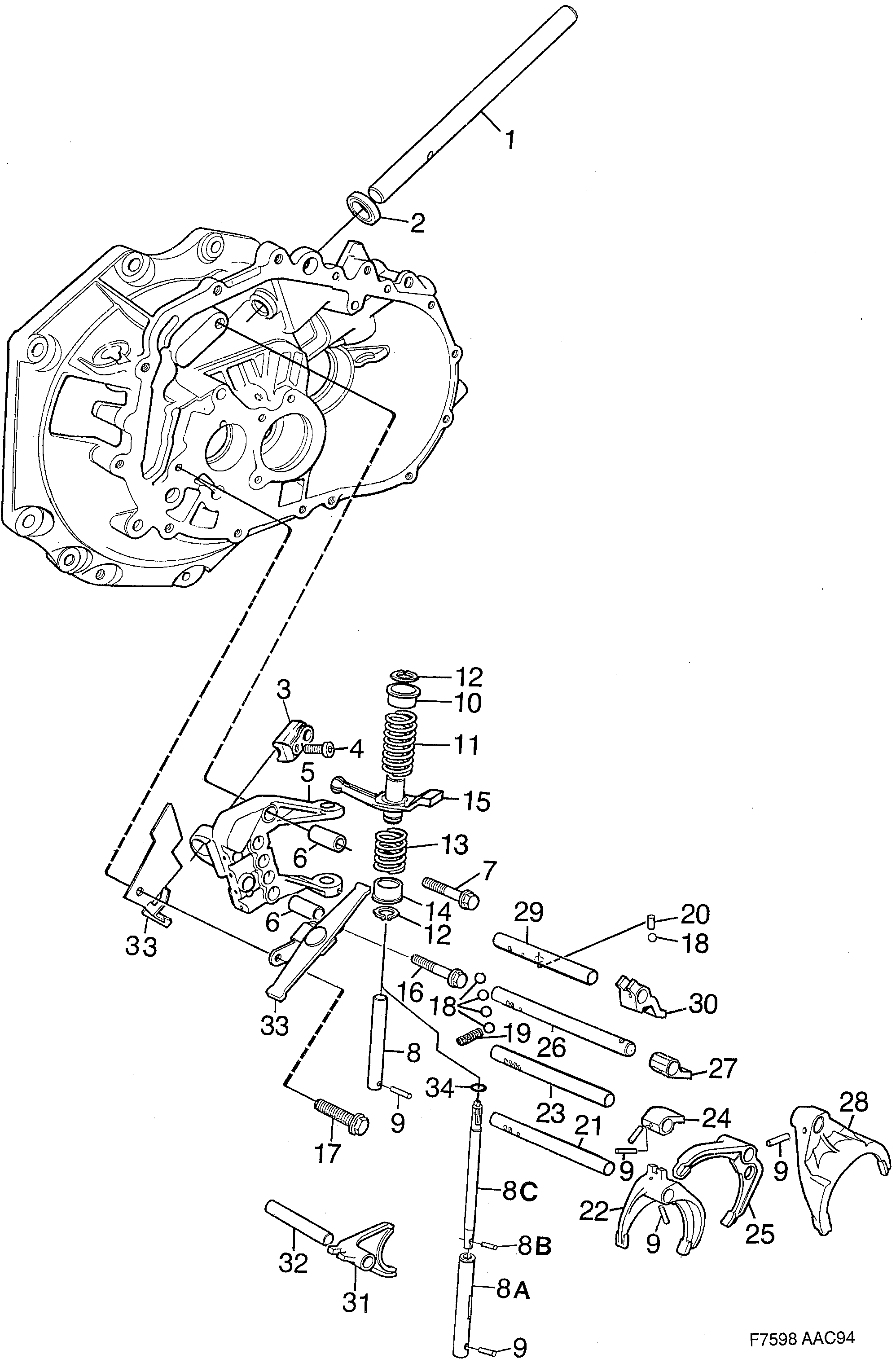

Group 4 Transmission, section 300
| Pos | Article | Part No. |
|---|---|---|
| 1 | Gear rod | 8739781 |
| 3 | Companion flange | 55557112 (replaces 8735276) |
| 4 | Screw | 92151830 (replaces 8059792) |
| 5 | Bearing bracket | 55557115 (replaces 8734808) |
| 6 | Guide sleeve | 30516581 (replaces 8719650) |
| 7 | Flange screw | 55561609 (replaces 7972714) |
| 8 | Pivot pin | 90486075 (replaces 8721557) |
| 8 | Pivot pin | 90540917 (replaces 8746216) |
| 8A | Shaft | 8733719 |
| 8B | Pin | 4580908 (replaces 8049363) |
| 8B | Pin | 4580908 |
| 8C | Shaft | 8737694 |
| 8C | Shaft | 4625265 |
| 9 | Pin | 8117657 |
| 10 | Guide | 90486076 (replaces 8721565) |
| 11 | Spring | 55354962 (replaces 8721573) |
| 12 | Snap ring | 8726754 |
| 13 | Spring | 55354961 (replaces 8721615) |
| 14 | Spring guide | 90486137 (replaces 8721623) |
| 15 | Gear selector | 55555654 (replaces 8741381) |
| 15 | Gear selector | 8741431 |
| 17 | Screw | 7973779 |
| 18 | Ball | 90486180 (replaces 8717027) |
| 19 | Spring | 90486181 (replaces 8723397) |
| 20 | Pin | 90486182 (replaces 8719684) |
| 21 | Shift rail | 93177640 (replaces 8741043) |
| 22 | Gear selector fork | 90486207 (replaces 8734741) |
| 23 | Shift rail | 30546055 (replaces 8731077) |
| 24 | Companion flange | 90512193 (replaces 8719593) |
| 24 | Companion flange | 90512193 (replaces 8740649) |
| 25 | Gear selector fork | 90444583 (replaces 8727869) |
| 26 | Shift rail | 93177642 (replaces 8740714) |
| 27 | Companion flange | 90512195 (replaces 8719601) |
| 27 | Companion flange | 90512195 (replaces 8740656) |
| 28 | Gear selector fork | 90544044 (replaces 8735755) |
| 28 | Gear selector fork | 90544044 (replaces 8746638) |
| 29 | Shift rail | 93177643 (replaces 8735656) |
| 30 | Companion flange | 90540922 (replaces 8740151) |
| 30 | Companion flange | 90540922 (replaces 8741811) |
| 30 | Companion flange | 90540922 (replaces 8746190) |
| 31 | Gear selector fork | 90511047 (replaces 8735599) |
| 32 | Shift rail | 30546049 (replaces 8730111) |
| 33 | Lever | 90511049 (replaces 8735102) |
| 33 | Lever | 12791531 (replaces 8745630) |
| 34 | Seal | 8724874 |
