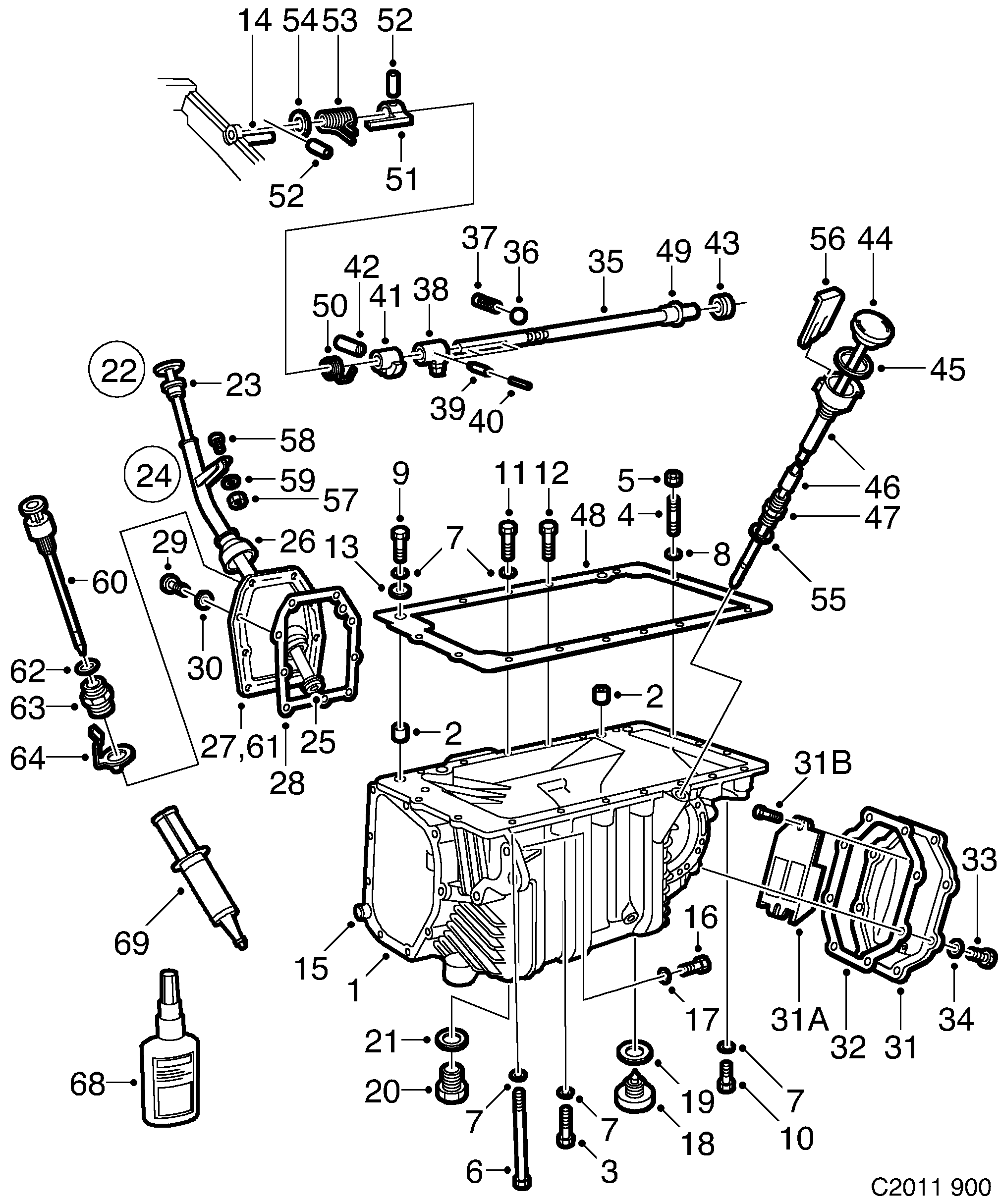

Group 4 Transmission, section 280
| Pos | Article | Part No. |
|---|---|---|
| 1 | Transmission housing | 8721300 |
| 1 | Transmission housing | 8726309 |
| 2 | Guide sleeve | 8300725 |
| 3 | Screw | 8125213 (replaces 8083958) |
| 4 | Screw | 9346388 |
| 4 | Stud | 8005928 |
| 5 | Nut | 8074106 |
| 5 | Nut | 8151235 |
| 6 | Screw | 7965569 |
| 7 | Washer | 92153033 (replaces 8029985) |
| 8 | Seal | 8981987 (replaces 9328824) |
| 9 | Screw | 9346354 |
| 10 | Screw | 55562873 (replaces 8082968) |
| 11 | Screw | 9346362 |
| 12 | Screw | 9346370 |
| 13 | Washer | 7061328 |
| 14 | Roll pin | 8049876 |
| 15 | Guide pin | 12755009 (replaces 8723967) |
| 18 | Drain plug | 8717407 |
| 19 | Gasket | 8717415 |
| 20 | Drain plug | 8731762 (replaces 8711871) |
| 21 | Gasket | 8718439 |
| 22 | Dipstick | 7544547 |
| 22 | Dipstick | 7546872 (replaces 8334526) |
| 22 | Dipstick | 7547201 |
| 22 | Dipstick | 7546872 |
| 23 | O-ring | 7971948 |
| 24 | Tube | 7544554 |
| 24 | Tube | 7549231 |
| 24 | Tube | 7542921 |
| 24 | Tube | 7542939 |
| 24 | Tube | 9369661 |
| 24 | Tube | 7549504 |
| 24 | Tube | 7542947 |
| 24 | Tube | 9369521 |
| 25 | O-ring | 7971930 |
| 26 | Cup | 8334401 |
| 26 | Cup | 7554363 |
| 27 | Cover | 8715377 |
| 28 | Gasket | 8728677 (replaces 8715393) |
| 28 | Gasket | 8728677 (replaces 8725053) |
| 29 | Screw | 8082935 |
| 29 | Screw | 7970015 |
| 31 | Cover | 8723470 |
| 31 | Cover | 8727729 |
| 31A | Filter | 8727711 |
| 31B | Screw | 8019945 |
| 32 | Gasket | 8728651 (replaces 8718785) |
| 32 | Gasket | 8725038 |
| 33 | Screw | 8083933 |
| 35 | Shaft | 8712192 |
| 35 | Gear rod | 8722803 |
| 36 | Ball | 8341257 |
| 37 | Spring | 8719775 |
| 38 | Companion flange | 8343014 |
| 39 | Roll pin | 8049553 |
| 40 | Roll pin | 7956154 |
| 41 | Latch | 8712945 |
| 42 | Pin | 8712952 |
| 43 | Seal | 8730764 (replaces 8344335) |
| 44 | Dipstick | 9361650 |
| 44 | Dipstick | 7514201 |
| 45 | Ring-gland | 55557303 (replaces 9361544) |
| 46 | Oil filler | 9368200 |
| 47 | Nipple | 9361452 |
| 48 | Gasket | 7510241 |
| Flange sealant | 93165267 (replaces 8781841) | |
| 49 | Bushing | 8711608 |
| 50 | Spring | 8713166 |
| 51 | Companion flange | 8722720 |
| 53 | Spring | 8722829 |
| 54 | Washer | 8722837 |
| 55 | Washer | 9361627 |
| 56 | Plate | 9362542 |
| 57 | Lock nut | 55557005 (replaces 7965767) |
| 57 | Nut | 8151227 (replaces 8029555) |
| 58 | Screw | 55562121 (replaces 7967938) |
| 58 | Screw | 7977499 (replaces 8019978) |
| 59 | Washer | 8029951 |
| 60 | Dipstick | 8124182 (replaces 8728396) |
| 61 | Cover | 8728149 |
| 62 | O-ring | 8109647 |
| 63 | Nipple | 8726770 |
| 64 | Spring | 8727737 |
| 68 | Hydraulic sealant | 7496284 |
| 69 | Flange sealant | 90297970 |
| Gasket kit | 7496003 |
