Saab 900 1986-1989 Primary gear case

Group 4 Transmission, section 250

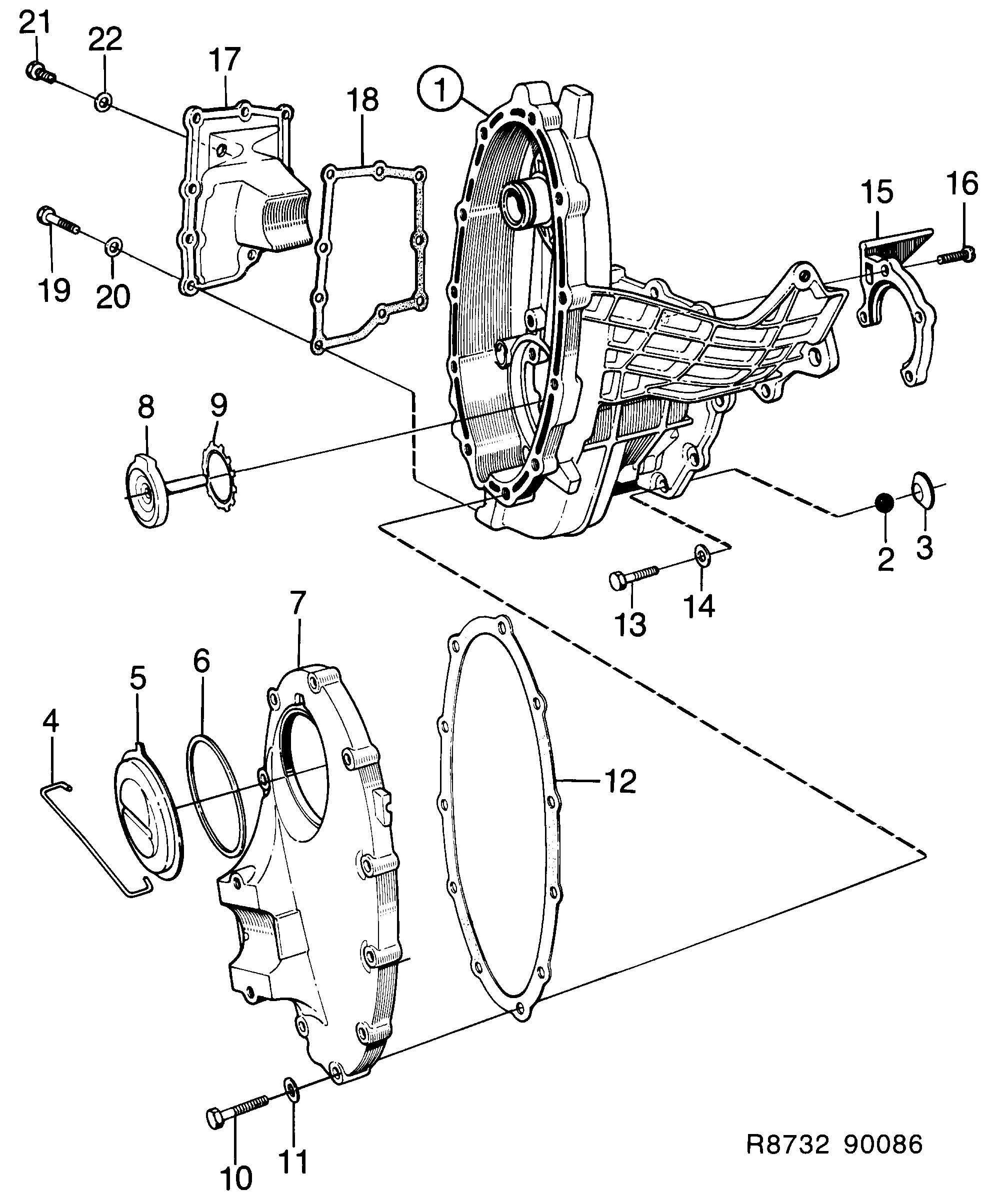

Saab 900 Primary gear case diagram

Pos	Article	Part No.
1	Gear housing	8713612
1	Gear housing	8722795
1	Gear housing	8726374
2	Ball	8713604
3	Spring disc	8715351
4	Brace	8710303
5	Cover	8710956
6	Gasket	8713216
7	Cover	8721177
7	Cover	8722712
7	Cover	8726895
8	Oil collector	8721201
9	Lock ring	8721235
10	Screw	8125213 (replaces 8083958)
11	Washer	92153033 (replaces 8029985)
12	Gasket	8732380 (replaces 8712903)
12	Gasket	8732380 (replaces 8725012)
13	Screw	8083933
15	Bearing shield	8719494
16	Screw	8721334
17	Cover	8721821
18	Gasket	8732398 (replaces 8712986)
18	Gasket	8732398 (replaces 8725020)
21	Screw	8723405
22	Gasket	11066422 (replaces 8124133)
	Gasket kit	7496003
