Saab 900 1994-1998 Gear box case

Group 4 Transmission, section 240

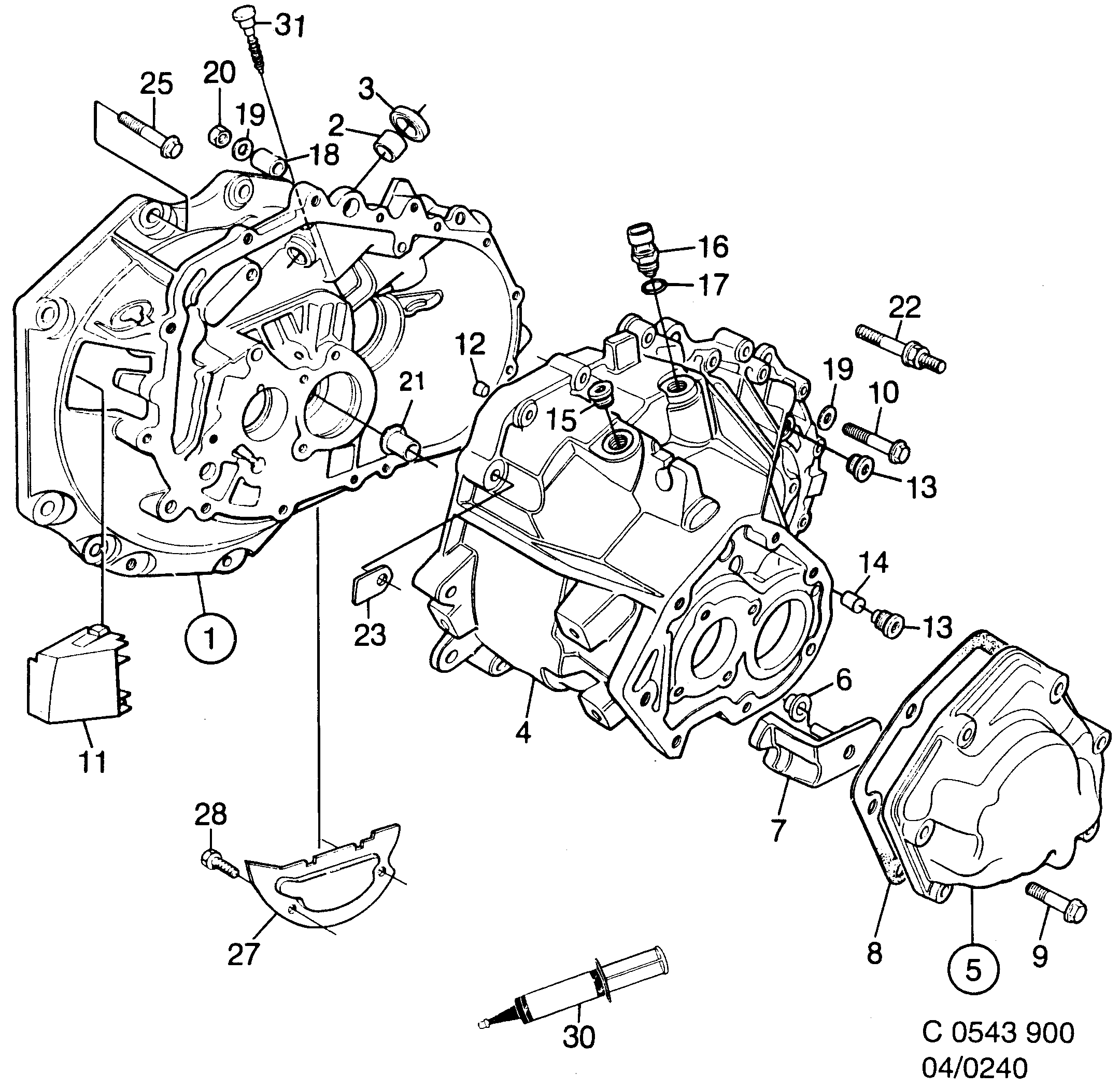

Saab 900 Gear box case diagram

Pos	Article	Part No.
1	Bell housing	8748188 (replaces 8737090)
1	Bell housing	8747321
1	Bell housing	5590286
1	Bell housing	8747339
1	Bell housing	8735250
1	Bell housing	90542110 (replaces 8747347)
2	Bushing	30546057 (replaces 8731143)
3	Seal	90511282 (replaces 8734998)
3	Seal	90511282 (replaces 8741878)
4	Transmission housing	8744047 (replaces 8735268)
4	Transmission housing	8744047
4	Transmission housing	8744211 (replaces 8737660)
4	Transmission housing	8744211
5	Cover	8734733
5	Cover	90544119 (replaces 8746463)
6	Washer	90486024 (replaces 8734105)
7	Oil collector	30546087 (replaces 8734097)
8	Gasket	90486235 (replaces 8734824)
9	Flange screw	55561609 (replaces 7972714)
11	Cover	21018743 (replaces 8734816)
12	Sintered compact	90512565 (replaces 8701658)
13	Plug	55568847 (replaces 8734873)
13	Plug	55568847 (replaces 8743858)
14	Magnet	3449250 (replaces 8734881)
15	Plug	4776266
16	Back-up light contact	90482454 (replaces 4232666)
16	Back-up light contact	90482454 (replaces 4617668)
17	Gasket	12755014 (replaces 4346748)
17	Gasket	12755014 (replaces 4940169)
18	Guide pin	12755009 (replaces 8723967)
19	Washer	7061328
20	Nut	8074106
21	Sleeve	90121130 (replaces 8730665)
22	Flange screw	55561710 (replaces 8738411)
23	Bracket	8739682
25	Screw	55557007 (replaces 7984297)
25	Hexagon screw	92150043 (replaces 7982606)
27	Baffle	4235636
27	Baffle	4729158 (replaces 4235651)
27	Baffle	4729158
28	Hexagon screw	4346235
30	Flange sealant	90297970
31	Plug	90105651 (replaces 4387544)
	Gasket kit	8781494
