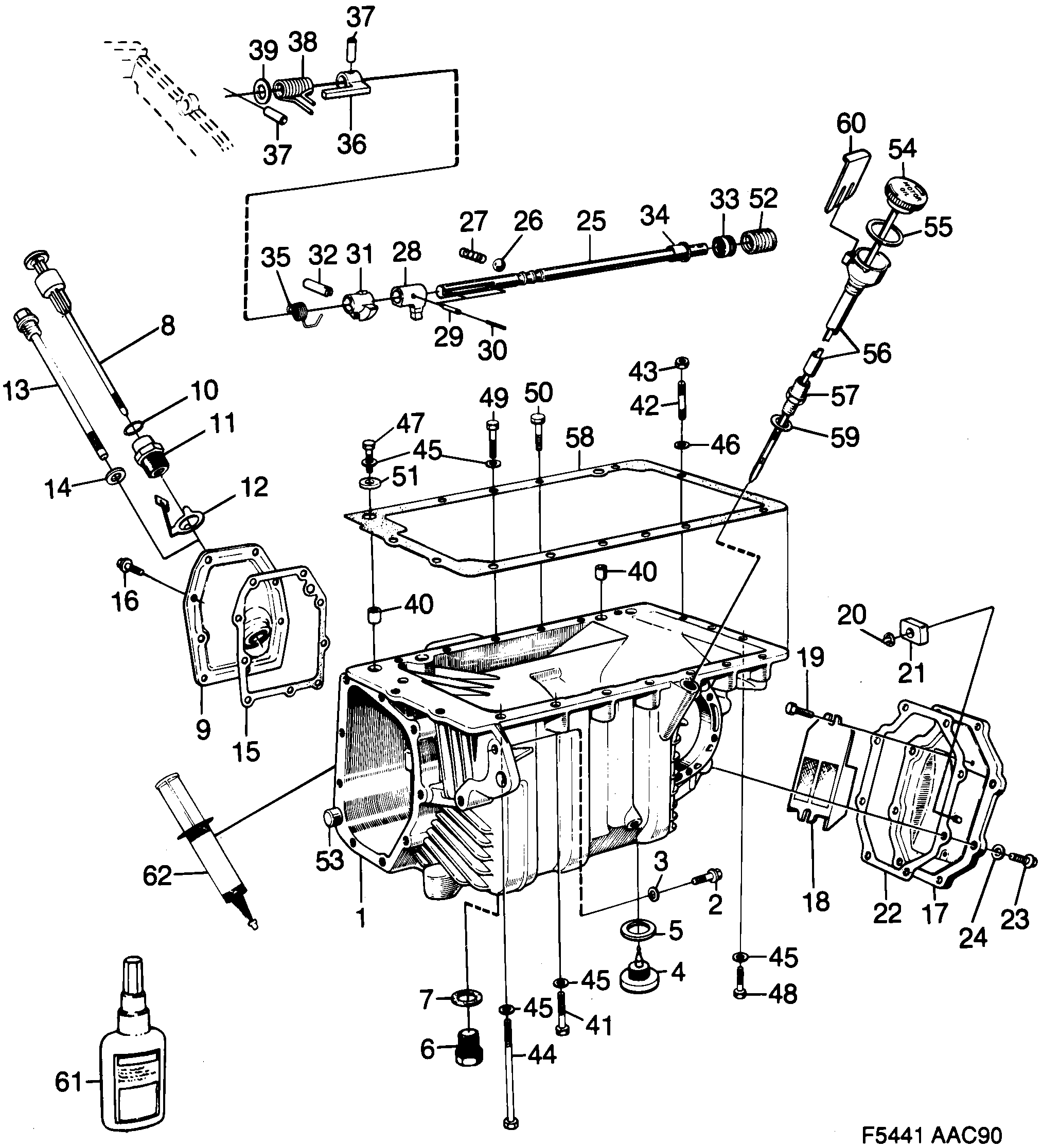

Group 4 Transmission, section 230
| Pos | Article | Part No. |
|---|---|---|
| 1 | Transmission housing | 8726309 |
| 1 | Transmission housing | 8733362 (replaces 8728875) |
| 1 | Transmission housing | 8733362 |
| 2 | Screw | 55562873 (replaces 8082968) |
| 2 | Screw | 8125189 |
| 3 | Washer | 92153033 (replaces 8029985) |
| 4 | Drain plug | 8717407 |
| 5 | Gasket | 8717415 |
| 6 | Drain plug | 8731762 (replaces 8711871) |
| 6 | Drain plug | 8731762 (replaces 8728065) |
| 6 | Drain plug | 8731762 |
| 7 | Gasket | 8718439 |
| 7 | Gasket | 8728057 |
| 8 | Dipstick | 8124182 (replaces 8728396) |
| 9 | Cover | 8728149 |
| 10 | O-ring | 8109647 |
| 11 | Nipple | 8726770 |
| 12 | Spring | 8727737 |
| 13 | Dipstick | 8729345 |
| 14 | Gasket | 8124182 |
| 15 | Gasket | 8728677 |
| 16 | Screw | 7970015 |
| 16 | Screw | 8125197 |
| 17 | Cover | 8727729 |
| 17 | Cover | 8729303 |
| 18 | Filter | 8727711 |
| 19 | Screw | 8019945 |
| 20 | Washer | 7977507 |
| 21 | Magnet | 8727745 |
| 22 | Gasket | 8728651 |
| 23 | Screw | 8083933 |
| 25 | Gear rod | 8722803 |
| 26 | Ball | 8341257 |
| 27 | Spring | 8719775 |
| 28 | Companion flange | 8343014 |
| 28 | Companion flange | 8729808 |
| 29 | Roll pin | 8049553 |
| 30 | Roll pin | 7956154 |
| 31 | Latch | 8712945 |
| 32 | Pin | 8712952 |
| 33 | Seal | 8730764 (replaces 8344335) |
| 34 | Bushing | 8711608 |
| 35 | Spring | 8713166 |
| 36 | Companion flange | 8722720 |
| 38 | Spring | 8722829 |
| 38 | Spring | 8729790 |
| 39 | Washer | 8722837 |
| 40 | Guide sleeve | 8300725 |
| 41 | Screw | 8125213 (replaces 8083958) |
| 42 | Stud | 8005928 |
| 43 | Nut | 8151235 |
| 44 | Screw | 7965569 |
| 45 | Washer | 32000432 (replaces 9166372) |
| 46 | Seal | 8981987 (replaces 9328824) |
| 47 | Screw | 9346354 |
| 48 | Screw | 9166331 |
| 49 | Screw | 9346362 |
| 50 | Screw | 9346370 |
| 51 | Washer | 7061328 |
| 52 | Sealing bellows | 4118238 |
| 53 | Guide pin | 12755009 (replaces 8723967) |
| 54 | Dipstick | 7514201 |
| 55 | Ring-gland | 55557303 (replaces 9361544) |
| 56 | Oil filler | 9368200 |
| 57 | Nipple | 9361452 |
| 58 | Gasket | 7510241 |
| Flange sealant | 93165267 (replaces 8781841) | |
| 59 | Washer | 9361627 |
| 60 | Plate | 9362542 |
| 61 | Hydraulic sealant | 7496284 |
| 62 | Flange sealant | 90297970 |
| Gasket kit | 7496003 |
