Saab 900 1986-1988 Gear box case, oil pan -1988

Group 4 Transmission, section 220

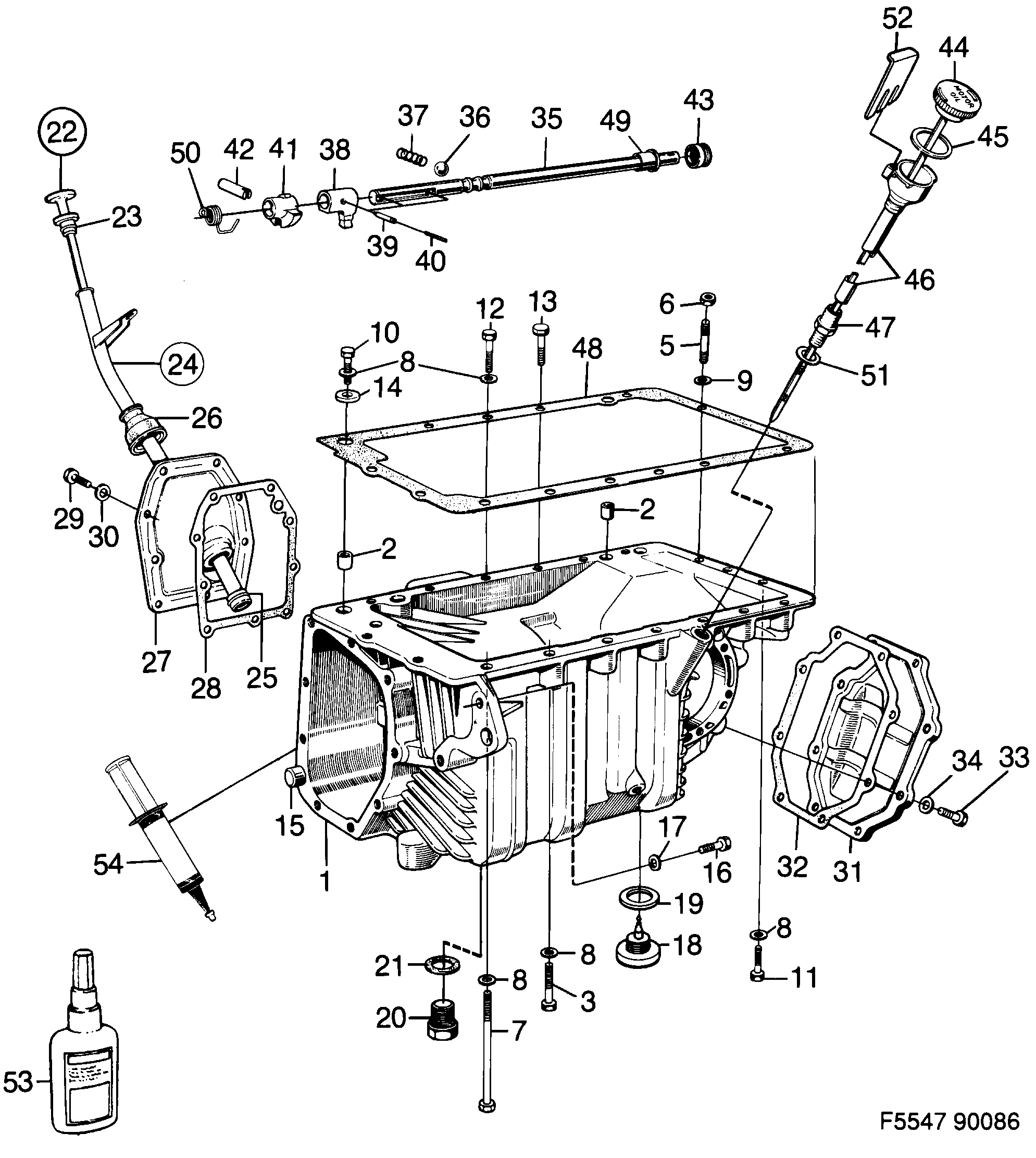

Saab 900 Gear box case, oil pan -1988 diagram

Pos	Article	Part No.
1	Transmission housing	8721300
2	Guide sleeve	8300725
3	Screw	8125213 (replaces 8083958)
5	Screw	9346388
5	Stud	8005928
6	Nut	8074106
6	Nut	8151235
7	Screw	7965569
8	Washer	92153033 (replaces 8029985)
9	Seal	8981987 (replaces 9328824)
10	Screw	9346354
11	Screw	55562873 (replaces 8082968)
12	Screw	9346362
13	Screw	9346370
14	Washer	7061328
15	Guide pin	12755009 (replaces 8723967)
18	Drain plug	8717407
19	Gasket	8717415
20	Drain plug	8731762 (replaces 8711871)
21	Gasket	8718439
22	Dipstick	7544547
22	Dipstick	7546872 (replaces 8334526)
23	O-ring	7971948
24	Tube	7544554
24	Tube	7549231
24	Tube	7542921
25	O-ring	7971930
26	Cup	8334401
27	Cover	8715377
28	Gasket	8728677 (replaces 8715393)
28	Gasket	8728677 (replaces 8725053)
29	Screw	8082943
31	Cover	8723470
32	Gasket	8728651 (replaces 8718785)
32	Gasket	8725038
33	Screw	8083933
35	Shaft	8712192
36	Ball	8341257
37	Spring	8719775
38	Companion flange	8343014
39	Roll pin	8049553
40	Roll pin	7956154
41	Latch	8712200
42	Pin	8712952
43	Seal	8730764 (replaces 8344335)
44	Dipstick	9361650
45	Ring-gland	55557303 (replaces 9361544)
46	Oil filler	9368200
47	Nipple	9361452
48	Gasket	7510241
	Flange sealant	93165267 (replaces 8781841)
49	Bushing	8711608
50	Spring	8712184
51	Washer	9361627
52	Plate	9362542
53	Hydraulic sealant	7496284
54	Flange sealant	90297970
	Gasket kit	7496003
