Saab 900 1986-1988 Primary gear case -1988

Group 4 Transmission, section 190

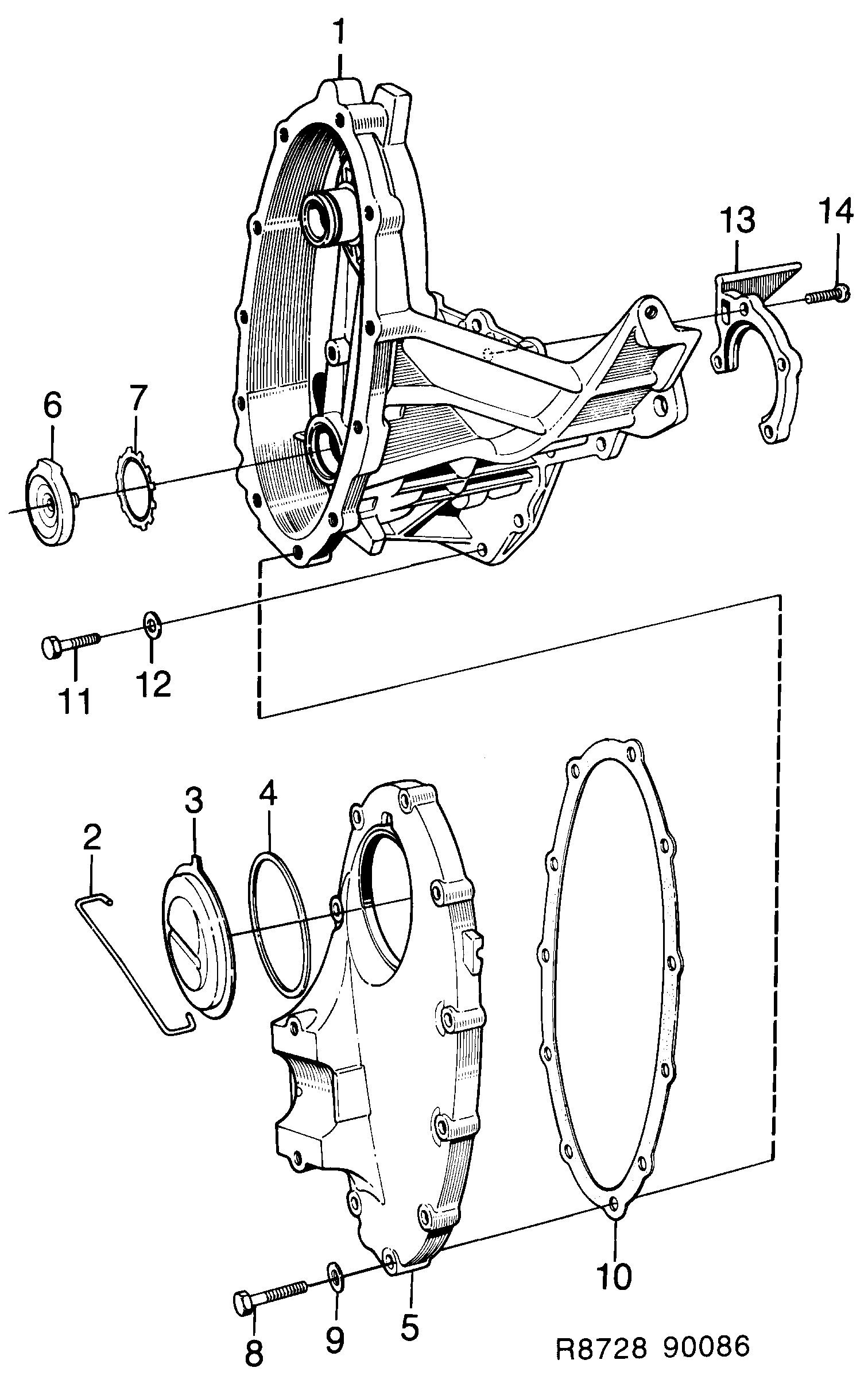

Saab 900 Primary gear case -1988 diagram

Pos	Article	Part No.
1	Gear housing	8704504
2	Brace	8710303
3	Cover	8710956
4	Gasket	8713216
5	Cover	8721185
6	Oil collector	8721201
7	Lock ring	8721235
8	Screw	8125213 (replaces 8083958)
9	Washer	92153033 (replaces 8029985)
10	Gasket	8732380 (replaces 8712903)
10	Gasket	8732380 (replaces 8725012)
11	Screw	8083933
13	Bearing shield	8700775
14	Screw	7982184 (replaces 8703852)
	Gasket kit	7496003
