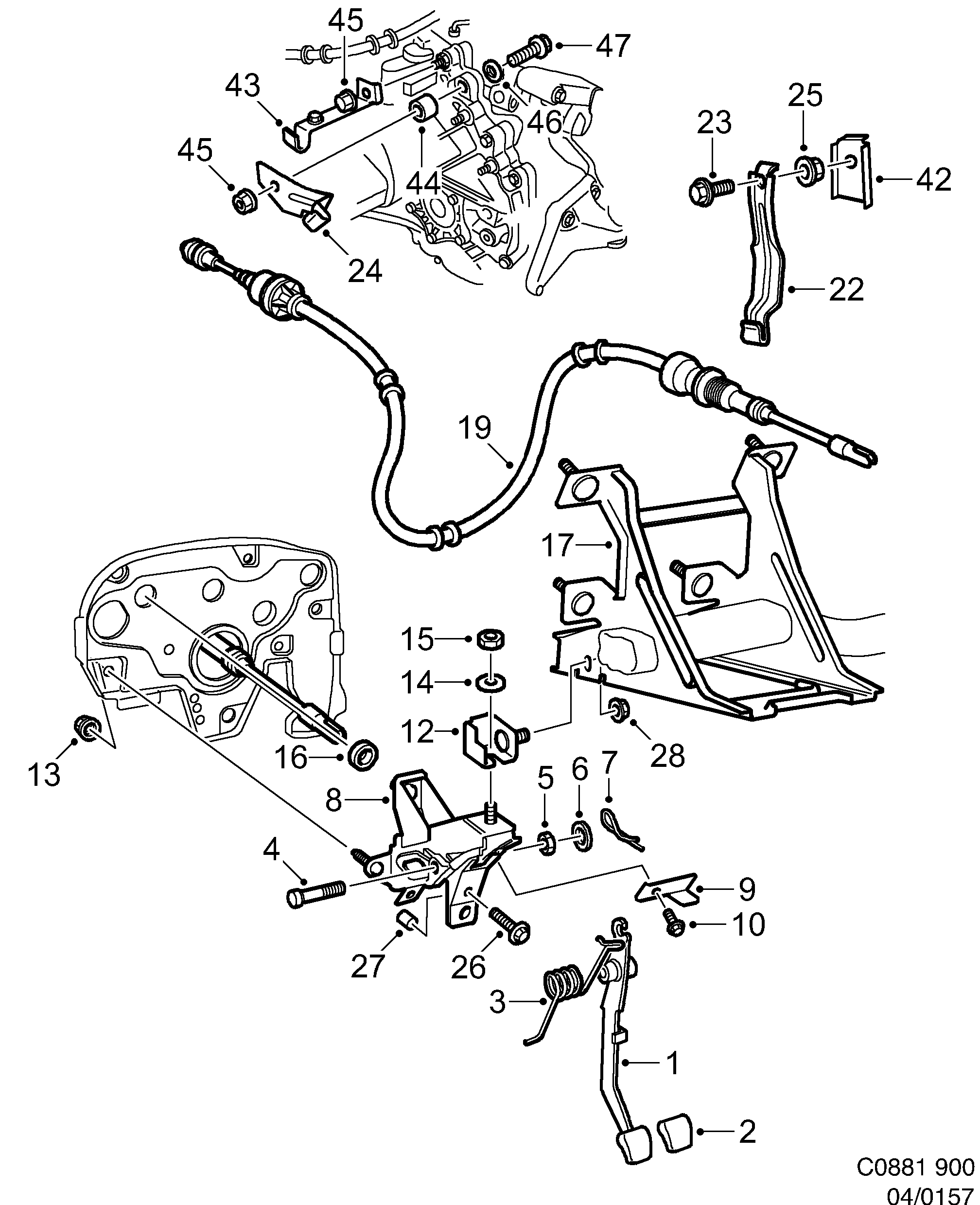

Group 4 Transmission, section 157
| Pos | Article | Part No. |
|---|---|---|
| 1 | Clutch pedal | 4483384 |
| 2 | Pedal pad | 90105172 (replaces 4241832) |
| 3 | Return spring | 4467288 |
| 4 | Screw | 4241865 |
| 5 | Washer | 8073108 |
| 6 | Hexagon nut | 4345120 |
| 7 | Lock spring | 90373365 (replaces 4241881) |
| 8 | Bracket | 4483483 |
| 8 | Bracket | 4483962 |
| 9 | Bracket | 4483301 |
| 10 | Screw | 7985138 |
| 12 | Pedal bracket | 90193009 (replaces 4212130) |
| 13 | Nut | 90191908 (replaces 4345419) |
| 14 | Washer | 4345344 |
| 15 | Lock nut | 55557005 (replaces 7965767) |
| 16 | Seal | 90342130 (replaces 4241873) |
| 19 | Cable | 4903639 (replaces 4490207) |
| 19 | Cable | 4901740 |
| 19 | Cable | 4903647 (replaces 4490215) |
| 22 | Bracket | 4490322 |
| 23 | Screw | 7978232 |
| 23 | Screw | 92153216 (replaces 7982325) |
| 24 | Bracket | 4490231 |
| 25 | Hexagon nut | 11900452 (replaces 7977952) |
| 26 | Screw | 8083933 |
| 27 | Rubber stop | 4483459 |
| 28 | Nut | 92150143 (replaces 7971922) |
| 42 | Bracket | 4903290 |
| 43 | Cable anchorage | 4903274 |
| 44 | Spacer sleeve | 4903175 |
| 46 | Washer | 7982317 |
| 47 | Screw | 11900373 (replaces 7982119) |
