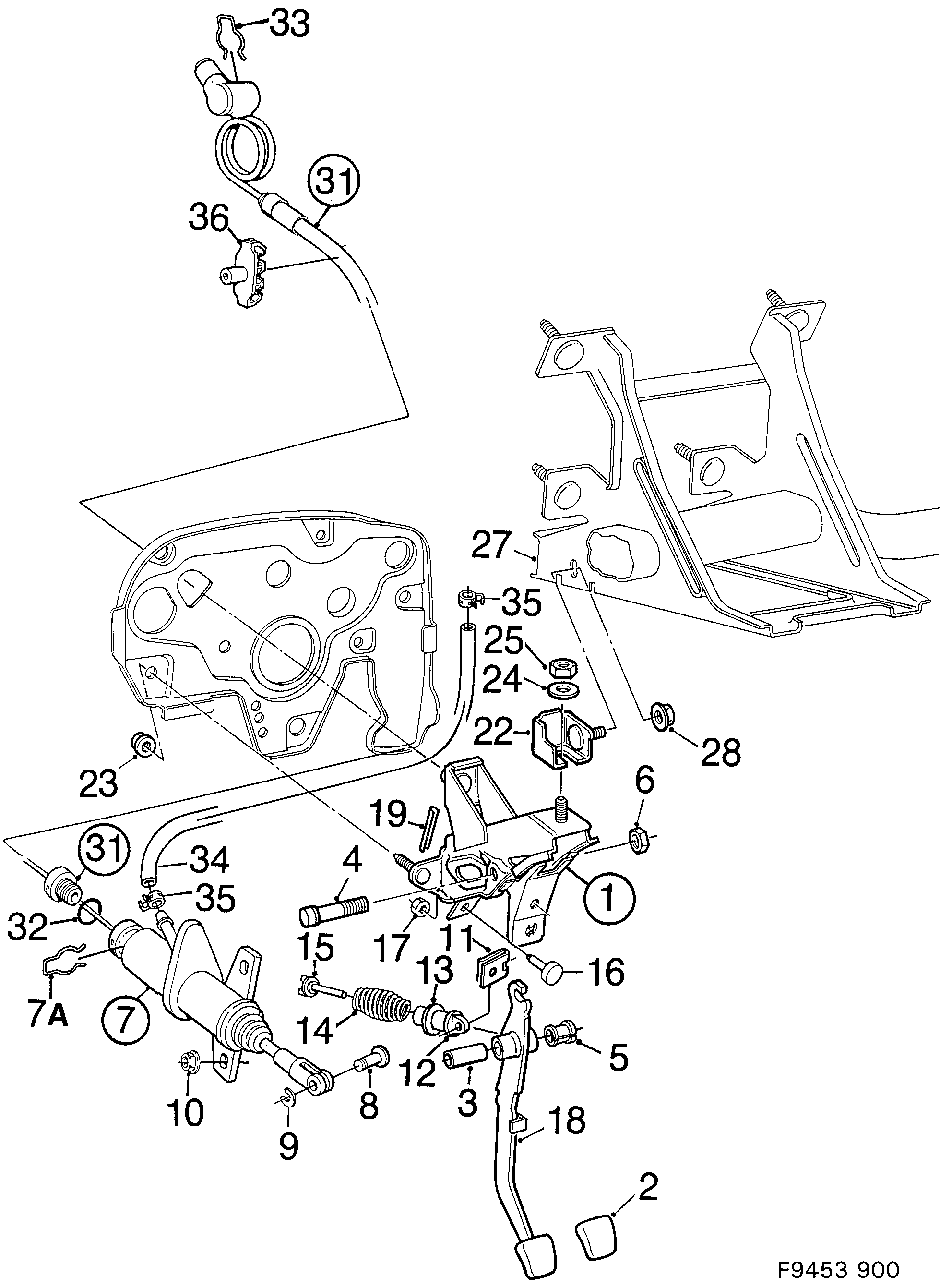

Group 4 Transmission, section 153
| Pos | Article | Part No. |
|---|---|---|
| 1 | Bracket | 4647962 |
| 1 | Bracket | 4838017 |
| 2 | Pedal pad | 90105172 (replaces 4241832) |
| 3 | Spacer tube | 4778080 |
| 4 | Screw | 7974777 |
| 5 | Bearing bushing | 8962128 |
| 6 | Lock nut | 7399801 |
| 7 | Master cylinder | 4626172 |
| 7A | Lock ring | 4940722 |
| 8 | Pin | 4925541 |
| 9 | Clip | 90278102 (replaces 4345443) |
| 10 | Lock nut | 55557005 (replaces 7965767) |
| 11 | Clip | 12780365 (replaces 8252553) |
| 12 | Spring guide | 4000568 |
| 13 | Shim | 4839304 |
| 14 | Helper spring | 4839296 |
| 15 | Spring guide | 8957813 |
| 16 | Pedal stop | 4839312 |
| 17 | Nut | 8074106 |
| 18 | Clutch pedal | 4649596 |
| 19 | Protecting moulding | 8278558 |
| 22 | Pedal bracket | 90193009 (replaces 4212130) |
| 23 | Nut | 90191908 (replaces 4345419) |
| 24 | Washer | 4345344 |
| 28 | Nut | 92150143 (replaces 7971922) |
| 31 | Clutch hose | 4925582 (replaces 4626065) |
| 32 | O-ring | 4940706 |
| 33 | Lock ring | 4940714 |
| 34 | Hose | 4626180 |
| 34 | Hose | 5259742 (replaces 4925806) |
| 35 | Hose clamp | 90530642 (replaces 7977697) |
| 36 | Clip | 4685533 |
