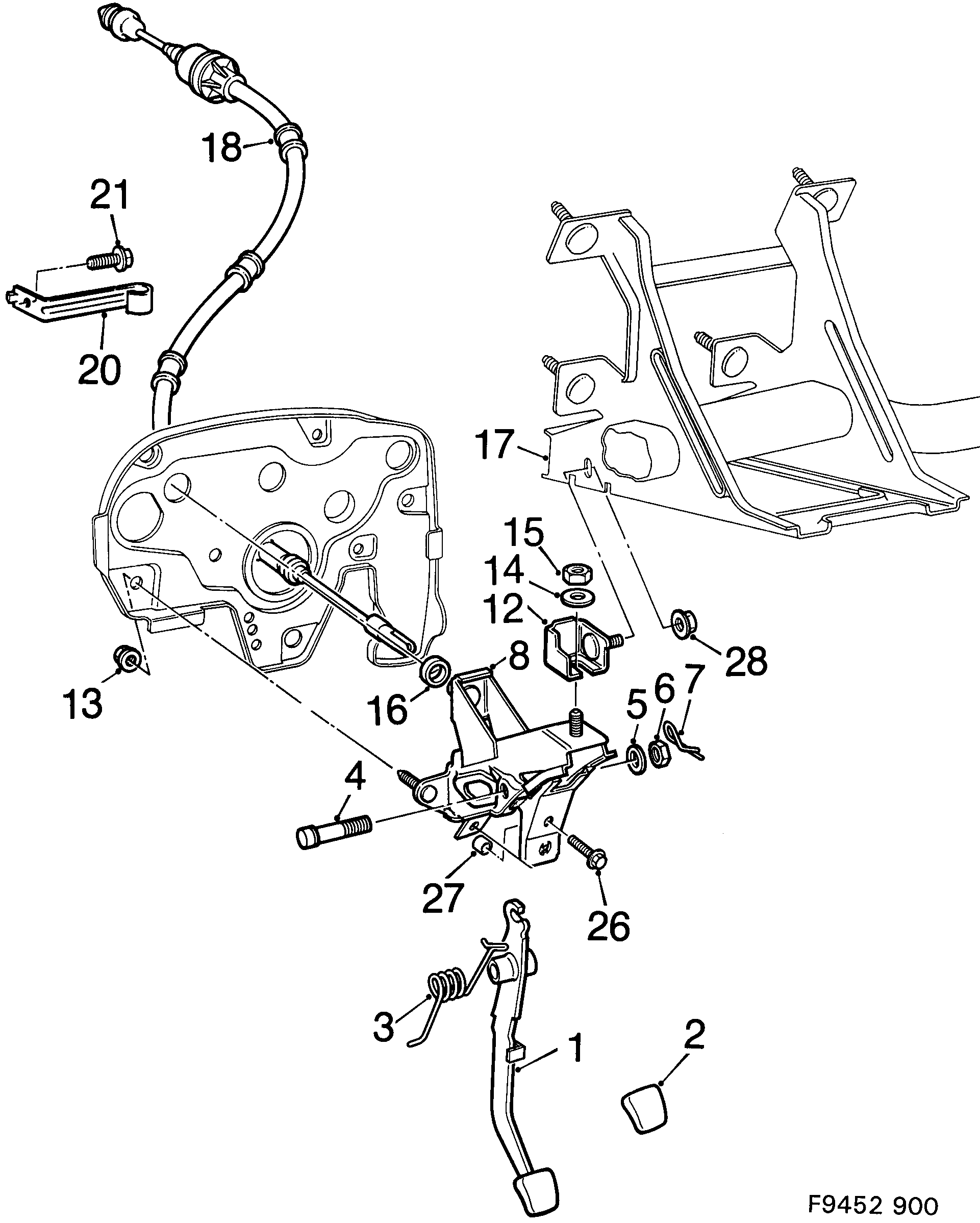

Group 4 Transmission, section 150
| Pos | Article | Part No. |
|---|---|---|
| 1 | Clutch pedal | 4483392 |
| 2 | Pedal pad | 90105172 (replaces 4241832) |
| 3 | Return spring | 4467288 |
| 4 | Screw | 4241865 |
| 5 | Washer | 8073108 |
| 6 | Hexagon nut | 4345120 |
| 7 | Lock spring | 90373365 (replaces 4241881) |
| 8 | Bracket | 93186132 |
| 8 | Bracket | 4243226 |
| 12 | Pedal bracket | 90193009 (replaces 4212130) |
| 13 | Nut | 90191908 (replaces 4345419) |
| 14 | Washer | 4345344 |
| 15 | Lock nut | 55557005 (replaces 7965767) |
| 16 | Seal | 90342130 (replaces 4241873) |
| 18 | Cable | 4901724 (replaces 4490181) |
| 18 | Cable | 4901732 (replaces 4490199) |
| 20 | Bracket | 4490249 |
| 21 | Screw | 7972805 |
| 26 | Screw | 55562873 (replaces 8082968) |
| 27 | Rubber stop | 4483459 |
| 28 | Nut | 92150143 (replaces 7971922) |
