Saab 900 1990-1993 Pedal, master cylinder

Group 4 Transmission, section 140

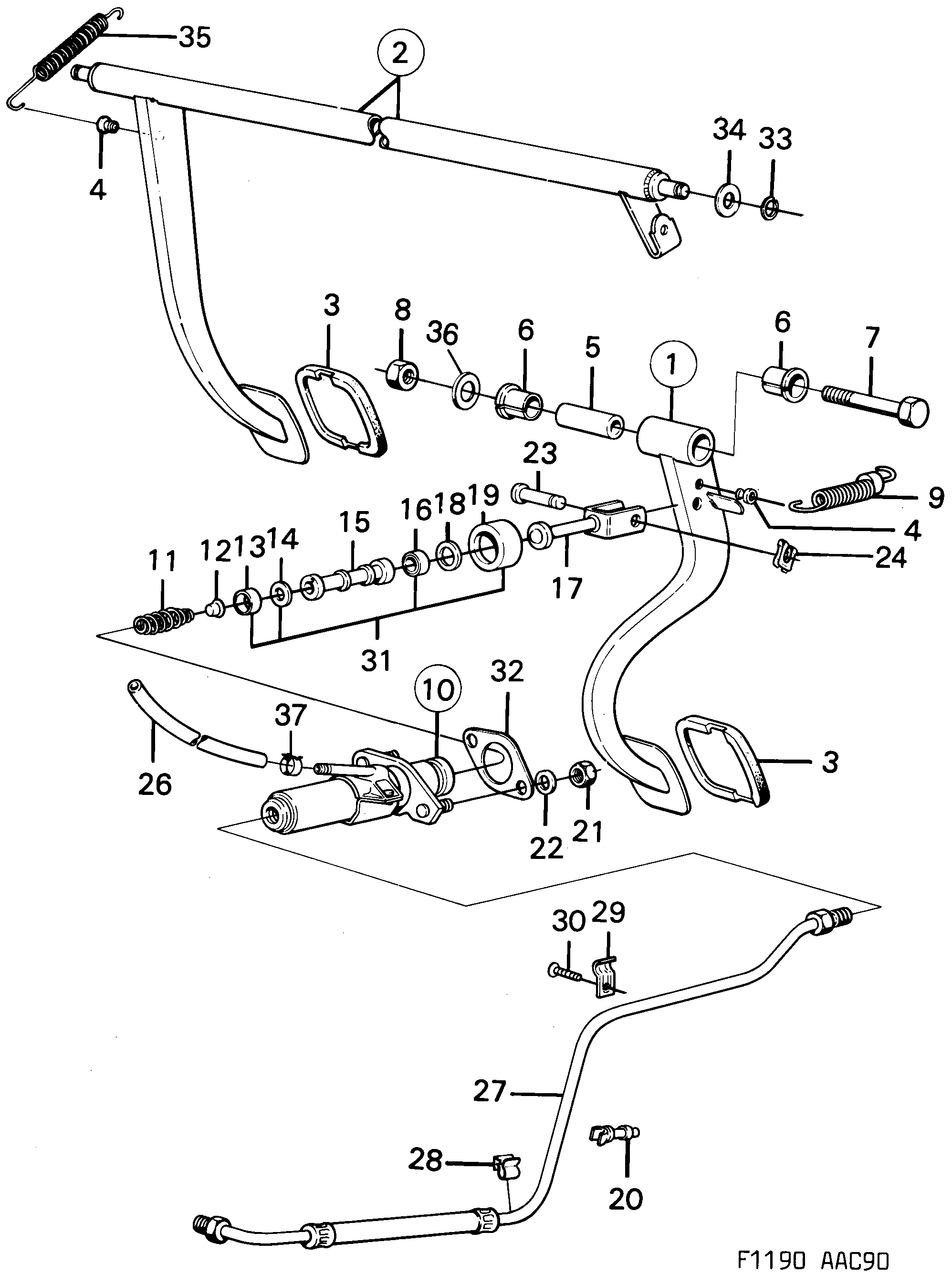

Saab 900 Pedal, master cylinder diagram

Pos	Article	Part No.
1	Clutch pedal	9105933
2	Pedal arm	9105891
3	Pedal pad	8916272
4	Bushing	8407983
5	Spacer tube	8924490
6	Bearing bushing	8962128
7	Screw	7973571
8	Lock nut	92153199 (replaces 8151474)
9	Spring	8935751
10	Clutch cylinder	8944977
11	Spring	8986622
12	Spring support	8945156
13	Gasket	8945248
14	Washer	8945255
15	Piston	8945263
16	Gasket	8940769
17	Push rod	8935371
18	Lock ring	7313232
19	Seal	7313240
20	Tube clamp	7963887
21	Nut	8151235
22	Washer	7933849
23	Bolt	8956443
24	Clip	12780365 (replaces 8252553)
26	Hose	8927139
26	Hose	4281531
26	Hose	4385076
26	Hose	4027801
26	Hose	4385084
27	Clutch hose	5331137 (replaces 8935124)
28	Clamp	7398746
29	Tube clamp	8371551
30	Screw	7922891
31	Repair kit	8993156
32	Gasket	8941478
33	Retaining ring	7963135
34	Washer	8029993
35	Spring	8941312
37	Hose clamp	7973605
