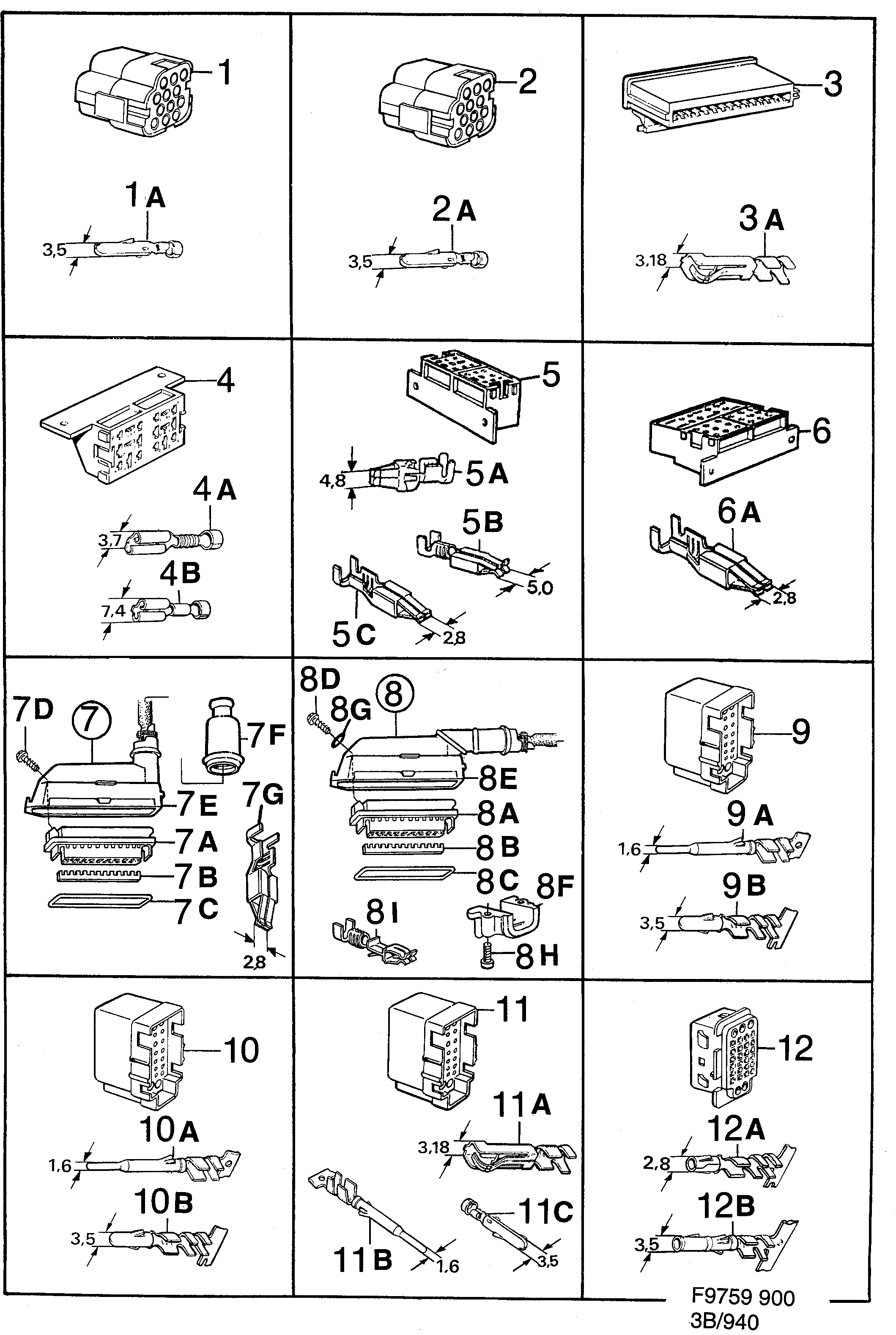

Group 3b Electrical, connector, section 940
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 8553497 |
| 1A | Cable terminal | 8582595 (replaces 8544298) |
| 1A | Cable terminal | 8544306 |
| 2 | Connector housing | 8553505 |
| 2A | Cable terminal | 8582603 (replaces 8544314) |
| 3 | Connector housing | 8544348 |
| 3A | Cable terminal | 8560278 |
| 4 | Connector housing | 8551665 |
| 4A | Cable terminal | 8522575 (replaces 8509846) |
| 4B | Cable terminal | 7971708 |
| 4C | Cable terminal | 7972029 |
| 5 | Connector housing | 9124199 |
| 5A | Cable terminal | 30520556 (replaces 9120783) |
| 5B | Cable terminal | 9521972 |
| 5C | Cable terminal | 12789796 (replaces 9120668) |
| 6 | Connector housing | 9125543 |
| 7 | Connector housing | 8586802 |
| 7A | Connector housing | 8587420 |
| 7B | Striker plate | 8587438 |
| 7C | Seal | 8587453 |
| 7D | Screw | 8587487 |
| 7E | Cover | 8587503 |
| 7F | Rubber protection | 8587511 |
| 8 | Connector housing | 9563081 |
| 8E | Cover | 8587412 |
| 8F | Bracket | 8587495 |
| 8G | Seal | 8587461 |
| 8H | Screw | 7971351 |
| 9 | Connector housing | 8544215 |
| 9A | Cable terminal | 8593964 |
| 9B | Cable terminal | 8544322 |
| 10 | Connector housing | 8544231 |
| 10B | Cable terminal | 8593956 |
| 11 | Connector housing | 8544256 |
| 12 | Connector housing | 8544249 |
| 12A | Cable terminal | 8567075 (replaces 8521726) |
| 12B | Cable terminal | 8582595 |
