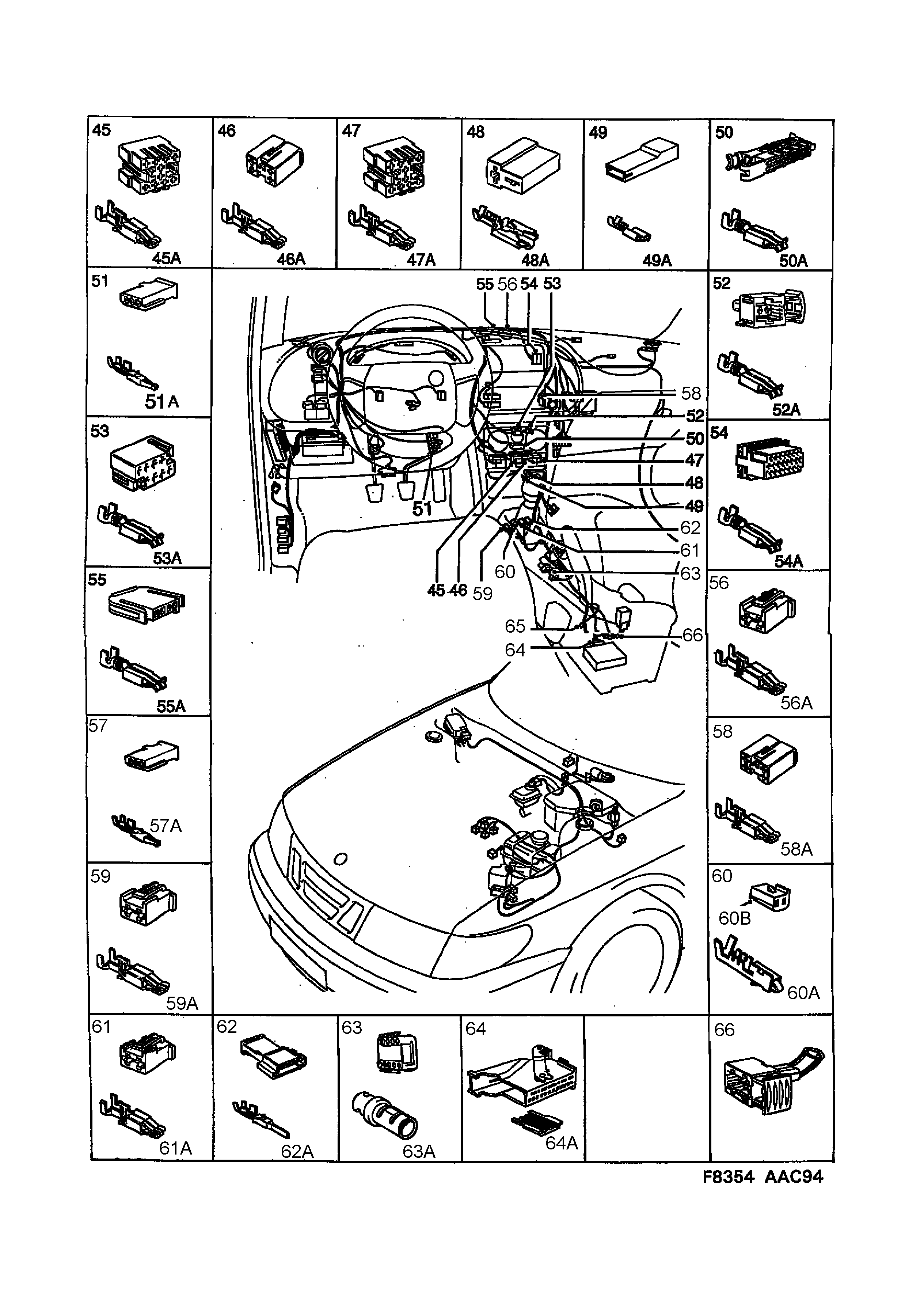

Group 3b Electrical, connector, section 3780
| Pos | Article | Part No. |
|---|---|---|
| 56 | Connector housing | 12790106 (replaces 9123548) |
| 56A | Cable terminal | 12789796 (replaces 9120957) |
| 57 | Connector housing | 12789410 (replaces 4113007) |
| 57A | Cable terminal | 12790414 (replaces 4115499) |
| 58 | Connector housing | 9123555 |
| 60 | Connector housing | 4411740 |
| 60A | Cable terminal | 4488151 |
| 60B | Locking | 30550950 (replaces 4411757) |
| 62 | Connector housing | 4113056 |
| 62A | Cable terminal | 12790614 (replaces 4115457) |
| 63 | Connector housing | 4224457 |
| 63A | Cable terminal | 9509746 |
| 64 | Cover | 4734448 |
| 64A | Locking | 12799084 (replaces 4734471) |
