Saab 900 1994-1994 Engine

Group 3b Electrical, connector, section 360

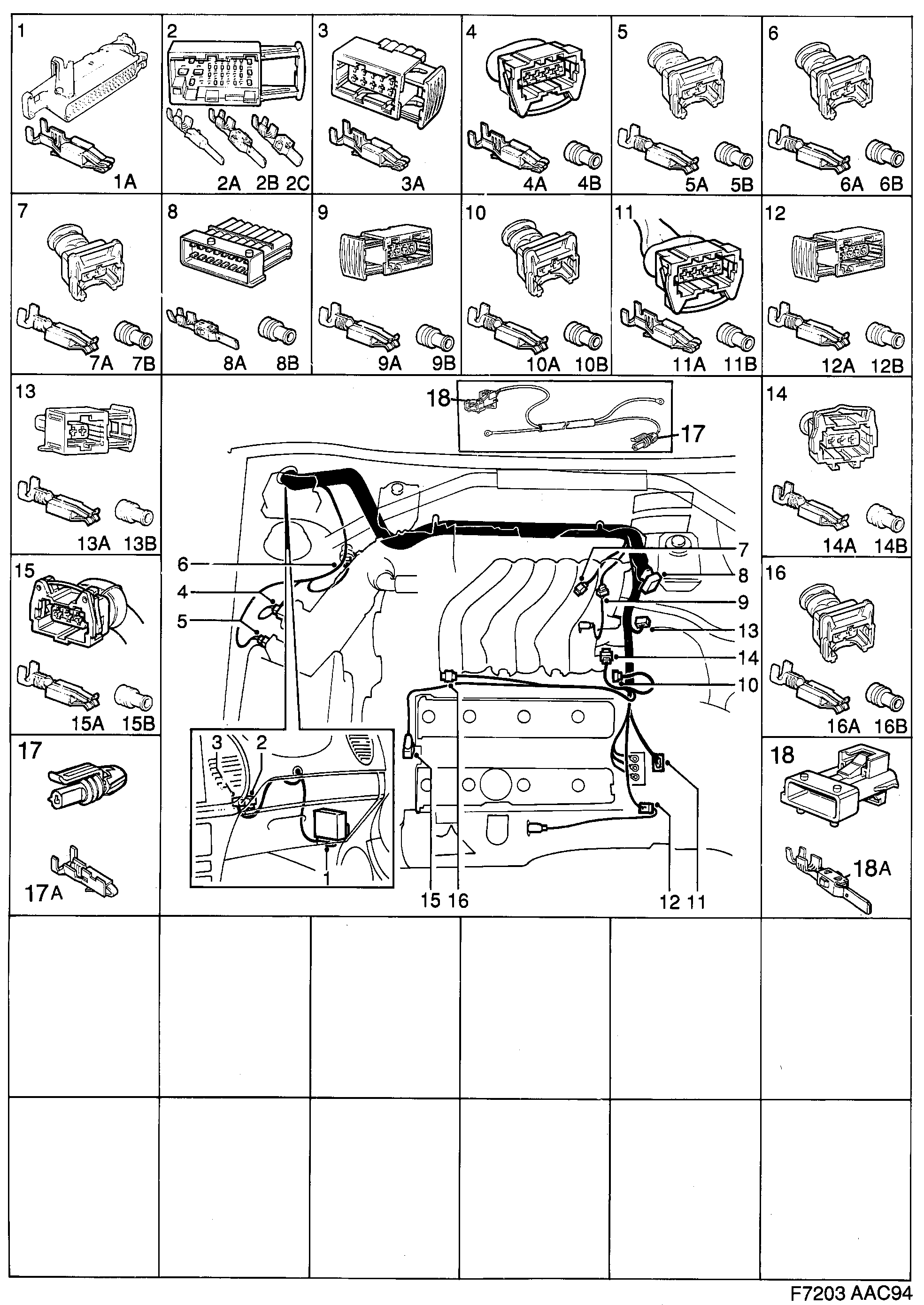

Saab 900 Engine diagram
PosArticlePart No.
11Connector housing4432357
11ACable terminal4061586
11BSeal12798372 (replaces 4061974)
12Connector housing12788993 (replaces 4113601)
13Connector housing12788933 (replaces 4113205)
14Connector housing12790262 (replaces 4432316)
16Connector housing12790247 (replaces 4178414)
17Connector housing4203378
17ACable terminal4418505
18Connector housing12788998 (replaces 4113650)
18ACable terminal12789934 (replaces 4115192)
