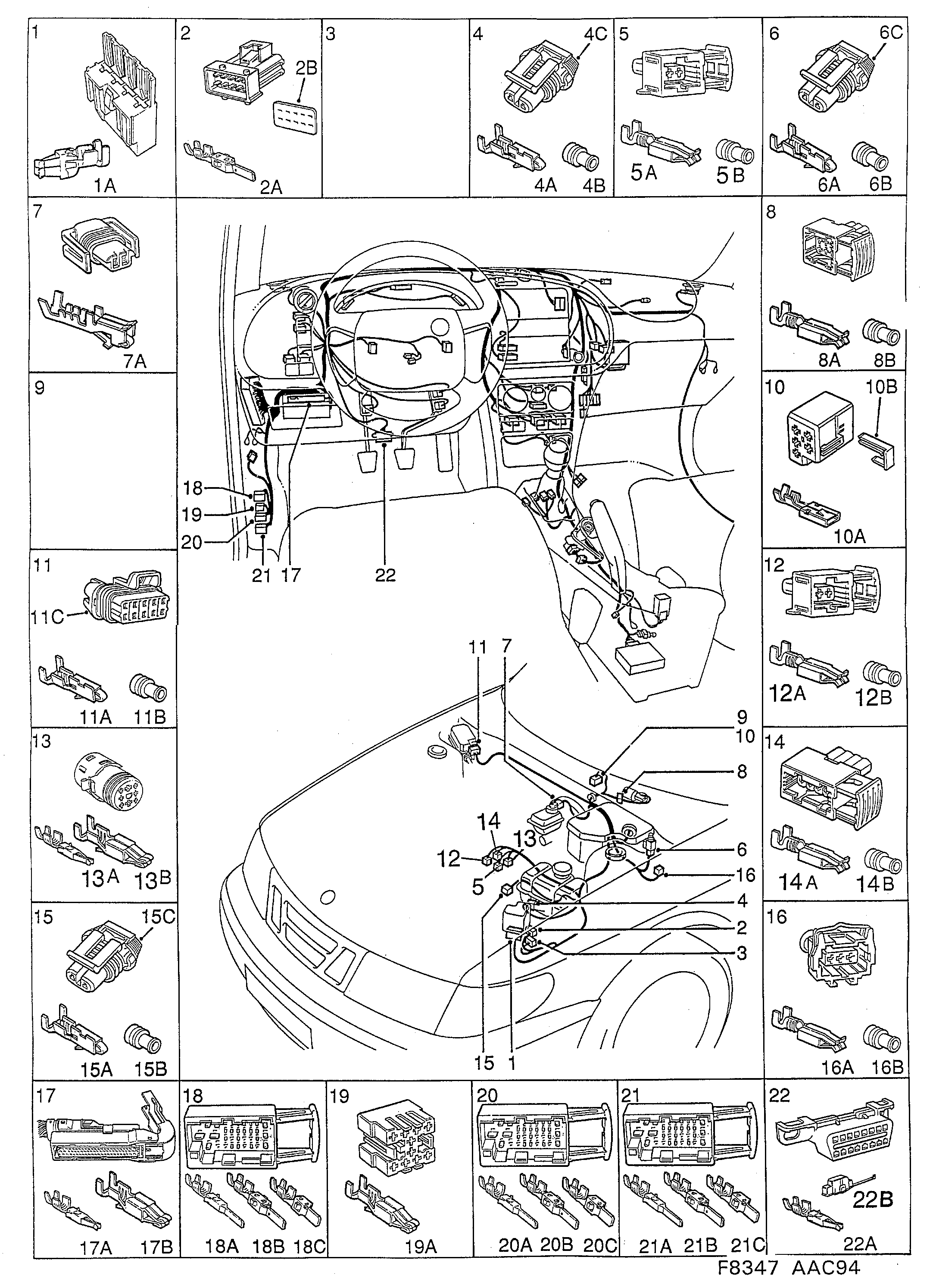

Group 3b Electrical, connector, section 3570
| Pos | Article | Part No. |
|---|---|---|
| 10 | Connector housing | 12793897 (replaces 4463014) |
| 10A | Cable terminal | 12756961 (replaces 4412961) |
| 10B | Locking | 4463022 |
| 11 | Connector housing | 4203568 |
| 11A | Cable terminal | 4418505 |
| 11B | Seal | 4419313 |
| 11C | Locking | 4203576 |
| 12 | Connector housing | 12788933 (replaces 4113205) |
| 12A | Cable terminal | 4061586 |
| 12B | Seal | 4061966 |
| 13 | Connector housing | 4466462 |
| 13A | Cable terminal | 12790414 (replaces 4115499) |
| 13B | Cable terminal | 12789796 (replaces 9120957) |
| 14 | Connector housing | 12788993 (replaces 4113601) |
| 15 | Connector housing | 12790252 (replaces 4201224) |
| 15C | Locking | 12789184 (replaces 4201232) |
| 16 | Connector housing | 12790262 (replaces 4432316) |
| 17 | Connector housing | 4176616 |
| 18 | Connector housing | 12798080 (replaces 4173852) |
| 18A | Cable terminal | 12790614 (replaces 4115457) |
| 18B | Cable terminal | 12789934 (replaces 4115077) |
| 18C | Cable terminal | 4115580 |
