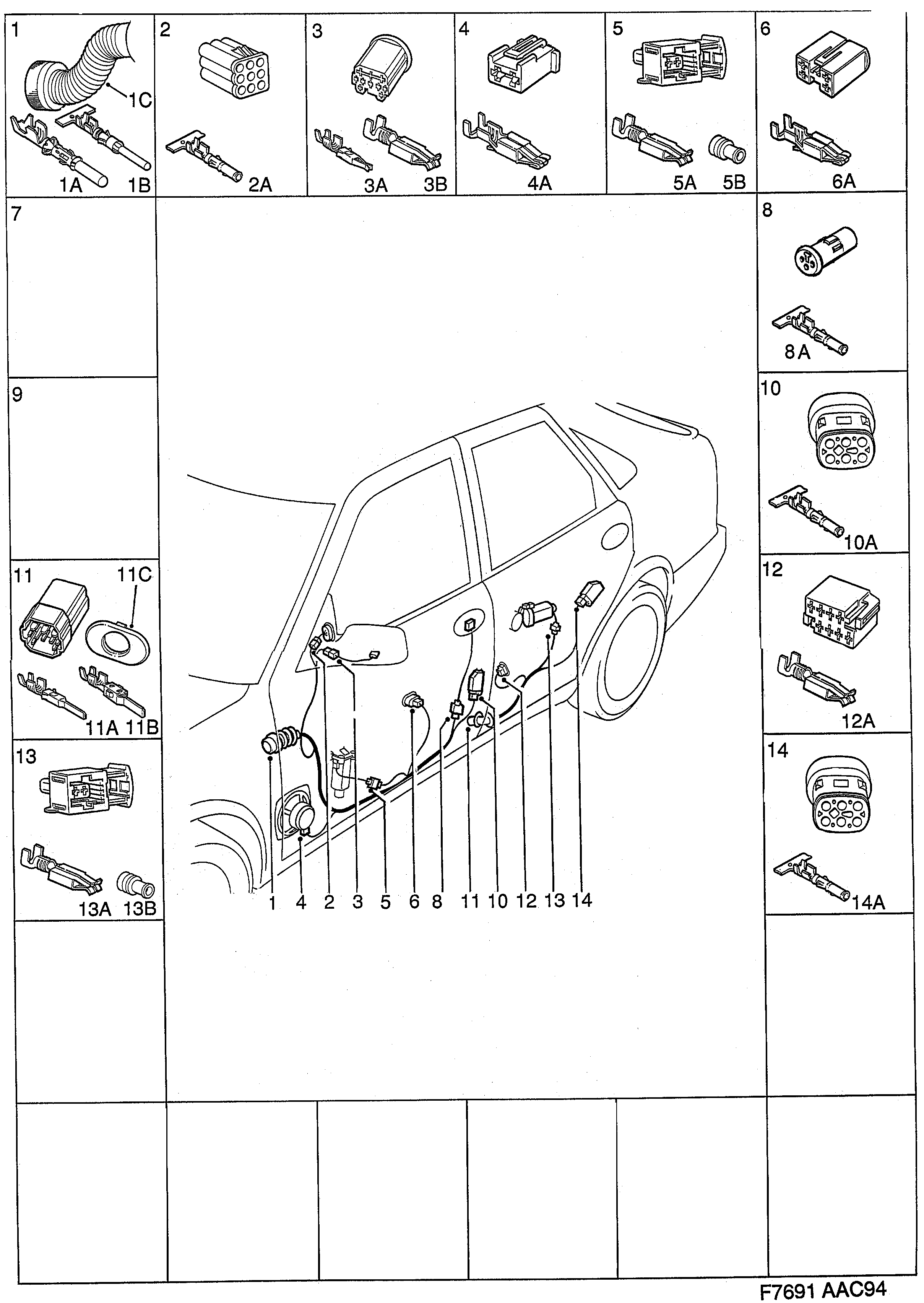

Group 3b Electrical, connector, section 3060
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 4203261 |
| 1A | Cable terminal | 4464228 |
| 1B | Cable terminal | 30552538 (replaces 4409785) |
| 1C | Protection | 4222360 |
| 2 | Connector housing | 4201208 |
| 2A | Cable terminal | 30552537 (replaces 4409728) |
| 3 | Connector housing | 12756334 (replaces 4411518) |
| 3A | Cable terminal | 12790414 (replaces 4115499) |
| 3B | Cable terminal | 12789796 (replaces 9120957) |
| 4 | Connector housing | 12790106 (replaces 9123548) |
| 5 | Connector housing | 12788982 (replaces 4113411) |
| 5A | Cable terminal | 12970428 (replaces 4354171) |
| 5B | Seal | 4354387 |
| 6 | Connector housing | 9123555 |
| 8 | Connector housing | 4224903 |
