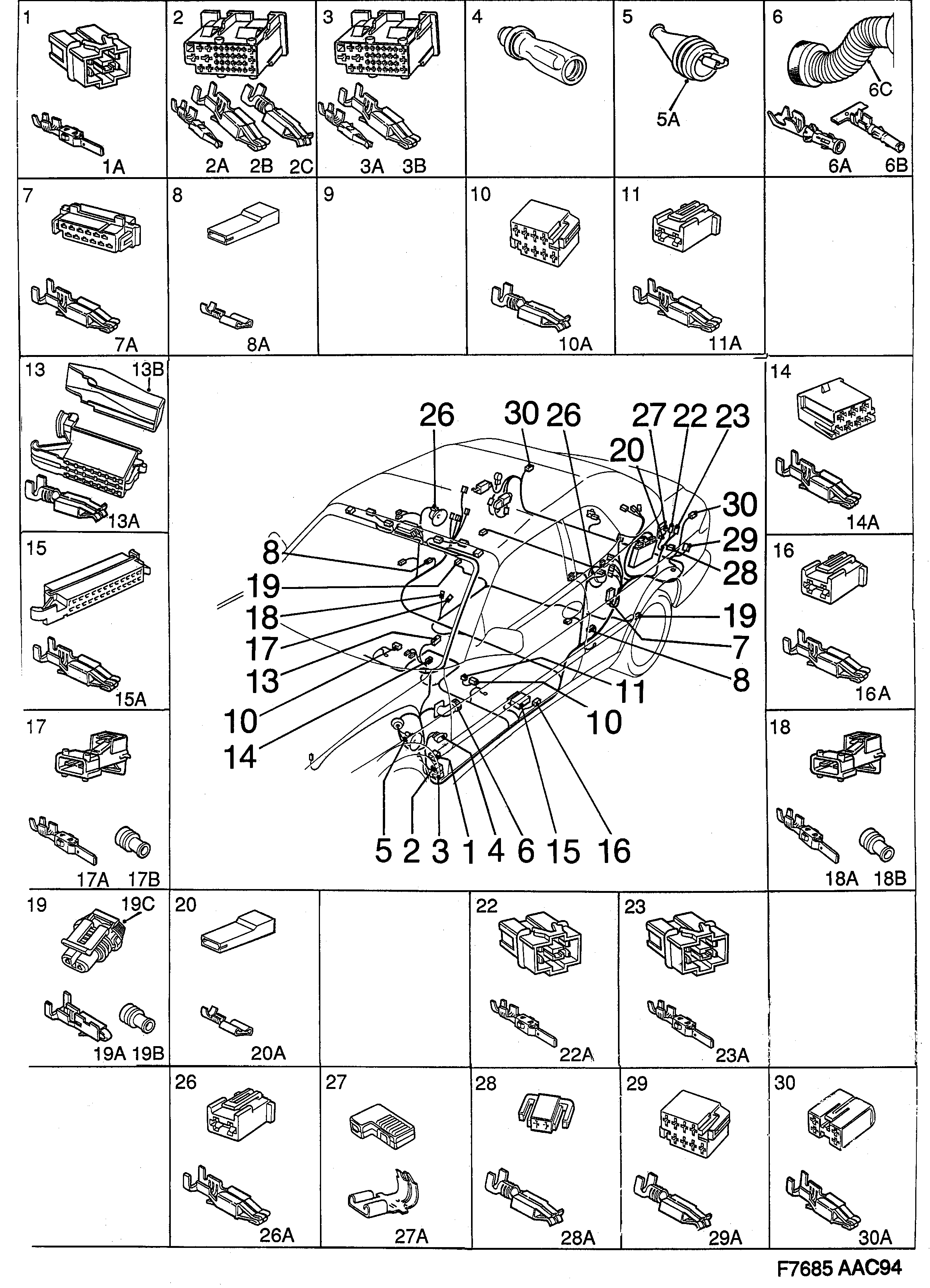

Group 3b Electrical, connector, section 2880
| Pos | Article | Part No. |
|---|---|---|
| 11 | Connector housing | 12790106 (replaces 9123548) |
| 11A | Cable terminal | 12789796 (replaces 9120957) |
| 13 | Connector housing | 4060893 |
| 13A | Cable terminal | 30520557 (replaces 9120791) |
| 13B | Cover | 4067617 |
| 14 | Connector housing | 9123381 |
| 15 | Connector housing | 4201323 |
| 17 | Connector housing | 4113254 |
| 17A | Cable terminal | 12789934 (replaces 4115192) |
| 17B | Seal | 4352928 |
| 18B | Seal | 4061966 |
| 19 | Connector housing | 12797800 (replaces 4203428) |
| 19A | Cable terminal | 4418505 |
| 19B | Seal | 4419305 |
| 19B | Seal | 4419313 |
| 19C | Locking | 12789184 (replaces 4201232) |
| 20 | Insulation | 8516916 |
| 20A | Cable terminal | 4409801 |
