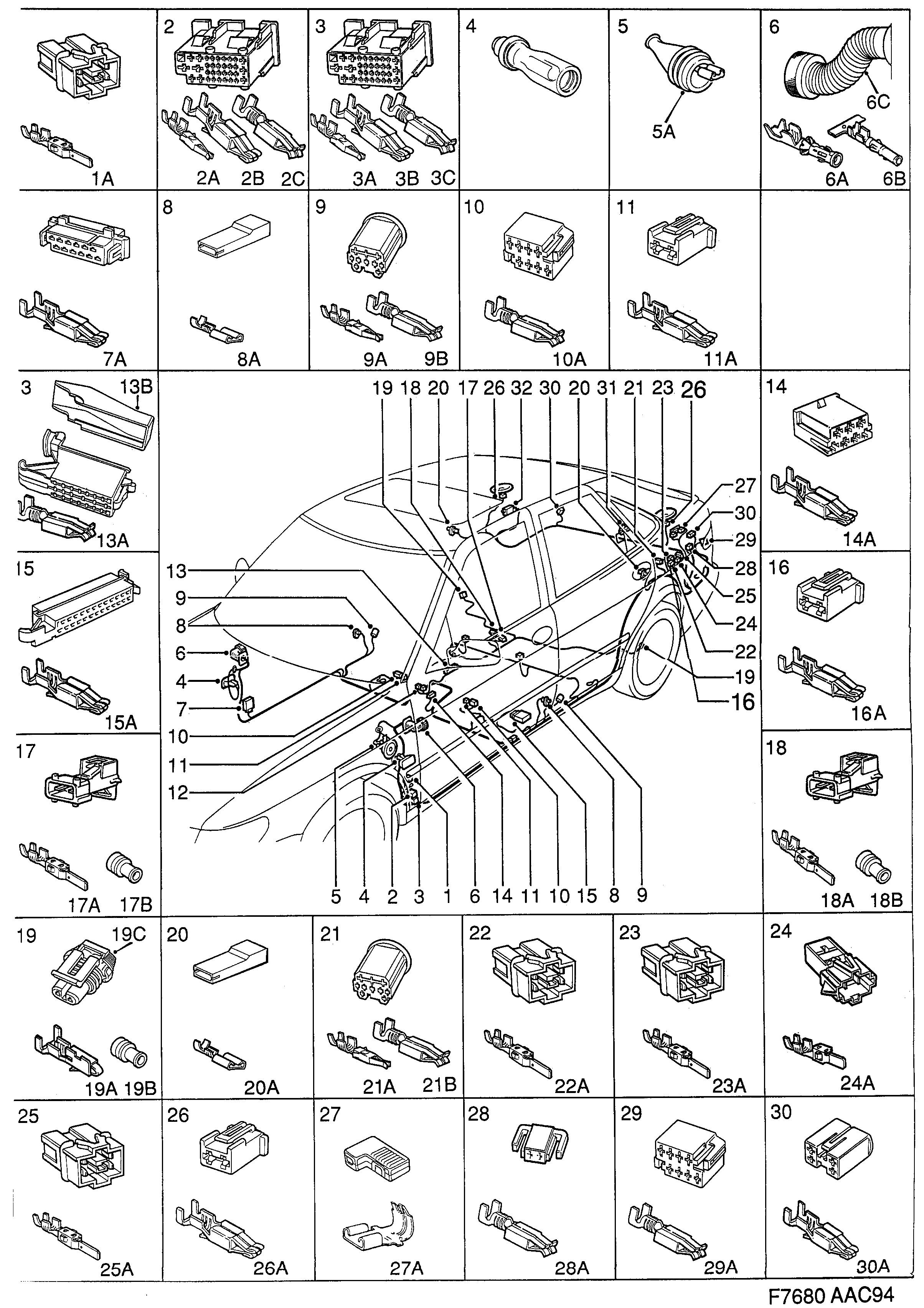

Group 3b Electrical, connector, section 2730
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 4117263 |
| 1A | Cable terminal | 12789934 (replaces 4115077) |
| 2 | Connector housing | 5241435 (replaces 4173803) |
| 2A | Cable terminal | 12790414 (replaces 4115499) |
| 2B | Cable terminal | 12789796 (replaces 9120957) |
| 2C | Cable terminal | 30520557 (replaces 9120791) |
| 4 | Connector | 8547804 |
| 5 | Cable terminal | 4409801 |
| 5A | Protection | 4203683 |
| 6 | Connector housing | 4203253 |
| 6A | Cable terminal | 4464293 |
| 6B | Cable terminal | 30552537 (replaces 4409728) |
| 6C | Protection | 4222352 |
| 7 | Connector housing | 9525031 |
| 8 | Insulation | 8516916 |
| 9 | Connector housing | 12756334 (replaces 4411518) |
| 10 | Connector housing | 9124090 |
