Saab 900 1996-1996 Instrument panel

Group 3b Electrical, connector, section 2550

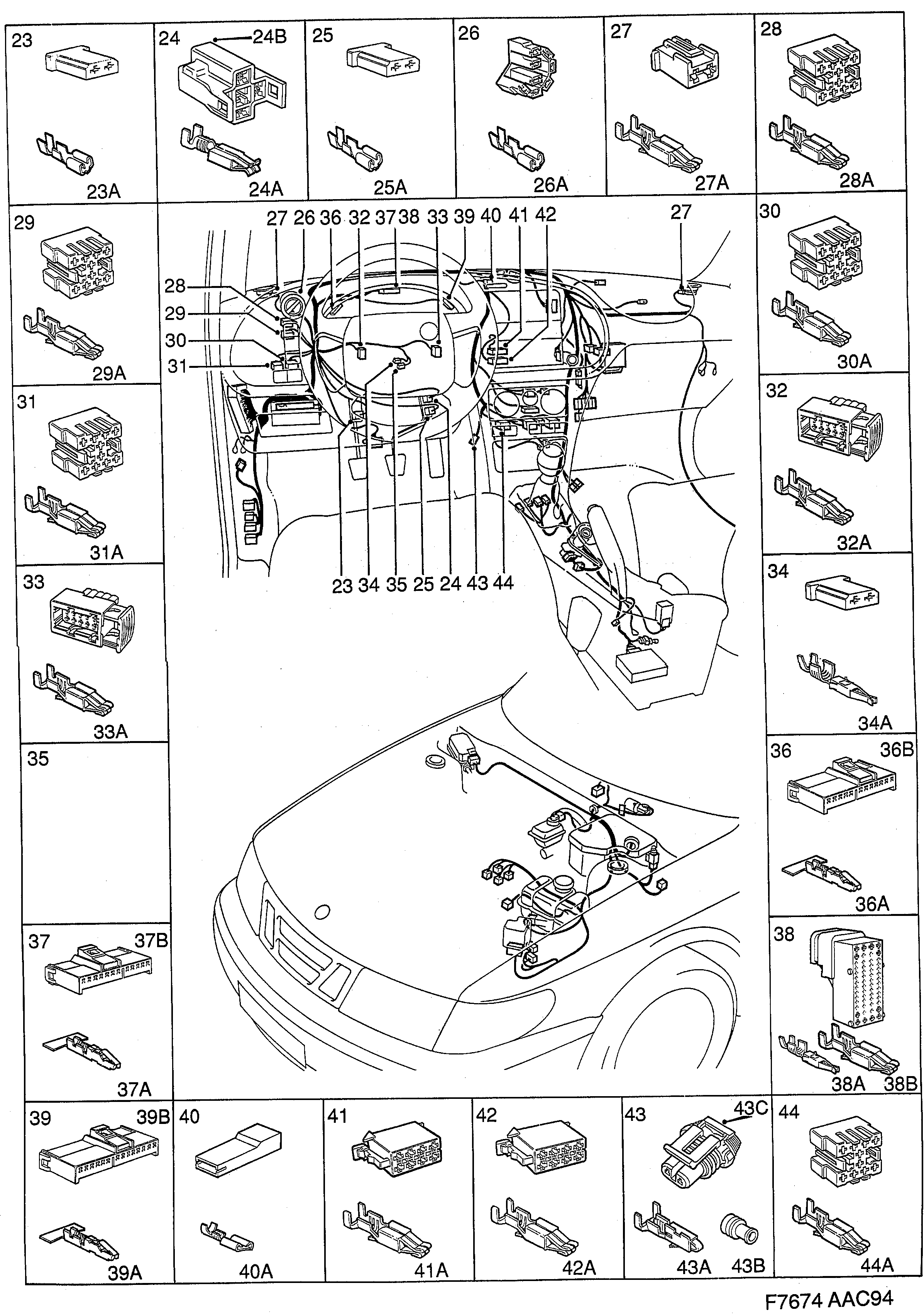

Saab 900 Instrument panel diagram

Pos	Article	Part No.
33	Connector housing	12788954 (replaces 4114005)
33A	Cable terminal	12789796 (replaces 9120957)
34	Connector housing	4517702
34A	Cable terminal	4466801
36	Connector housing	30552928 (replaces 4409181)
36A	Cable terminal	4224515
36B	Cover	30552930 (replaces 4409207)
37	Connector housing	30552926 (replaces 4409165)
38	Connector housing	4115408
38A	Cable terminal	12790414 (replaces 4115499)
39	Connector housing	30552929 (replaces 4409199)
40	Insulation	8516916
40A	Cable terminal	4409801
41	Connector housing	12802178 (replaces 4203626)
42	Connector housing	4203618
43	Connector housing	12790252 (replaces 4201224)
43A	Cable terminal	4418505
43B	Seal	4419313
43C	Locking	12789184 (replaces 4201232)
