Saab 900 1996-1996 Engine

Group 3b Electrical, connector, section 2280

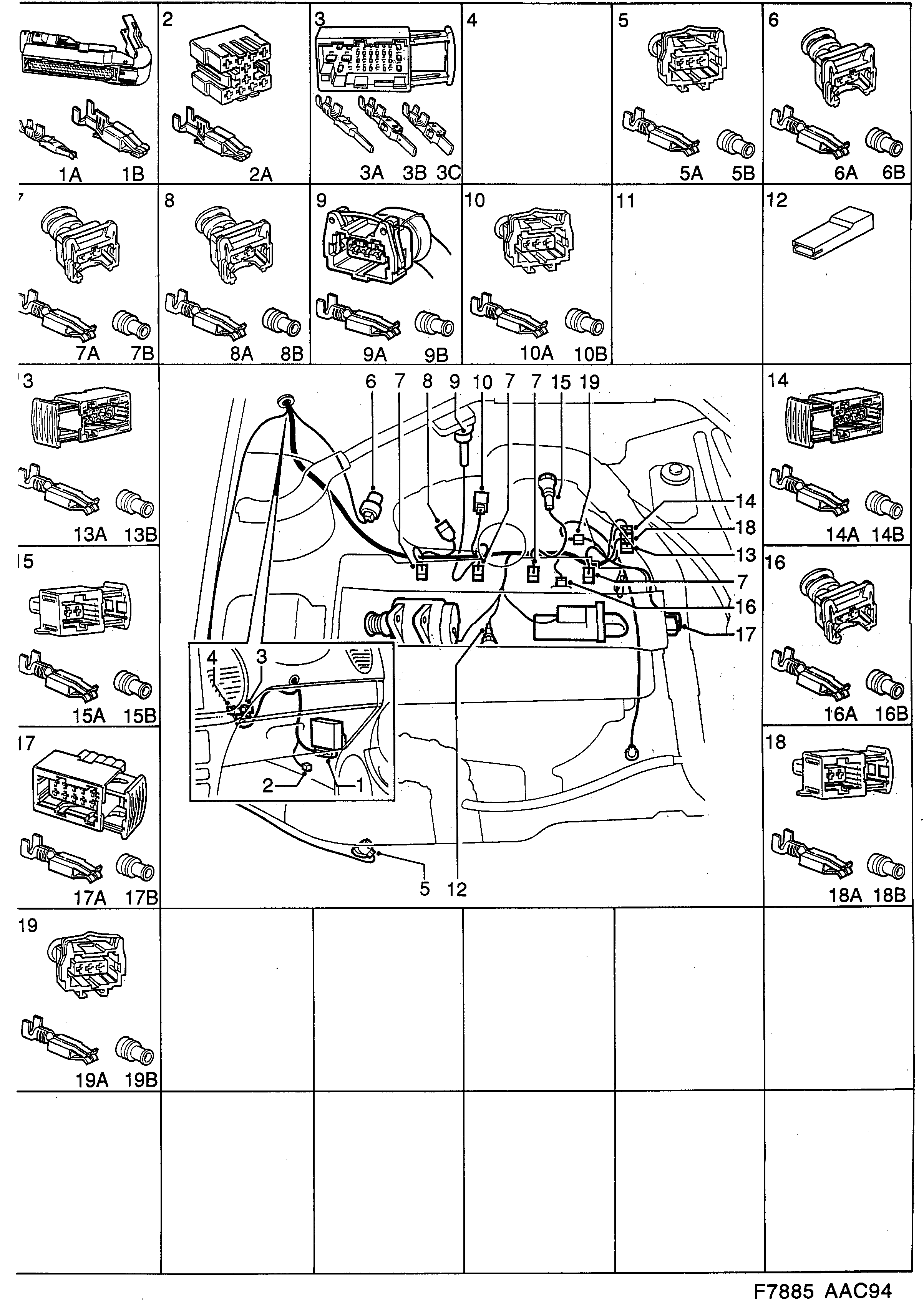

Saab 900 Engine diagram
PosArticlePart No.
12Cable terminal4409801
13Connector housing12788993 (replaces 4113601)
13ACable terminal4061586
13BSeal12798372 (replaces 4061974)
15Connector housing12788933 (replaces 4113205)
15ACable terminal4350526
16Connector housing12790247 (replaces 4178414)
17Connector housing12788954 (replaces 4114005)
19Connector housing4432324
