Saab 900 1996-1996 Engine

Group 3b Electrical, connector, section 2220

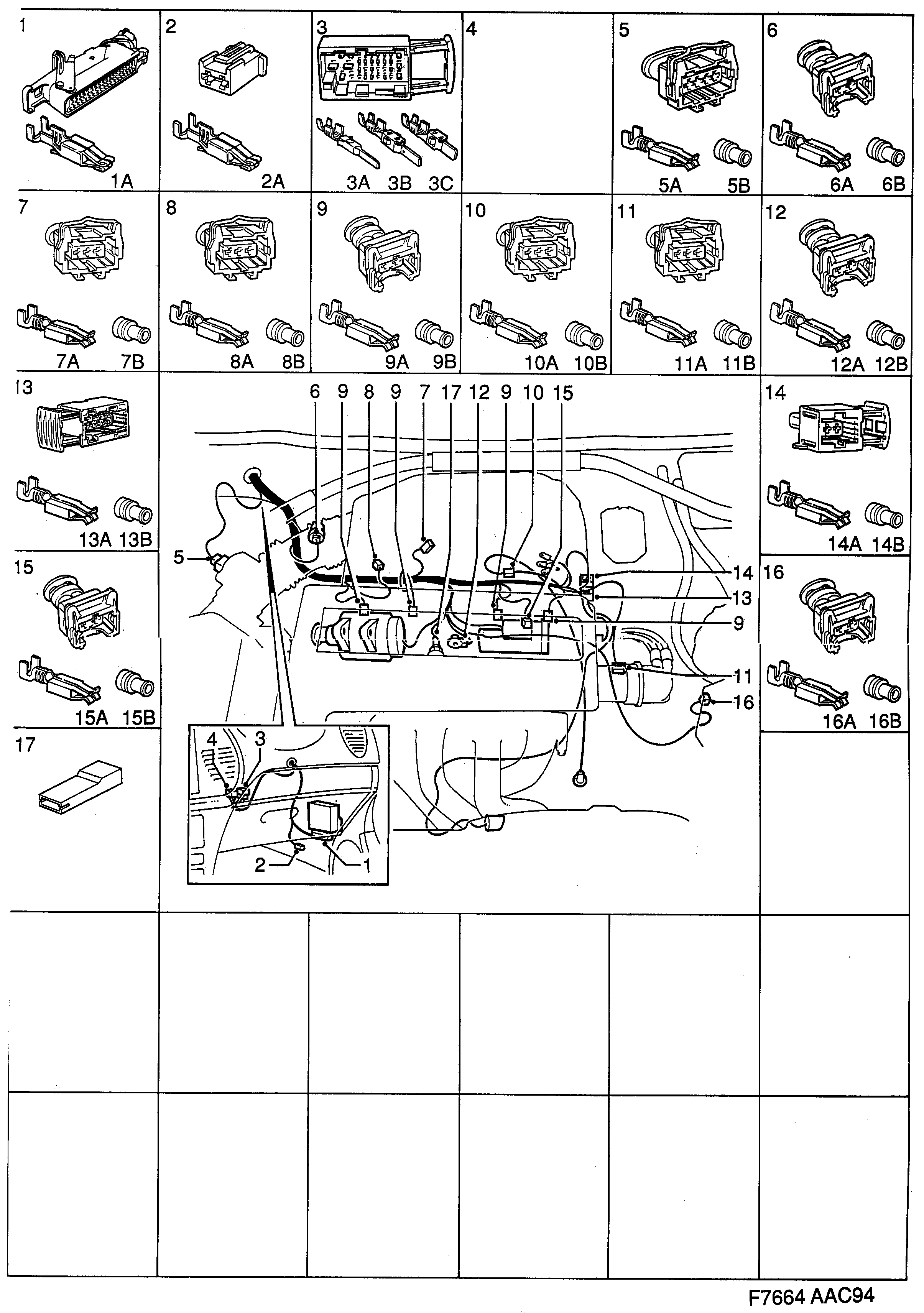

Saab 900 Engine diagram
PosArticlePart No.
11Connector housing12790262 (replaces 4432316)
11ACable terminal4061586
11BSeal12798372 (replaces 4061974)
12Connector housing12790247 (replaces 4178414)
13Connector housing12788993 (replaces 4113601)
14Connector housing12788933 (replaces 4113205)
17Cable terminal4409801
