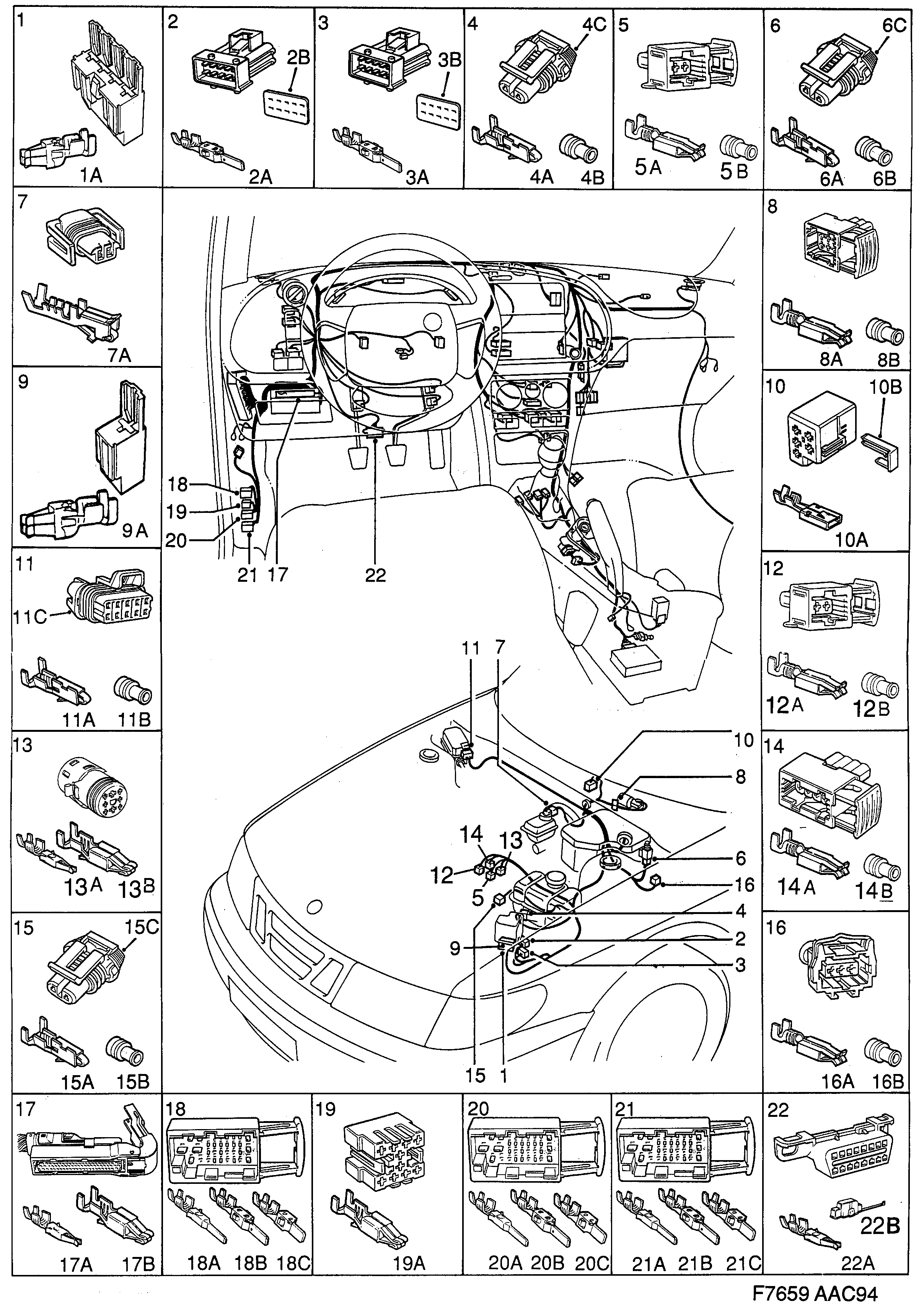

Group 3b Electrical, connector, section 1290
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 4230181 |
| 1A | Cable terminal | 4464343 |
| 2 | Connector housing | 12788959 (replaces 4114054) |
| 2A | Cable terminal | 12789934 (replaces 4115192) |
| 2B | Seal | 12788965 (replaces 4114153) |
| 4 | Connector housing | 4434841 |
| 4A | Cable terminal | 4418505 |
| 4B | Seal | 4419313 |
| 4C | Locking | 12789184 (replaces 4201232) |
| 5 | Connector housing | 12788933 (replaces 4113205) |
| 5A | Cable terminal | 4061586 |
| 5B | Seal | 4061966 |
| 6 | Connector housing | 12790252 (replaces 4201224) |
| 7 | Connector housing | 4201273 |
| 7A | Cable terminal | 4488458 |
| 8 | Connector housing | 12788966 (replaces 4113809) |
| 9 | Connector housing | 4230199 |
