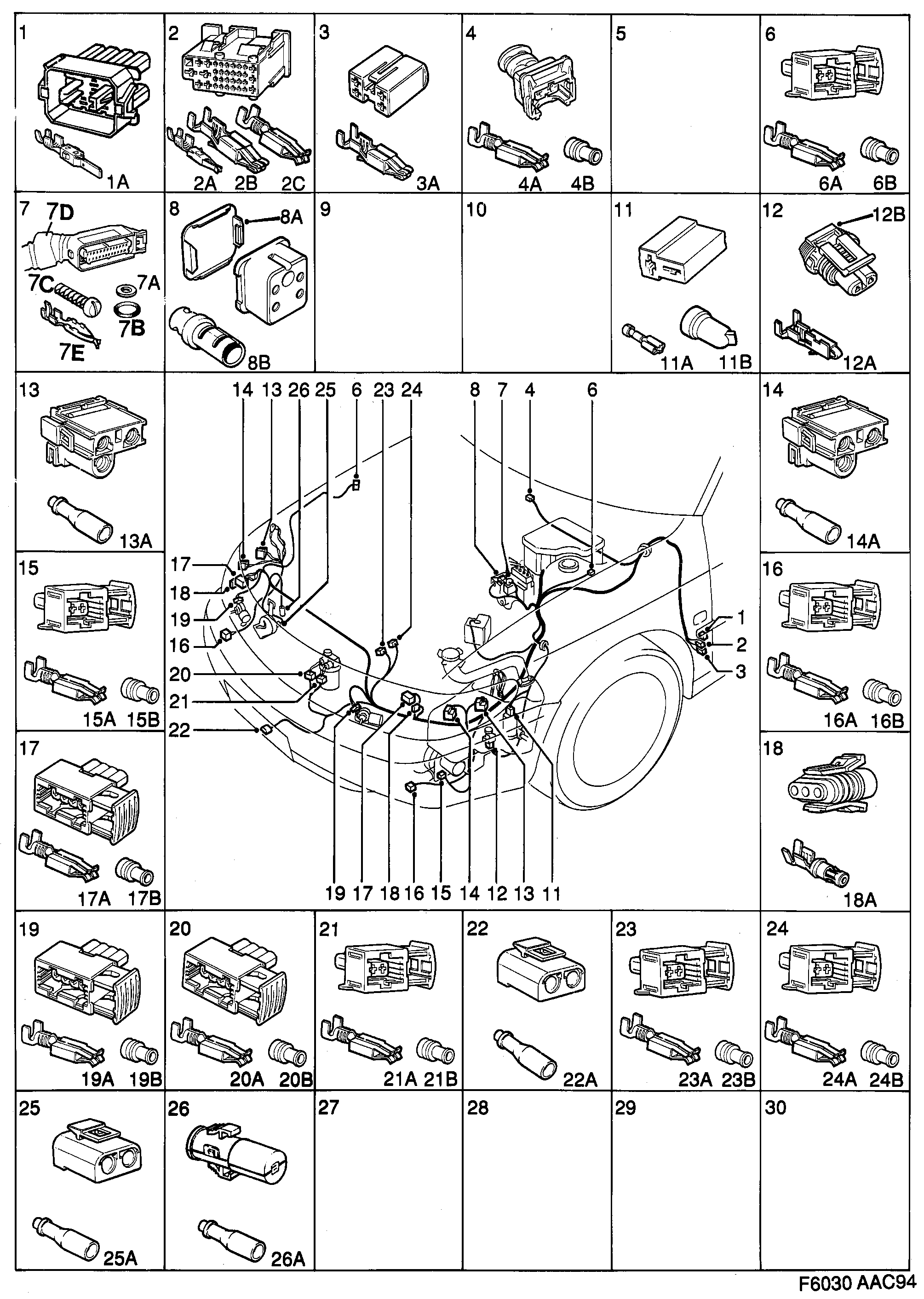

Group 3b Electrical, connector, section 120
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 4117461 |
| 1A | Cable terminal | 12789934 (replaces 4115077) |
| 2 | Connector housing | 5241435 (replaces 4173803) |
| 2A | Cable terminal | 12790414 (replaces 4115499) |
| 2B | Cable terminal | 12789796 (replaces 9120957) |
| 2C | Cable terminal | 30520557 (replaces 9120791) |
| 3 | Connector housing | 9123555 |
| 4 | Connector housing | 12790247 (replaces 4178414) |
| 4A | Cable terminal | 4061586 |
| 4B | Seal | 4061966 |
| 4B | Seal | 12798372 (replaces 4061974) |
| 6 | Connector housing | 12788933 (replaces 4113205) |
| 7 | Connector housing | 4224580 |
| 7A | Seal | 8587461 |
| 7B | O-ring | 4412888 |
| 7C | Screw | 4223467 |
| 7D | Rubber protection | 4412862 |
| 7E | Cable terminal | 12790467 (replaces 4063970) |
| 8 | Connector housing | 4408894 |
| 8A | Locking | 4408902 |
| 8B | Cable terminal | 9509746 |
| 11 | Connector housing | 4201315 |
| 11A | Cable terminal | 12798482 (replaces 4464442) |
| 11B | Protection | 4224531 |
| 12 | Connector housing | 12790252 (replaces 4201224) |
| 12A | Cable terminal | 4418505 |
| 12B | Locking | 12789184 (replaces 4201232) |
| 13 | Connector housing | 9519679 |
| 13A | Connector | 8547804 |
