Saab 900 1994-1998 Audio system

Group 3a Electrical, general, section 990

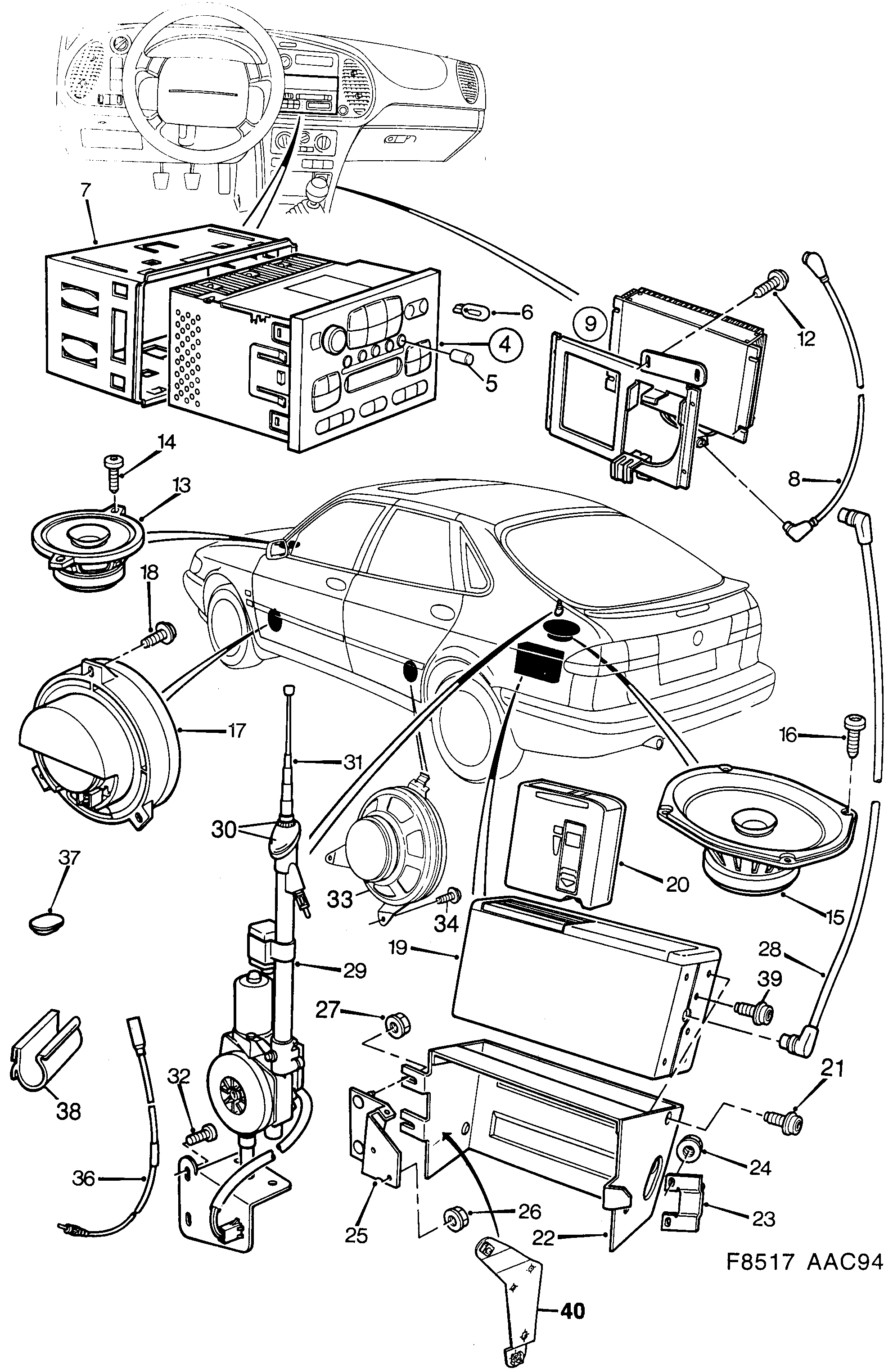

Saab 900 Audio system diagram

Pos	Article	Part No.
4	Radio	4232765
4	Radio	4224929
4	Radio	4408654
4	Radio	32000171 (replaces 4408662)
4	Radio	4464475
5	Button	4619045
6	Bulb	4488375
7	Basket	4947123 (replaces 4224978)
8	Cable harness	4232807
9	Booster	93167062 (replaces 4488003)
9	Booster	93167062 (replaces 4712626)
9	Booster	4712618 (replaces 4488011)
9	Booster	4712618
12	Screw	7922503
12	Screw	7922495
13	Loudspeaker	4712634 (replaces 4232740)
13	Loudspeaker	4712634
13	Loudspeaker	4712675 (replaces 4518221)
13	Loudspeaker	4712675
14	Screw	92153219 (replaces 7922354)
15	Loudspeaker	4712659 (replaces 4232872)
15	Loudspeaker	4712659 (replaces 4711313)
15	Loudspeaker	4712659
16	Screw	7970304
17	Loudspeaker	4712642 (replaces 4224937)
17	Loudspeaker	4712642
18	Screw	7978422
19	CD-player	4221230
19	CD-player	4711792
20	CD magazine	4466389
21	Screw	11900377 (replaces 7978356)
22	Bracket	4428199
22	Bracket	400105417 (replaces 8686222)
23	Bracket	4412730
24	Nut	11900451 (replaces 7977929)
25	Bracket	4428207
28	Cable harness	400102281 (replaces 4232880)
29	Antenna	5035951 (replaces 4232831)
29	Antenna	5035951
29	Antenna	5035969 (replaces 4427514)
29	Antenna	5035969
30	Attachment kit	4411559
30	Attachment kit	4466983
31	Antenna rod	5035944 (replaces 4411807)
31	Antenna rod	5035944
32	Screw	92151891 (replaces 7978653)
33	Loudspeaker	4712667 (replaces 4409108)
33	Loudspeaker	4712667
34	Screw	7922438
36	Antenna cable	4202982
37	Plug	30550937 (replaces 4410668)
37	Plug	4085544
38	Clamp	7951783
39	Screw	4940037
40	Bracket	400105409 (replaces 8686198)
	Service kit	5037023
