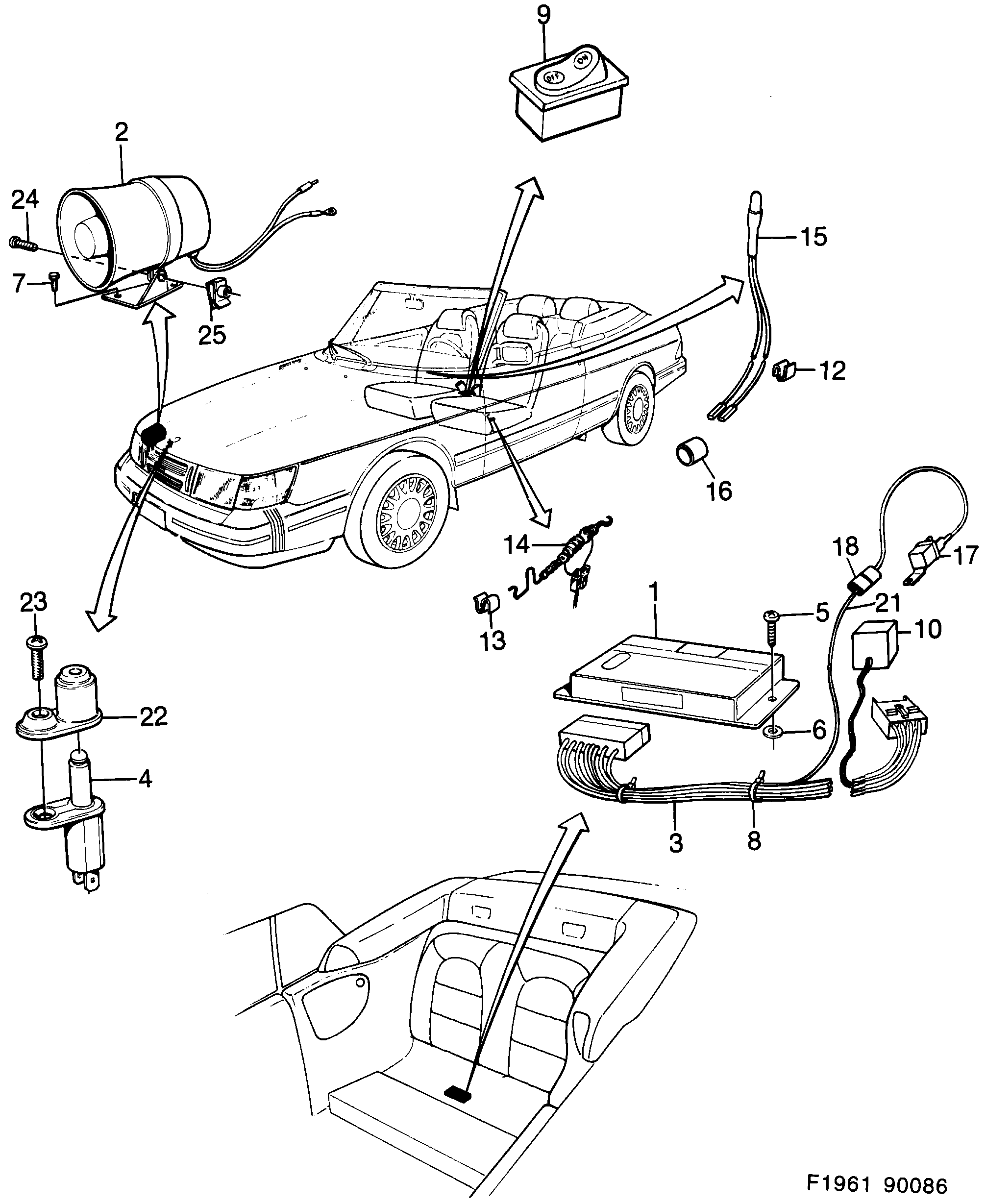

Group 3a Electrical, general, section 940
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electronic unit | 9596891 |
| 2 | Horn | 9596909 |
| 2 | Horn | 9598103 |
| 3 | Cable harness | 9596917 |
| 3 | Cable harness | 9597196 |
| 4 | Switch | 9596925 |
| 4 | Switch | 9514860 |
| 5 | Screw | 7965684 |
| 6 | Washer | 8029951 |
| 7 | Screw | 7973704 |
| 8 | Tie strap | 7971864 |
| 9 | Switch | 9596875 |
| 9 | Switch | 9597147 |
| 10 | Motion detector | 9597154 |
| 11 | Tie strap | 11900513 (replaces 7971880) |
| 12 | Clamp | 8502643 |
| 13 | Clip | 8513574 |
| 14 | Switch | 8599516 |
| 15 | Diode | 9597170 |
| 16 | Bracket | 9597188 |
| 17 | Relay | 8591455 |
| 17 | Relay | 9563099 |
| 18 | Fuse holder | 8564007 |
| 19 | Star washer | 92152203 (replaces 7915556) |
| 21 | Cable harness | 9597352 |
| 22 | Protection | 30526035 (replaces 9512229) |
| 23 | Screw | 7922891 |
| 24 | Screw | 8059578 (replaces 9778952) |
| 25 | Clip | 8267098 |
