Saab 900 1990-1993 Electrical system ABS

Group 3a Electrical, general, section 920

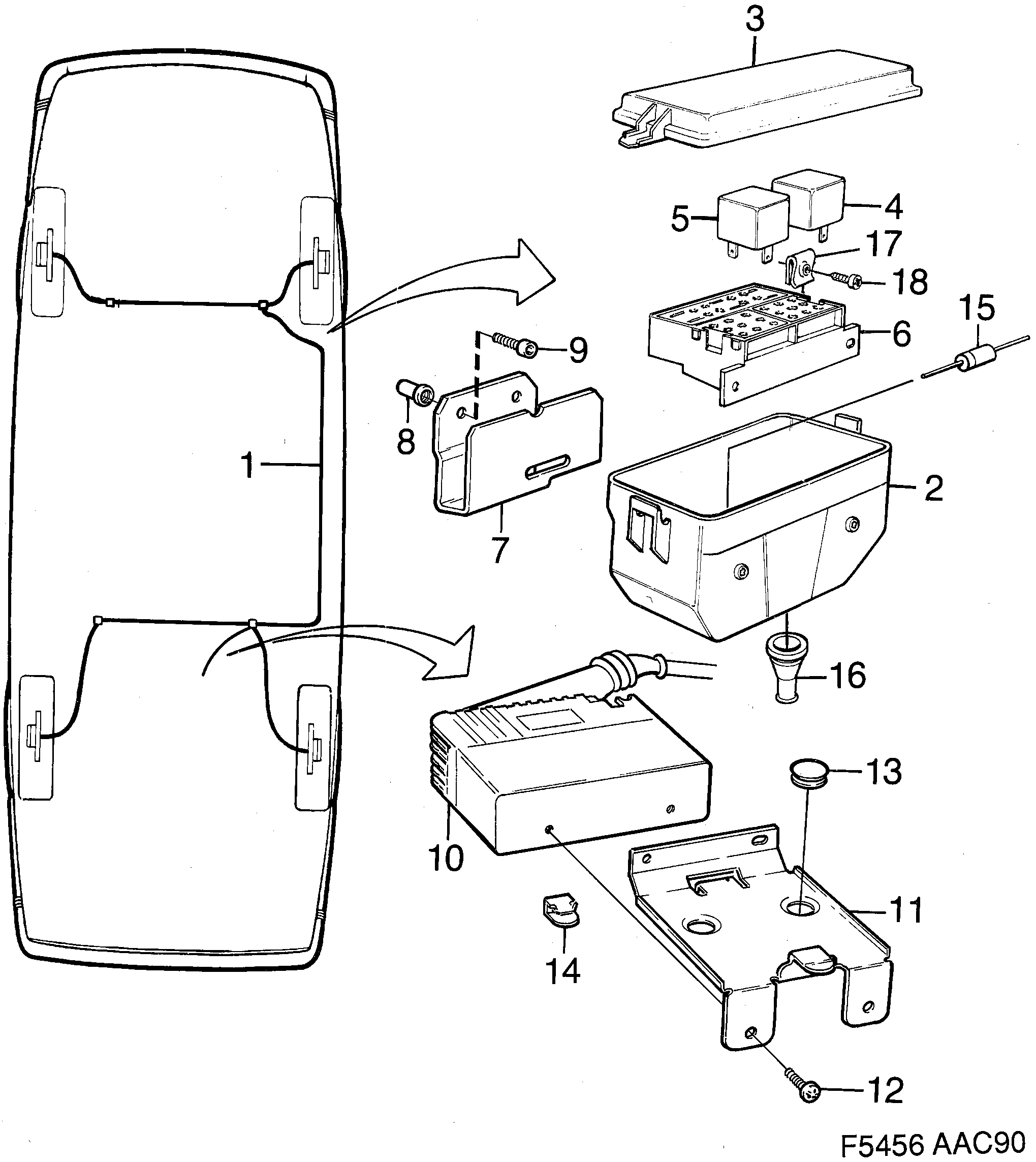

Saab 900 Electrical system ABS diagram
PosArticlePart No.
1Cable harness4063202
1Cable harness4110441
2Box4111118
3Cover9124611
4Relay9522822
5Relay8533176
6Connector housing9125543
7Bracket4063327
8Nut6938393
9Screw8059578
10Electronic unit4002176
11Bracket4098190
11Bracket9196072
12Screw7975444
13Plug9268186
14Clamp4004404
15Diode4424172
16Protection9519745
17Clip nut7968001
18Screw92153219 (replaces 7970601)
