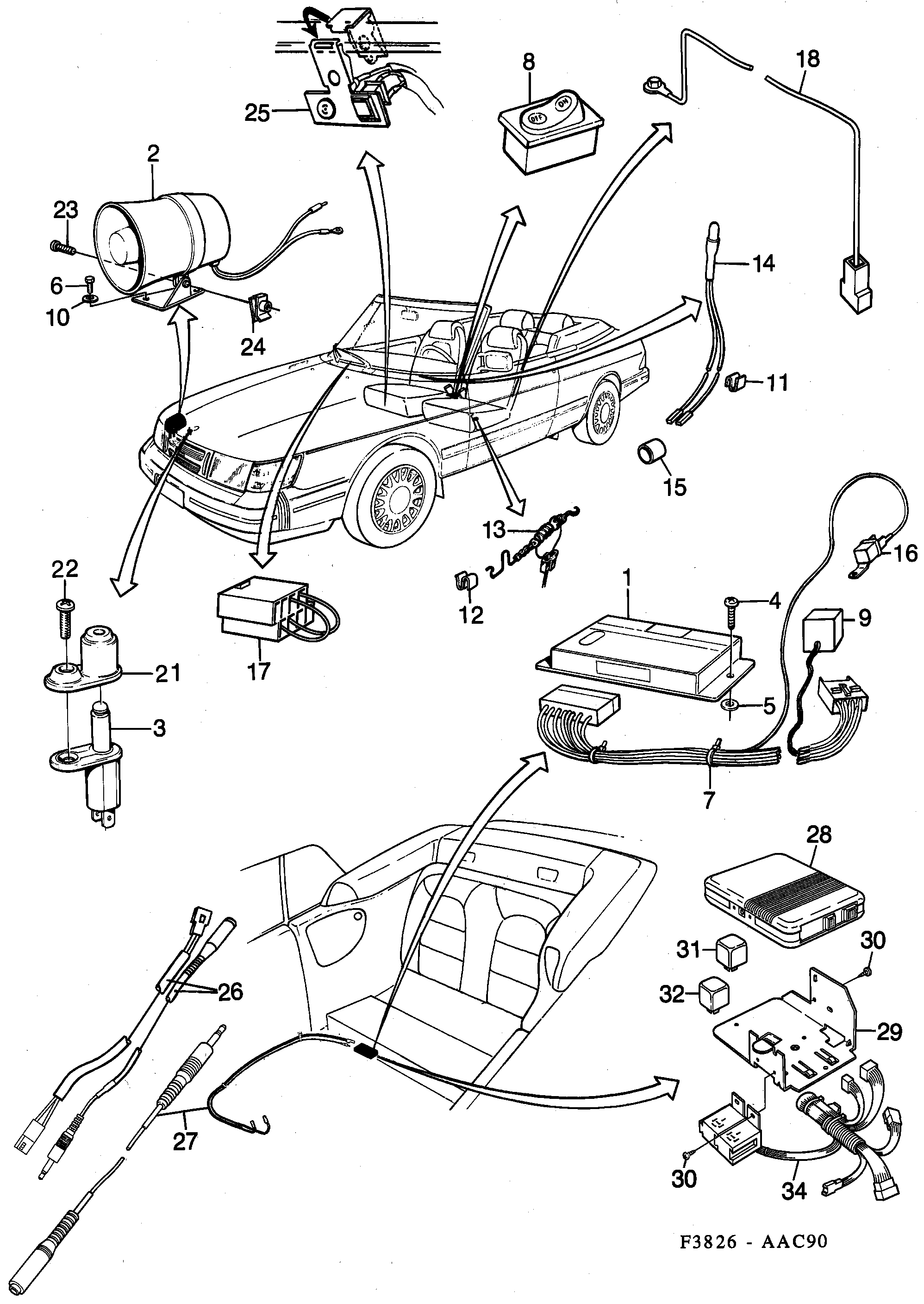

Group 3a Electrical, general, section 890
| Pos | Article | Part No. |
|---|---|---|
| 1 | Electronic unit | 9596891 |
| 2 | Horn | 9598103 |
| 2 | Horn | 9598541 |
| 3 | Switch | 9514860 |
| 4 | Screw | 7965684 |
| 5 | Washer | 8029951 |
| 6 | Screw | 7922891 |
| 6 | Screw | 7922503 |
| 7 | Tie strap | 7971864 |
| 8 | Switch | 9597147 |
| 8 | Switch | 9596875 |
| 8 | Switch | 9598434 |
| 9 | Motion detector | 9597154 |
| 10 | Washer | 32000432 (replaces 9166372) |
| 11 | Clamp | 8502643 |
| 12 | Clip | 8513574 |
| 13 | Switch | 8599516 |
| 14 | Diode | 9597170 |
| 15 | Bracket | 9597188 |
| 17 | Cable harness | 9598848 |
| 18 | Cable harness | 9598855 |
| 21 | Protection | 30526035 (replaces 9512229) |
| 23 | Screw | 8059578 (replaces 9778952) |
| 24 | Clip | 8267098 |
| 25 | Microphone | 9598574 |
| 26 | Cable harness | 9598566 |
| 27 | Cable harness | 9598756 |
| 28 | Electronic unit | 9598624 |
| 29 | Bracket | 9598798 |
| 30 | Screw | 7972219 |
| 33 | Screw | 7975758 |
| 34 | Cable harness | 9598814 |
