Saab 900 1986-1989 Speed control system

Group 3a Electrical, general, section 820

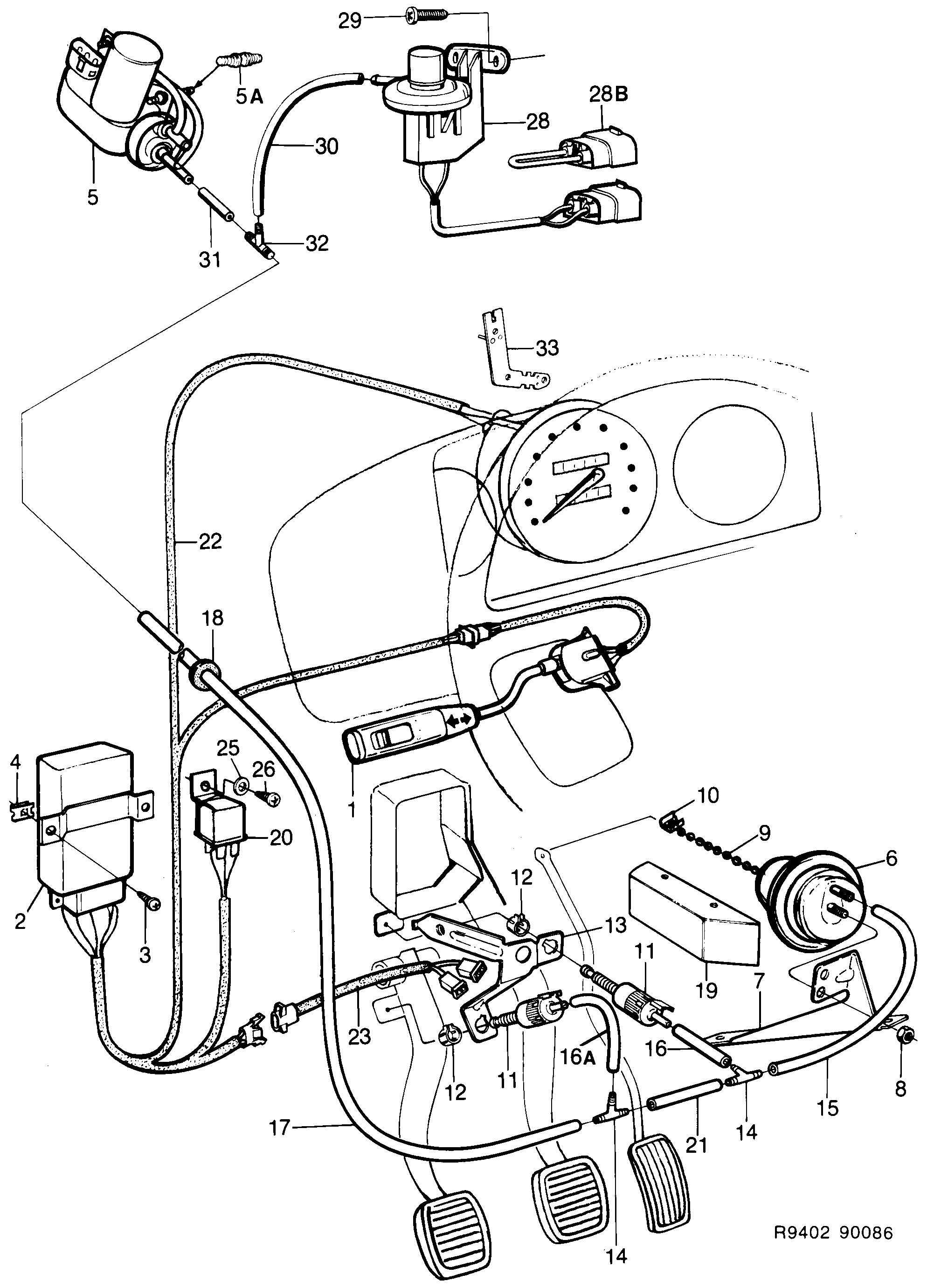

Saab 900 Speed control system diagram

Pos	Article	Part No.
2	Electronic unit	8587016
2	Electronic unit	9560905
3	Screw	92153219 (replaces 7922354)
3	Screw	7922818
4	Clip nut	92150164 (replaces 7972573)
5	Vacuum pump	8587024
5A	Suspension	9555194
6	Vacuum regulator	9512302
7	Bracket	8587040
7	Bracket	9568882
8	Nut	11900440 (replaces 8074288)
9	Chain	8587081
9	Chain	4061909
10	Clamp	8587099
11	Switch	9512294
11	Switch	4350443 (replaces 9522855)
12	Clip	9508813
12	Clip	8530917
13	Bracket	8598054
13	Bracket	9563149
13	Bracket	9564949
13	Bracket	4108759
14	Tube	8509002
15	Hose	9566423 (replaces 8590689)
15	Hose	9566415
16	Hose	8587354
16	Hose	9566381
17	Hose	8587362
17	Hose	8599458
17	Hose	9566548
18	Bushing	7961345
18	Bushing	7978042
19	Protection	8587255
20	Relay	8591455
20	Relay	9563099
21	Hose	8587347
21	Hose	9566399
22	Cable harness	9562158 (replaces 8589277)
22	Cable harness	9562141
22	Cable harness	9568742
22	Cable harness	9568536
22	Cable harness	9562158 (replaces 8591406)
22	Cable harness	9562158
22	Cable harness	9568759
23	Cable harness	8591992
23	Cable harness	9120239
23	Cable harness	8591984
23	Cable harness	9120247
25	Star washer	92152203 (replaces 7915556)
26	Screw	7922347
28	Vacuum switch	8598195
28	Vacuum switch	9564865
28B	Cable harness	8598526
30	Vaccum hose	9136243
30	Hose	9566423
32	Manifold	8587107
