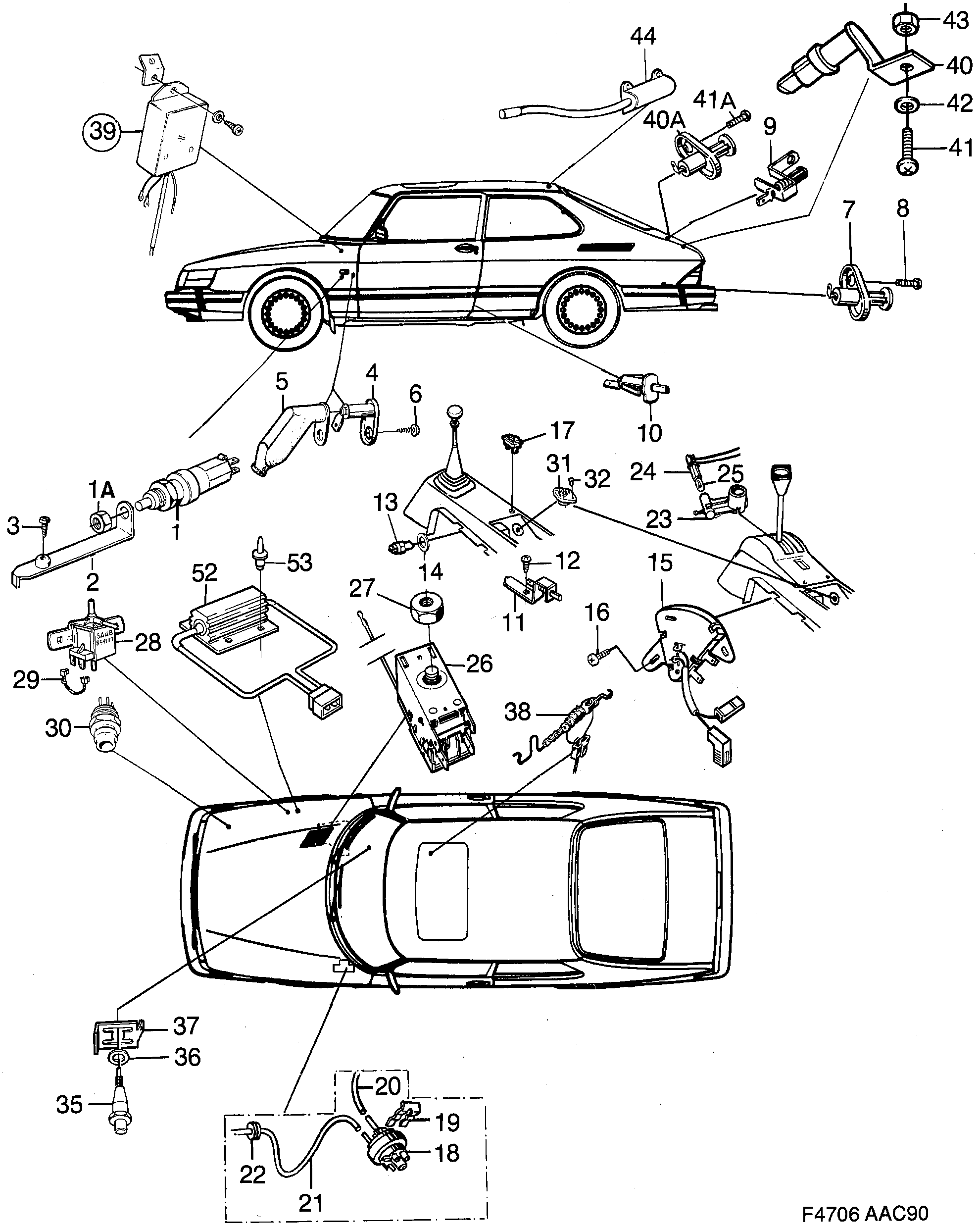

Group 3a Electrical, general, section 800
| Pos | Article | Part No. |
|---|---|---|
| 1 | Stop light switch | 8548802 |
| 1 | Stop light switch | 8577702 |
| 1A | Nut | 8566259 |
| 2 | Bracket | 9563149 |
| 2 | Bracket | 4428355 |
| 2 | Bracket | 4108742 |
| 2 | Bracket | 4428330 |
| 3 | Screw | 7528953 (replaces 7971757) |
| 4 | Switch | 8577793 |
| 5 | Protection | 8568883 |
| 6 | Plate screw | 7921885 |
| 7 | Switch | 8573107 |
| 9 | Switch | 8569220 |
| 10 | Door switch | 8522492 |
| 12 | Screw | 7922362 |
| 13 | Switch | 9509480 |
| 14 | Washer | 8311904 |
| 14 | Washer | 8030017 |
| 15 | Switch | 9556135 |
| 15 | Switch | 9556143 |
| 15 | Switch | 9564733 |
| 16 | Screw | 8059545 |
| 17 | Switch | 9559766 |
| 18 | Pressure monitor | 4113049 |
| 18 | Pressure monitor | 8594632 |
| 19 | Clip | 8565855 |
| 21 | Hose | 8533358 |
| 22 | Bushing | 7961337 |
| 23 | Retainer | 9560962 |
| 24 | Bulb socket | 8578775 |
| 25 | Bulb | 93190474 (replaces 8500613) |
| 26 | Thermo contact | 8593766 |
| 27 | Nut | 8566598 |
| 28 | Solenoid valve | 8591117 |
| 29 | Resistor | 9550468 |
| 30 | Thermo contact | 4086724 (replaces 8572331) |
| 31 | Switch | 8567505 |
| 32 | Screw | 7934300 |
| 35 | Switch | 8559296 |
| 36 | Washer | 9841958 |
| 37 | Clip | 8559304 |
| 38 | Switch | 8599516 |
| 38 | Switch | 9505652 |
| 39 | Warning flare | 8591109 |
| 40 | Switch | 9505694 |
| 41 | Screw | 7946742 |
| 41A | Screw | 92150118 (replaces 7970536) |
| 42 | Star washer | 92152203 (replaces 7915556) |
| 43 | Clip nut | 92150164 (replaces 7972573) |
| 44 | Switch | 6951594 |
| 52 | Resistor | 7485642 |
| 53 | Rivet | 7961659 |
