Saab 900 1986-1989 Central lock

Group 3a Electrical, general, section 760

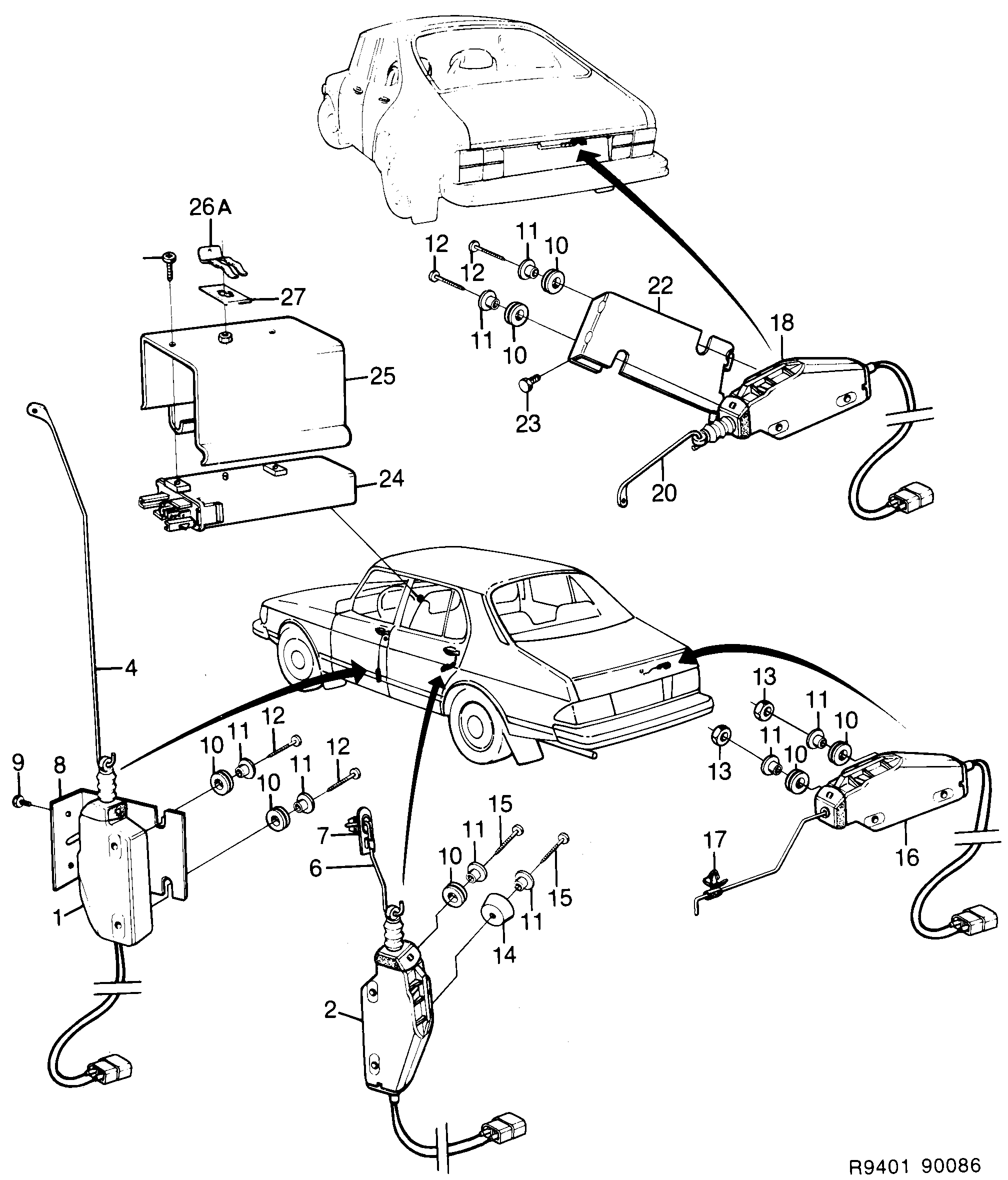

Saab 900 Central lock diagram

Pos	Article	Part No.
1	Control device	8591216
2	Electrical motor	8591224
4	Pull rod	8598245
4	Pull rod	8598252
6	Pull rod	8578221
7	Clip	8461675
8	Bracket	8598211
8	Bracket	9551151
8	Bracket	8598229
8	Bracket	8598237
9	Screw	8059537
10	Bushing	8573966
11	Sleeve	8573958
12	Screw	7973597
13	Nut	8074098
14	Sleeve	7085541
16	Electrical motor	8591232
17	Clip	8577710
20	Pull rod	8574501
22	Bracket	8575391
23	Screw	7972441
24	Electronic unit	8591208
24	Electronic unit	9529975
25	Attaching brace	8591414
25	Attaching brace	9564170
26	Screw	7971344
26A	Clip	8565855
27	Spacer washer	9564345
	Central lock	8547085
	Central lock	8547127
	Central lock	8547093
	Central lock	8547135
	Central lock	8547101
	Central lock	8547143
	Central lock	8547119
	Central lock	8547150
