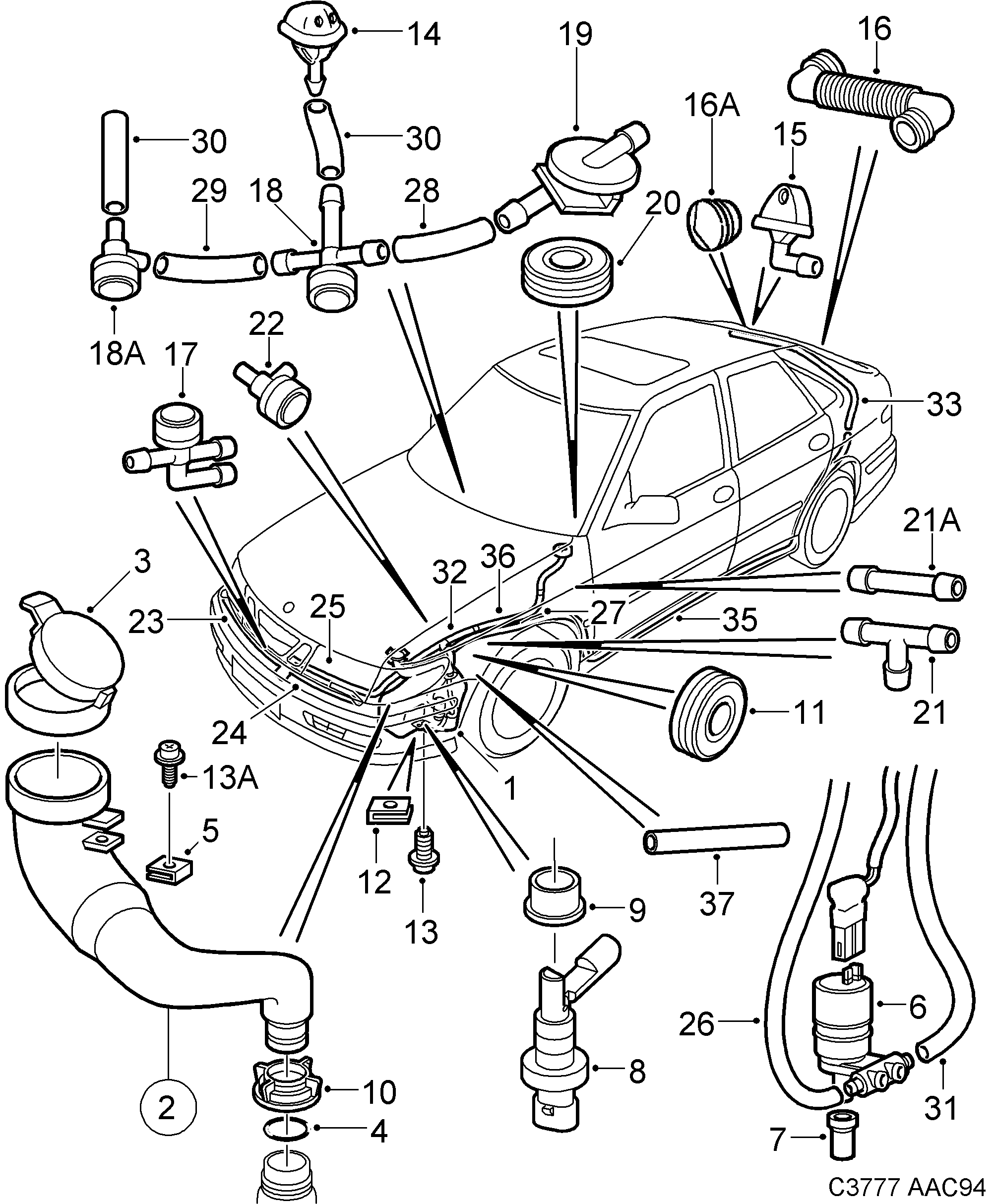

Group 3a Electrical, general, section 750
| Pos | Article | Part No. |
|---|---|---|
| 1 | Washer fluid reservoir | 4480364 |
| 1 | Washer fluid reservoir | 8549396 (replaces 4480356) |
| 1 | Washer fluid reservoir | 8549396 (replaces 4521589) |
| 1 | Washer fluid reservoir | 4787057 (replaces 4674859) |
| 1 | Washer fluid reservoir | 4787057 |
| 2 | Filler pipe | 4380804 |
| 3 | Cover | 4092359 |
| 4 | O-ring | 4380820 |
| 5 | Clip nut | 7968001 |
| 6 | Washer pump | 4480638 |
| 6 | Washer pump | 4320123 |
| 6 | Washer pump | 4480646 |
| 6 | Washer pump | 4674230 (replaces 4674214) |
| 6 | Washer pump | 4674230 |
| 7 | Bushing | 90347698 (replaces 4240727) |
| 7 | Bushing | 9507617 |
| 8 | Level sender | 4916961 (replaces 4240792) |
| 9 | Bushing | 4240800 |
| 10 | Plastic nut | 4240750 |
| 11 | Bushing | 90221243 (replaces 4401659) |
| 12 | Clip nut | 92150164 (replaces 7972573) |
| 12 | Clip nut | 7967995 |
| 13 | Screw | 7973001 |
| 13A | Hexagon screw | 92153149 (replaces 7983000) |
| 14 | Nozzle | 4373528 |
| 14 | Nozzle | 4673208 |
| 14 | Nozzle | 4480653 |
| 14 | Nozzle | 8504144 |
| 15 | Nozzle | 4373494 |
| 16 | Grommet | 4247565 |
| 16A | Plug | 8575599 |
| 17 | Valve | 5142740 (replaces 4480661) |
| 18 | Valve | 5142765 |
| 18A | Valve | 5142757 |
| 19 | Connector | 4094199 |
| 20 | Bushing | 7961345 |
| 21 | Tube | 4399002 |
| 21 | Tube | 4674800 |
| 21A | Tube | 4674792 |
| 22 | Valve | 5142757 (replaces 8573669) |
| 23 | Hose | 8548273 |
| 26 | Hose | 8549339 |
| 35 | Hose | 4373536 |
| 37 | Rubber hose | 4831053 |
