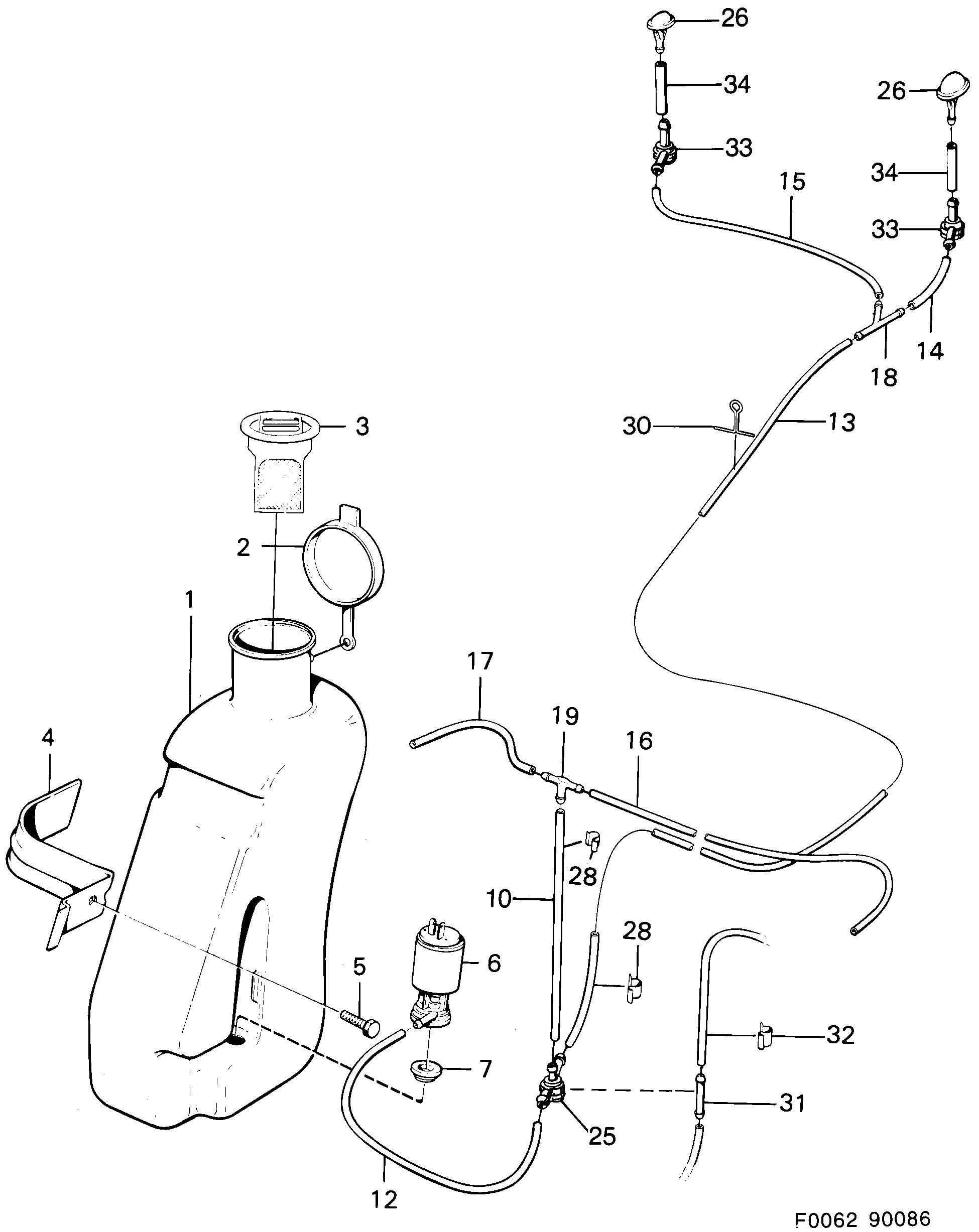

Group 3a Electrical, general, section 730
| Pos | Article | Part No. |
|---|---|---|
| 1 | Reservoir | 4061867 (replaces 8544744) |
| 1 | Washer fluid reservoir | 9557240 |
| 1 | Washer fluid reservoir | 9566902 |
| 2 | Cover | 8518557 |
| 3 | Filter | 9566332 (replaces 8560161) |
| 3 | Filter | 9566332 |
| 4 | Bracket | 8551137 |
| 4 | Bracket | 9557778 |
| 5 | Screw | 8019945 |
| 6 | Washer pump | 30525922 (replaces 9506379) |
| 7 | Rubber bushing | 9528795 (replaces 9512583) |
| 7 | Rubber bushing | 9528795 |
| 10 | Hose | 8533341 |
| 12 | Hose | 8533374 |
| 13 | Hose | 8560732 |
| 14 | Hose | 8552044 |
| 15 | Hose | 8560740 |
| 16 | Hose | 8544785 |
| 17 | Hose | 8544793 |
| 18 | Tube | 8509002 |
| 19 | T-pipe | 8544660 |
| 25 | Valve | 5142765 (replaces 8573651) |
| 25 | Valve | 5142765 (replaces 9569013) |
| 26 | Nozzle | 8504144 |
| 26 | Nozzle | 8504144 (replaces 8544728) |
| 28 | Clamp | 7156409 |
| 30 | Bracket | 8508392 |
| 31 | Junction pipe | 8508848 |
| 32 | Clip | 7933443 |
| 33 | Valve | 5142757 (replaces 8573669) |
| 34 | Hose | 8573677 |
